Monoblock Pump Spec Line Explained: What the Title Is Telling You

A monoblock pump is a centrifugal pump whose impeller sits directly on the motor shaft, so pump and motor form one compact unit that you bolt down and connect to pipes. Every listing squeezes its performance into a title such as "1 HP Single Phase Self Priming Monoblock Pump, 28 m Max. Head, 50 LPM". Read that line field by field and you can shortlist a pump before opening the datasheet. Other pump families are on the Water Pumps and Motors page.

ToolHaat lists 216 monoblock models, priced from roughly ₹2,500 to above ₹50,000, with Kirloskar, Crompton, CRI, V-Guard, CG Power and Havells among the brands. Most are single phase sets of 0.5 HP or 1 HP, and the middle of the price range sits near ₹7,700, though large sets cost much more. Prices change, so treat these as a guide and check the product page. This page covers the surface pump that stands above the water. A pump that goes down a borewell is a submersible pump.

HP and Phase: The Motor Half of the Name

HP tells you how strong the motor is, and phase tells you which supply it needs. A single phase set runs on a normal home connection, while three phase models need the three phase supply that most farms and factories have and most flats do not. One HP is about 0.75 kW, which helps when a listing quotes kW.

In the catalog, 0.5 HP and 1 HP dominate, followed by 1.5 HP, 2 HP and 3 HP, with 5 HP and 7.5 HP sets at the top. A bigger HP does not automatically mean more water at your tank, because the impeller and casing decide how that power becomes head and flow.

Two cautions before you order:

• Check the voltage range on the nameplate if your area has frequent low voltage. A motor that struggles to start draws more current and runs hot.
• Ask an electrician to confirm the starter and cable for the HP you choose.

Max Head and LPM: Two Numbers That Never Peak Together

Max head is how high the pump can push water when almost nothing is flowing, and the LPM figure is how much it moves when the head is low. A pump cannot give both at once, because flow falls as head rises along the performance curve.

That is the trap in many titles. A pump listed at 28 m max head and 50 LPM does not necessarily give 50 LPM at 28 m. Find the head-versus-flow table on the product page and read the flow at your own head. If your total head is 20 m, shortlist pumps that show your flow at 20 m or more, not the ones with the highest max head.

These conversions come up constantly:

Port Size: What 25 x 25 mm Really Means

The two numbers in "25 x 25 mm" are the suction port, where water enters, and the delivery port, where it leaves. A 25 mm port is roughly 1 inch and 50 mm roughly 2 inches. The range runs from 25 x 25 mm on small sets, through 50 x 40 mm and 50 x 50 mm, to 80 x 80 mm on a 3 HP model.

Water in a narrow pipe loses energy to friction, and the loss grows with pipe length and every bend. On a long run, a pipe wider than the port can help. When replacing an old set, match the new ports to the existing pipeline. Never fit a suction pipe thinner than the suction port. Port size is also a different thing from the pipe you buy, which is sold by inch or mm of its own, so confirm both before ordering fittings.

Self-Priming or Standard Centrifugal: Decide by Where the Pump Sits

Choose a self-priming monoblock when the pump stands above the water, and a standard centrifugal when it sits at or below the water level. Priming means filling the casing with water so the impeller can grip it. A standard centrifugal cannot pull water through air, so it needs a full suction line. A self-priming design keeps some water in the casing and clears the air itself after a first fill.

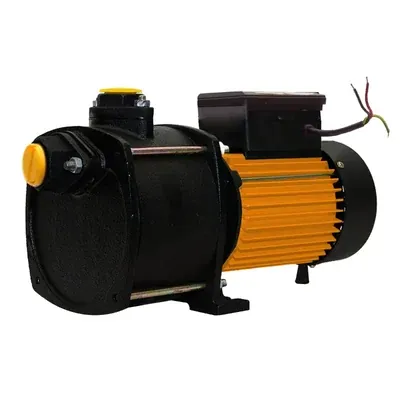

As a rule of thumb, ordinary surface pumps manage only a few metres of suction lift and self-priming ones somewhat more, and both lose lift as pipes get longer. Confirm the maker's figure rather than trusting the rule. When the source is deep, see monoblock jet pumps.

Sizing a Monoblock Pump for a Home Overhead Tank

Start with total head, then choose a flow, then check the curve. Suppose the pump stands beside a ground-level sump with the water about 2 m below it, and the roof tank is about 14 m above on a four-storey house. That is 16 m of lift. Add roughly 25 percent for friction and fittings and you plan for about 20 m.

Next, decide the flow. If you want a 1,000 litre tank filled in about 20 minutes, you need around 50 LPM. The 20 minutes is only an assumption, so change it to suit your tank and your patience. Then look for a pump that gives that flow at 20 m on its curve. The Kirloskar 1 HP Single Phase Self Priming Monoblock Pump lists 28 m max head and 50 LPM, so its curve at 20 m is worth checking.

If water reaches the taps but the shower is weak, that is a pressure problem, not a lifting problem. The booster pump page is the one for that.

Sizing for Farm, Garden and Site Work

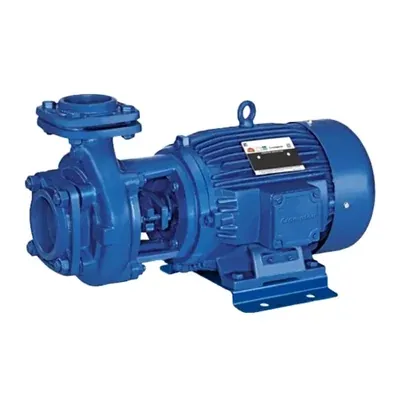

Farm and site jobs usually need more water at low head, so the flow figure matters more than max head. Filling a field channel from a pond or canal bank may need only about 10 m of head but hundreds of litres a minute. The Crompton 3 HP Centrifugal Monoblock Pump lists 50 ft max head and 1050 LPM on 80 x 80 mm ports. Those are the figures to compare for a job like that.

Check the supply before the brand. If the field has a three phase connection, choose from the larger sets; if it has only single phase supply, choose from the single phase models. For a dug well, an open well pump may be simpler, and irrigation fittings are under agricultural tools.

Installation Slips That Stop Water or Burn the Motor

Most "pump not working" problems come from the suction line or the supply, not a faulty pump. Run through this list before the first start:

• Fill the casing through the priming plug first. Even brief dry running can damage the mechanical seal.
• Keep the suction pipe airtight and rising towards the pump, with no high loop that traps air.
• Fit a foot valve with a strainer if the pump sits above the water. Foot valves and fittings are in pump accessories.
• Earth the motor body and shelter it from rain and direct sun.
• Do not run it against a closed valve for long, because the water inside heats up.

If the motor trips repeatedly, stop and call an electrician instead of resetting it again and again.

Reading Three Monoblock Pump Listings From the Range

Three listings at different scales show how the same line reads. Each row quotes only what the product name states.

For anything the name leaves out, such as the full curve, voltage range or seal type, open the product page and check the specification before ordering.
