V-Guard · SKU: thwpm469

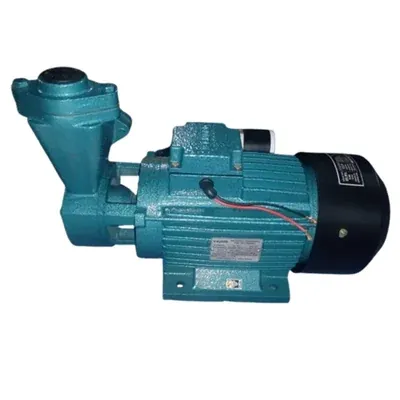

(VSPRC-TW200) 2 HP Single Phase Self Priming Monoblock Pump, 148 ft Head and 47 LPM Flow — V-Guard
In Stock
₹17,349₹24,578-29% OFF
GST 12%
Excl. GST
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | V-Guard |
| Power | 2 hp |
| Weight (Approx.) | 20 kg |
| Flow Rate | 47 lpm |
| Head | 45 meter |
| Model No | VSPRC-TW200 |
| Voltage range | 260-180 V |
| Frequency | 50 Hz |
| Rated Speed | 2800 RPM |
| Insulation | Class B |
| Capacitor Value | 50 µfD, 440V |
| Max. Current | 12.5 A |
| Type of Duty | S1 |
| Total Head | 45 m (148 feet) |
| Discharge @ 45 m | 2800LPH (47 LPM) |
| Head Range | 20/60 m |
| Pipe Size | 32 X 25 mm |
| Self-priming time | 180 SEC at 3M |
| Motor Body, Bracket, casing, End cover & Flanges material | CI-FG200 |
| Impeller Material | Forged Brass |
| Rotor Shaft | SS-410 |
| Coating in CI components | Hammertone paint |
| Cooling Fan | Poly Propylene |
| Fan Cover | MS Powder coated. |
| Copper wire (Main winding) | 20 SWG |
| Copper wire (Aux. winding) | 22+22.5 SWG |
| Type of Pump side sealing | Mechanical Seal (19F) |
| Bearing | Ball Bearings 6204 2RZ at both side |
| Main Winding Resistance | 1.0-1.5 Ω |
| Auxiliary Winding Resistance | 2.0-3.0 Ω |
| T.O.P | (160â°C, 8A )*2 No's |
⚖️
