Kirloskar · SKU: thwpm963

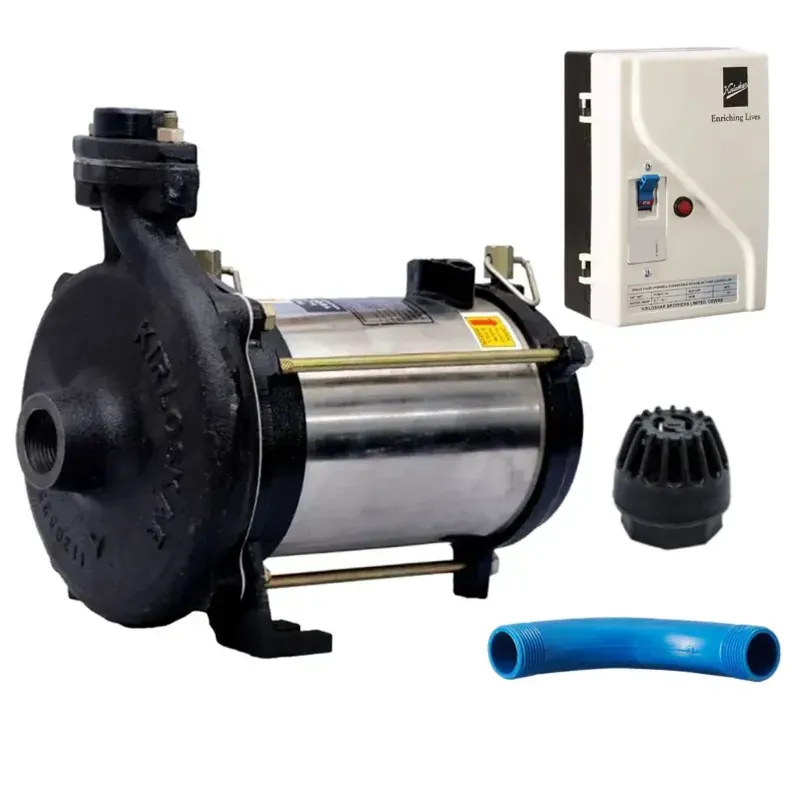

Kirloskar 1.5 HP (KOSi-1.522 CP) Single Phase Openwell Submersible Pump With Control Panel
In Stock
₹22,274₹33,395-33% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Kirloskar |
| Power | 1.5 hp |
| Weight (Approx.) | 25 kg |
| Flow Rate | 378 lpm |
| Head | 22 meter |
| Model No. | KOSi-1.522 CP |
| Product Type | Openwell Submersible Pump |
| Power Source | Corded Electric |
| Wattage | 1.1 kW |
| Power Supply | 210V, 50 Hz, AC Power Supply |
| Electricity Connection | Single Phase |
| No load Speed | 2800 RPM |
| Head Range | 26 to 72 feet (8 - 22 meter) |
| Pipe Size (Suction x Delivery) | 50 x 40 mm |
| Discharge Rate | 378 - 90 LPM (22680-5400 LPH) |
| Motor Body | Stainless Steel |
| Shaft Material | Stainless Steel |
| Impeller | Cast Iron / Noryl |
| Delivery Casting | Cast Iron |
| Insulation Class | B-Class |
| Protection | IP 68 |
| Wide Voltage Design | The motor is designed to withstand wide voltage fluctuations from 160 to 240 volts and reduces motor burning in low voltage. |
| Lightweight And Compact Design | Constructed with special grade engineering materials, compact designs for ease of handling and installation. |
| Dynamically Balanced Rotating Parts | Minimum vibrations protect components from damages during the operations, consistent performance as concentricity is maintained. |
| Replaceable Wearing Parts | All wearing parts within the pumps are easily accessible and replaceable which provides ease of maintenance thereby extending the life of the pump. |
| Easy Maintainable Designs | Easy maintainable design and better interchangeability of components so that pump can be serviced even at remote locations by semi-skilled technicians |
| CED-Cathodic Electro Deposition | CED is the latest coating technology for corrosion resistance with uniform coating, provides 5 times more protection over conventional painting, resulting in longer life. All major Cl parts of Kirloskar pumps coming in contact with the water are CED coated |
| High Efficiency And Energy Saving Design | Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings. |
| Advanced Water Cooled Motors Designs | The motor is filled with potable water, protects from overheating and facilitates smoother and trouble free operation for the years. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Kirloskar 1.5 HP (KOSi-1.522 CP) Single Phase Openwell Submersible Pump With Control Panel
Kirloskar 1.5 HP (KOSi-1.522 CP) Single Phase Openwell Submersible Pump With Control Panel is listed under Open Well Pump in Water Pumps and Motors on ToolHaat, supplied by Kirloskar. Key specifications include power 1.5 hp, weight (approx.) 25 kg, flow rate 378 lpm, head 22 meter, model no. KOSi-1.522 CP. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
Kirloskar 1.5 HP (KOSi-1.522 CP) Single Phase Openwell Submersible Pump With Control Panel specifications
| Power | 1.5 hp |
|---|---|
| Weight (Approx.) | 25 kg |
| Flow Rate | 378 lpm |
| Head | 22 meter |
| Model No. | KOSi-1.522 CP |
| Product Type | Openwell Submersible Pump |
| Power Source | Corded Electric |
| Wattage | 1.1 kW |
| Power Supply | 210V, 50 Hz, AC Power Supply |
| Electricity Connection | Single Phase |
| No load Speed | 2800 RPM |
| Head Range | 26 to 72 feet (8 - 22 meter) |
FAQs related to Kirloskar 1.5 HP (KOSi-1.522 CP) Single Phase Openwell Submersible Pump With Control Panel
What capacity or specification of Kirloskar 1.5 HP (KOSi-1.522 CP) Single Phase Openwell Submersible Pump With Control Panel should I choose?
+
The right Kirloskar 1.5 HP (KOSi-1.522 CP) Single Phase Openwell Submersible Pump With Control Panel depends on your required flow rate, head (lift height), and power source — each listing specifies these details. For help matching a pump to your specific application, contact ToolHaat support or submit an RFQ with your requirements.
Does ToolHaat offer installation guidance for Kirloskar 1.5 HP (KOSi-1.522 CP) Single Phase Openwell Submersible Pump With Control Panel?
+
Installation requirements vary by Kirloskar 1.5 HP (KOSi-1.522 CP) Single Phase Openwell Submersible Pump With Control Panel model — check the product listing for included documentation. For larger installations, our sales team can help connect you with the vendor for on-site guidance where available.
Does Kirloskar 1.5 HP (KOSi-1.522 CP) Single Phase Openwell Submersible Pump With Control Panel come with a manufacturer warranty?
+
Warranty coverage for Kirloskar 1.5 HP (KOSi-1.522 CP) Single Phase Openwell Submersible Pump With Control Panel varies by brand and is listed on the product page. ToolHaat support can help connect you with the vendor for warranty claims or servicing after your purchase.
Are spare parts and accessories for Kirloskar 1.5 HP (KOSi-1.522 CP) Single Phase Openwell Submersible Pump With Control Panel available separately?
+
Yes — related accessory subcategories on ToolHaat list compatible spares and fittings for Kirloskar 1.5 HP (KOSi-1.522 CP) Single Phase Openwell Submersible Pump With Control Panel, so replacement parts can be sourced without needing to buy a full new unit.
Is a GST invoice provided for Kirloskar 1.5 HP (KOSi-1.522 CP) Single Phase Openwell Submersible Pump With Control Panel purchases?
+
Yes, every Kirloskar 1.5 HP (KOSi-1.522 CP) Single Phase Openwell Submersible Pump With Control Panel order generates a GST invoice automatically, suitable for input tax credit claims and standard business procurement records.
