Kirloskar · SKU: thwpm556

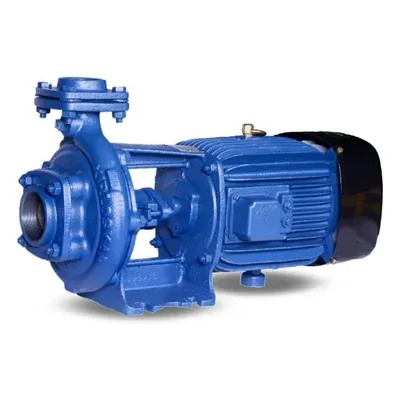

Kirloskar 5 HP Three Phase Centrifugal Monoblock Pump, 858 LPM, 80 x 65 mm (KDS 527)
In Stock
₹40,589₹54,600-26% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Kirloskar |
| Power | 5 hp |
| Weight (Approx.) | 63.00 kg |
| Flow Rate | 858 lpm |
| Head | 28 meter |
| Model No. | KDS 527 |
| Product Type | Monoblock Pump |
| Motor Power | 3.7 kW |
| Electricity Connection | Three Phase |
| Head Range | 16 to 28 Meter (52 to 91 Feet) |
| Discharge Rate | 858 to 384 LPM (14.3 to 6.4 LPS) |
| Protection | IP 44 |
| Insulation | B Class |
| Pipe Size (Suction x Delivery) | 80 x 65 mm |
| Impeller | Cast Iron |
| Delivery Casing | Cast Iron |
| Motor Body | Cast Iron |
| Pump Shaft | Carbon Steel |
| Sealing | Gland Packed |
| Flatter Efficiency Curve | Minimum variations in efficiency during entire operating range increases the utility of pumpset for variable conditions. |
| Wide Voltage Design | The motor is designed to withstand wide voltage fluctuations from 350 to 440 volts and reduces motor burning in case of low voltage. |
| Designed to Prevent Overloading | Lesser chances of motor burning as the motor does not get overloaded even if the pump is operated at a head lower than recommended, thus ensuring substantial cost savings due to low maintenance and breakdown. |
| Replaceable Wearing Parts | All wearing parts within the pumps are easily accessible and replaceable which facilitates ease of maintenance thereby extending the life of the pump. |
| Dynamically Balanced Rotating Parts | Minimum vibrations protect components from damages during the operations, thus ensuring consistent performance as concentricity is maintained. |
| CED – Cathodic Electro Deposition | CED is the latest coating technology for corrosion resistance with uniform coating. It provides 5 times more protection over conventional painting, resulting in longer life. All major CI parts of Kirloskar pumps coming in contact with the water are CED coated. |
| Automatic Air Release | Automatically releases air when the pump starts which ensures swifter and smoother operations, thus eliminating the necessity of operating air release cock and ensures swifter and smoother operations. |
| High Efficiency And Energy Saving Design | Innovative design manufactured at state-of-the-art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Kirloskar 5 HP Three Phase Centrifugal Monoblock Pump, 858 LPM, 80 x 65 mm (KDS 527)
Kirloskar 5 HP Three Phase Centrifugal Monoblock Pump, 858 LPM, 80 x 65 mm (KDS 527) is listed under Monoblock Pump in Water Pumps and Motors on ToolHaat, supplied by Kirloskar. Key specifications include power 5 hp, weight (approx.) 63.00 kg, flow rate 858 lpm, head 28 meter, model no. KDS 527. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
Kirloskar 5 HP Three Phase Centrifugal Monoblock Pump, 858 LPM, 80 x 65 mm (KDS 527) specifications
| Power | 5 hp |
|---|---|
| Weight (Approx.) | 63.00 kg |
| Flow Rate | 858 lpm |
| Head | 28 meter |
| Model No. | KDS 527 |
| Product Type | Monoblock Pump |
| Motor Power | 3.7 kW |
| Electricity Connection | Three Phase |
| Head Range | 16 to 28 Meter (52 to 91 Feet) |
| Discharge Rate | 858 to 384 LPM (14.3 to 6.4 LPS) |
| Protection | IP 44 |
| Insulation | B Class |
FAQs related to Kirloskar 5 HP Three Phase Centrifugal Monoblock Pump, 858 LPM, 80 x 65 mm (KDS 527)
Are spare parts and accessories for Kirloskar 5 HP Three Phase Centrifugal Monoblock Pump, 858 LPM, 80 x 65 mm (KDS 527) available separately?
+
Yes — related accessory subcategories on ToolHaat list compatible spares and fittings for Kirloskar 5 HP Three Phase Centrifugal Monoblock Pump, 858 LPM, 80 x 65 mm (KDS 527), so replacement parts can be sourced without needing to buy a full new unit.
Does ToolHaat offer installation guidance for Kirloskar 5 HP Three Phase Centrifugal Monoblock Pump, 858 LPM, 80 x 65 mm (KDS 527)?
+
Installation requirements vary by Kirloskar 5 HP Three Phase Centrifugal Monoblock Pump, 858 LPM, 80 x 65 mm (KDS 527) model — check the product listing for included documentation. For larger installations, our sales team can help connect you with the vendor for on-site guidance where available.
Is a GST invoice provided for Kirloskar 5 HP Three Phase Centrifugal Monoblock Pump, 858 LPM, 80 x 65 mm (KDS 527) purchases?
+
Yes, every Kirloskar 5 HP Three Phase Centrifugal Monoblock Pump, 858 LPM, 80 x 65 mm (KDS 527) order generates a GST invoice automatically, suitable for input tax credit claims and standard business procurement records.
What if Kirloskar 5 HP Three Phase Centrifugal Monoblock Pump, 858 LPM, 80 x 65 mm (KDS 527) arrives with a manufacturing defect?
+
Contact ToolHaat support with your order ID if Kirloskar 5 HP Three Phase Centrifugal Monoblock Pump, 858 LPM, 80 x 65 mm (KDS 527) shows a manufacturing defect on arrival. Replacement or refund is handled per our returns policy in coordination with the listing vendor.
How is Kirloskar 5 HP Three Phase Centrifugal Monoblock Pump, 858 LPM, 80 x 65 mm (KDS 527) packaged and delivered to avoid transit damage?
+
Kirloskar 5 HP Three Phase Centrifugal Monoblock Pump, 858 LPM, 80 x 65 mm (KDS 527) is shipped in protective packaging designed for the product’s weight and components. Delivery timelines are shown at checkout based on your location — larger installations may need coordinated delivery scheduling, which our sales team can help arrange.
