Generic · SKU: thwpm646

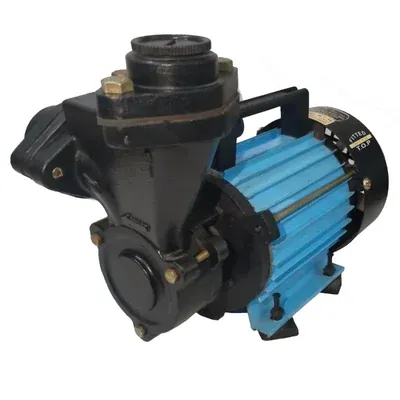

Heavy Duty 0.5 HP Single Phase ISI Marked Self Priming Monoblock Pump, Copper Winding, 80 ft Max Head, 18 Months Warranty
In Stock
₹5,593₹6,946-19% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Generic |
| Power | 0.5 hp |
| Weight (Approx.) | 8 kg |
| Flow Rate | 36 lpm |
| Head | 24 meter |
| Product Type | Self Priming Monoblock Pump |
| Rated Voltage | 220 V |
| Rated Speed | 2750 RPM |
| No Of Phase | Single |
| Shaft Type | Steel |
| Winding Material | Copper |
| Bearing | SKF |
| Seal | 12 FG (AVON brand) |
| Impeller Size | Forgeing material |
| Discharge | 2200 LPH |
| Total Head | 24 Meter (80 Feet) |
| Class Of Insulation | "B" |
| Certification | ISI Marked |
| Design | The self-priming monoblock water pump typically has a compact and integrated design, with the motor and pump assembly combined into a single unit. This design simplifies installation and makes the pump more portable. |
| Self-Priming Capability | One of the main advantages of this type of pump is its self-priming capability. It can create a partial vacuum within the pump casing and suction line, allowing it to automatically draw water from a source (such as a well, reservoir, or tank) without the need for manual priming. This feature eliminates the need for filling the pump with water before starting, saving time and effort. |
| Priming Mechanism | The self-priming mechanism of the pump typically involves the presence of a built-in impeller or centrifugal pump at the initial stage. This impeller helps to create the necessary vacuum by expelling air and filling the casing and suction line with water. Once the pump is primed, it can continue to operate efficiently and draw water as needed. |
| Water Transfer | The primary function of a self-priming monoblock water pump is to transfer water from one location to another. It is commonly used for applications such as water supply, irrigation, drainage, and circulation in various residential, commercial, and agricultural settings. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Heavy Duty 0.5 HP Single Phase ISI Marked Self Priming Monoblock Pump, Copper Winding, 80 ft Max Head, 18 Months Warranty
Heavy Duty 0.5 HP Single Phase ISI Marked Self Priming Monoblock Pump, Copper Winding, 80 ft Max Head, 18 Months Warranty is listed under Monoblock Pump in Water Pumps and Motors on ToolHaat. Key specifications include power 0.5 hp, weight (approx.) 8 kg, flow rate 36 lpm, head 24 meter, product type Self Priming Monoblock Pump. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
Heavy Duty 0.5 HP Single Phase ISI Marked Self Priming Monoblock Pump, Copper Winding, 80 ft Max Head, 18 Months Warranty specifications
| Power | 0.5 hp |
|---|---|
| Weight (Approx.) | 8 kg |
| Flow Rate | 36 lpm |
| Head | 24 meter |
| Product Type | Self Priming Monoblock Pump |
| Rated Voltage | 220 V |
| Rated Speed | 2750 RPM |
| No Of Phase | Single |
| Shaft Type | Steel |
| Winding Material | Copper |
| Bearing | SKF |
| Seal | 12 FG (AVON brand) |
