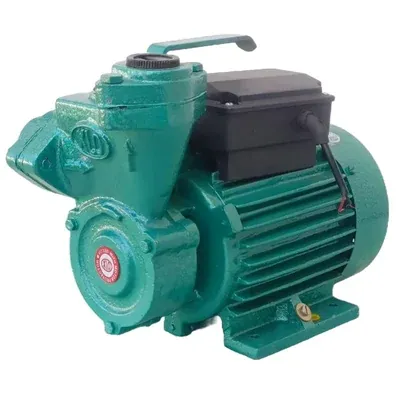

XLO 1 HP 1Ph Self Priming Monoblock Pump With 100% Copper Winding, 50 m Head, 3700 LPH, 25 x 25 mm (PLATINUM)
| Brand | XLO |
| Power | 1 hp |
| Weight (Approx.) | 13.5 kg |
| Flow Rate | 61 lpm |
| Head | 50 meter |
| Model No | PLATINUM |
| Product Name | Self Priming Monoblock Pump |
| Wattage | 0.75 kW |
| Electricity Connection | Single Phase |
| Rated Voltage | 230 Volt ± 6%, 50 Hz |
| Speed | 3000 RPM |
| Pipe Size (Suction x Delivery) | 25x25 mm |
| Head Range | 6 to 50 Meter (19 to 164 Feet) |
| Discharge Range | 3700 to 400 LPH (61 to 6 LPM) |
| Winding Material | Copper |
| Stamping (I) (Stator) | It is of CRNO material with grade M_45C with lower losses |
About XLO 1 HP 1Ph Self Priming Monoblock Pump With 100% Copper Winding, 50 m Head, 3700 LPH, 25 x 25 mm (PLATINUM)
It is made of graded casting FG 200 of IS:210 to withstand both working pressure as well as sudden Impact. It is made of Bronze Grade LTB2 of IS: 318 to withstand wear and tear, having vanes machined to smooth finish for higher efficiency. The shaft is made from alloy steel, accurately finished to microns to ensure Long Life of the bearing and Pump. Rotary Seal of Stainless steel spring, with fine lapped surface is used. It is made of graded casting of high tensile strength also available in alm, extruded body and is totally enclosed fan cooled type. Cooling ribs are provided both on Cl and alm. Body to facilitate heat dissipation thus improving motor life. The rotor is die cast and dynamically balanced for vibration free noiseless running and long bearing life. High speed or equivalent Imported bearings are used and mounted on shaft by press for smooth running, low noise and loge life. The monoblock pump is fitted with specially designed spring loaded non-return valve, which does not allow water to return in the suction line and helps in priming when pump is switched on. Motor is of capacitor Start & Run design. No centrifugal switch is required. Motors are manufactured with insulation class 'B' Modified polyester enameled Copper wire which is tested as per IS: 13730 is used for winding of motors. Additionally high quality and mechanical strength material is used for slot insulation. Stator Varnished in vacuum empragnated plants. Monoblock pump is packing in corrugated box with polythene lamination with durable adjustable packing inside for prevent the to and for in transportation. Efficient after sale service is provided through dealer network and all spare parts are ready made available.
XLO 1 HP 1Ph Self Priming Monoblock Pump With 100% Copper Winding, 50 m Head, 3700 LPH, 25 x 25 mm (PLATINUM) specifications
| Power | 1 hp |
|---|---|
| Weight (Approx.) | 13.5 kg |
| Flow Rate | 61 lpm |
| Head | 50 meter |
| Model No | PLATINUM |
| Product Name | Self Priming Monoblock Pump |
| Wattage | 0.75 kW |
| Electricity Connection | Single Phase |
| Rated Voltage | 230 Volt ± 6%, 50 Hz |
| Speed | 3000 RPM |
| Pipe Size (Suction x Delivery) | 25x25 mm |
| Head Range | 6 to 50 Meter (19 to 164 Feet) |
FAQs related to XLO 1 HP 1Ph Self Priming Monoblock Pump With 100% Copper Winding, 50 m Head, 3700 LPH, 25 x 25 mm (PLATINUM)
What if XLO 1 HP 1Ph Self Priming Monoblock Pump With 100% Copper Winding, 50 m Head, 3700 LPH, 25 x 25 mm (PLATINUM) arrives with a manufacturing defect?
+
Contact ToolHaat support with your order ID if XLO 1 HP 1Ph Self Priming Monoblock Pump With 100% Copper Winding, 50 m Head, 3700 LPH, 25 x 25 mm (PLATINUM) shows a manufacturing defect on arrival. Replacement or refund is handled per our returns policy in coordination with the listing vendor.
Can contractors or dealers set up recurring bulk orders for XLO 1 HP 1Ph Self Priming Monoblock Pump With 100% Copper Winding, 50 m Head, 3700 LPH, 25 x 25 mm (PLATINUM)?
+
Yes — contractors and dealers regularly use ToolHaat for recurring XLO 1 HP 1Ph Self Priming Monoblock Pump With 100% Copper Winding, 50 m Head, 3700 LPH, 25 x 25 mm (PLATINUM) procurement. Contact our sales team to set up a standing order arrangement with consistent bulk pricing.
How is XLO 1 HP 1Ph Self Priming Monoblock Pump With 100% Copper Winding, 50 m Head, 3700 LPH, 25 x 25 mm (PLATINUM) packaged and delivered to avoid transit damage?
+
XLO 1 HP 1Ph Self Priming Monoblock Pump With 100% Copper Winding, 50 m Head, 3700 LPH, 25 x 25 mm (PLATINUM) is shipped in protective packaging designed for the product’s weight and components. Delivery timelines are shown at checkout based on your location — larger installations may need coordinated delivery scheduling, which our sales team can help arrange.
Can I compare multiple brands of XLO 1 HP 1Ph Self Priming Monoblock Pump With 100% Copper Winding, 50 m Head, 3700 LPH, 25 x 25 mm (PLATINUM) before purchasing?
+
Yes — ToolHaat lists XLO 1 HP 1Ph Self Priming Monoblock Pump With 100% Copper Winding, 50 m Head, 3700 LPH, 25 x 25 mm (PLATINUM) from multiple verified vendors at different price points and specifications, letting you compare motor power, material, and price before a bulk purchase decision.
Can I get bulk pricing for XLO 1 HP 1Ph Self Priming Monoblock Pump With 100% Copper Winding, 50 m Head, 3700 LPH, 25 x 25 mm (PLATINUM) if I need multiple units?
+
Yes — XLO 1 HP 1Ph Self Priming Monoblock Pump With 100% Copper Winding, 50 m Head, 3700 LPH, 25 x 25 mm (PLATINUM) uses tiered bulk pricing on ToolHaat, with unit cost decreasing at higher order quantities. For distributor or contractor-level volumes, use the RFQ feature for a dedicated quote.
