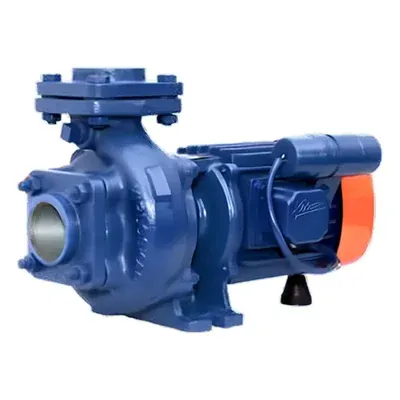

Kirloskar 1 HP Single Phase Centrifugal Monoblock Pump, 22 m Max. Head, 9360 LPH, 32 x 25 mm (KDS 123)

About Kirloskar 1 HP Single Phase Centrifugal Monoblock Pump, 22 m Max. Head, 9360 LPH, 32 x 25 mm (KDS 123)

{"Brand":"Kirloskar","Power":"1 hp","Weight (Approx.)":"25 kg","Flow Rate":"156 lpm","Head":"22 meter","Model No.":"KDS 123","Product Type":"Centrifugal Monoblock Pump","Motor Power":"0.75 kW","Electricity Connection":"Single Phase","Head Range":"16 to 22 Meter (52 to 72 Feet)","Discharge Rate":"9360 to 2880 LPH (156 to 48 LPM)","Pipe Size (Suction X Delivery)":"32 X 25 mm","Impeller":"CAST IRON","Delivery Casing":"Cast Iron","Motor Body":"Cast Iron","Pump Shaft":"Stainless Steel","Sealing":"Mechanical Seal","Wide Voltage Design":"The motor is designed to withstand wide voltage variation which reduces motor burning in case of low/high voltage","Replaceable Wearing Parts":"All wearing parts within the pumps are easily accessible and replaceable which facilitates ease of maintenance thereby extending the life of the pump","TOP - Thermal Overload Protector":"The pump set features a Thermal Overload Protector that protects the motor from overloading, shielding of the motor and associated circuit from the effects of fault current","CED "“ Cathodic Electro Deposition":"CED is the latest coating technology for corrosion resistance with uniform coating. It provides 5 times more protection over conventional painting, resulting in longer life. All major CI parts of Kirloskar pumps coming in contact with the water are CED coated","Automatic Air Release":"Automatically releases air when the pump starts ensuring swifter and smoother operations, thus eliminating the necessity of operating air release cock","High Efficiency and Energy Saving Design":"Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings"}

Kirloskar 1 HP Single Phase Centrifugal Monoblock Pump, 22 m Max. Head, 9360 LPH, 32 x 25 mm (KDS 123) specifications
