SONEE-DX · SKU: thwpm409

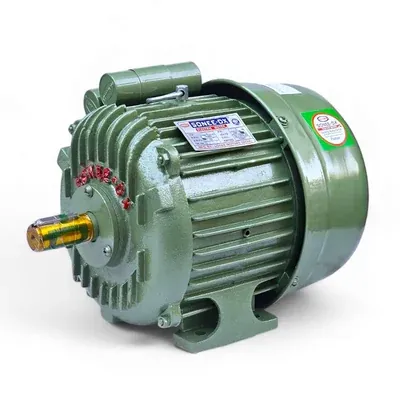

SONEE-DX 2 HP Single Phase 4 Pole 1440 RPM Foot Mounted AC Induction Motor, Cast Iron Body (GOLD)
In Stock
₹9,404₹14,099-33% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | SONEE-DX |
| Power | 2 hp |
| Weight (Approx.) | 29 kg |
| Winding Material | Copper |
| Model | GOLD |
| Certification | ISO Certified |
| Wattage | 1.5 kW |
| Rated Voltage | 220 to 240 Volt, 50 Hz |
| Electricity Connection | Single Phase |
| Rated Current | 12 Amp |
| Number of Pole | 4 |
| Shaft Size | 28 mm (3" pulley will be suitable for this motor) |
| Frame Size | 115mm(S) |
| Insulation Class | F |
| Speed | 1440 RPM |
| Body | Cast Iron |
| Capacitor Run Value | 20 MFD |
| Capacitor Start Value | 80-100 MFD (2 Quantity) |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About SONEE-DX 2 HP Single Phase 4 Pole 1440 RPM Foot Mounted AC Induction Motor, Cast Iron Body (GOLD)
SONEE-DX 2 HP Single Phase 4 Pole 1440 RPM Foot Mounted AC Induction Motor, Cast Iron Body (GOLD) is listed under Water Motor in Water Pumps and Motors on ToolHaat, supplied by SONEE-DX. Key specifications include power 2 hp, weight (approx.) 29 kg, winding material Copper, certification ISO Certified, wattage 1.5 kW. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
SONEE-DX 2 HP Single Phase 4 Pole 1440 RPM Foot Mounted AC Induction Motor, Cast Iron Body (GOLD) specifications
| Power | 2 hp |
|---|---|
| Weight (Approx.) | 29 kg |
| Winding Material | Copper |
| Certification | ISO Certified |
| Wattage | 1.5 kW |
| Rated Voltage | 220 to 240 Volt, 50 Hz |
| Electricity Connection | Single Phase |
| Rated Current | 12 Amp |
| Number of Pole | 4 |
| Shaft Size | 28 mm (3" pulley will be suitable for this motor) |
| Frame Size | 115mm(S) |
| Insulation Class | F |
FAQs related to SONEE-DX 2 HP Single Phase 4 Pole 1440 RPM Foot Mounted AC Induction Motor, Cast Iron Body (GOLD)
Does SONEE-DX 2 HP Single Phase 4 Pole 1440 RPM Foot Mounted AC Induction Motor, Cast Iron Body (GOLD) come with a manufacturer warranty?
+
Warranty coverage for SONEE-DX 2 HP Single Phase 4 Pole 1440 RPM Foot Mounted AC Induction Motor, Cast Iron Body (GOLD) varies by brand and is listed on the product page. ToolHaat support can help connect you with the vendor for warranty claims or servicing after your purchase.
Does ToolHaat offer installation guidance for SONEE-DX 2 HP Single Phase 4 Pole 1440 RPM Foot Mounted AC Induction Motor, Cast Iron Body (GOLD)?
+
Installation requirements vary by SONEE-DX 2 HP Single Phase 4 Pole 1440 RPM Foot Mounted AC Induction Motor, Cast Iron Body (GOLD) model — check the product listing for included documentation. For larger installations, our sales team can help connect you with the vendor for on-site guidance where available.
What capacity or specification of SONEE-DX 2 HP Single Phase 4 Pole 1440 RPM Foot Mounted AC Induction Motor, Cast Iron Body (GOLD) should I choose?
+
The right SONEE-DX 2 HP Single Phase 4 Pole 1440 RPM Foot Mounted AC Induction Motor, Cast Iron Body (GOLD) depends on your required flow rate, head (lift height), and power source — each listing specifies these details. For help matching a pump to your specific application, contact ToolHaat support or submit an RFQ with your requirements.
What if SONEE-DX 2 HP Single Phase 4 Pole 1440 RPM Foot Mounted AC Induction Motor, Cast Iron Body (GOLD) arrives with a manufacturing defect?
+
Contact ToolHaat support with your order ID if SONEE-DX 2 HP Single Phase 4 Pole 1440 RPM Foot Mounted AC Induction Motor, Cast Iron Body (GOLD) shows a manufacturing defect on arrival. Replacement or refund is handled per our returns policy in coordination with the listing vendor.
Can I get bulk pricing for SONEE-DX 2 HP Single Phase 4 Pole 1440 RPM Foot Mounted AC Induction Motor, Cast Iron Body (GOLD) if I need multiple units?
+
Yes — SONEE-DX 2 HP Single Phase 4 Pole 1440 RPM Foot Mounted AC Induction Motor, Cast Iron Body (GOLD) uses tiered bulk pricing on ToolHaat, with unit cost decreasing at higher order quantities. For distributor or contractor-level volumes, use the RFQ feature for a dedicated quote.
