Generic · SKU: thwpm610

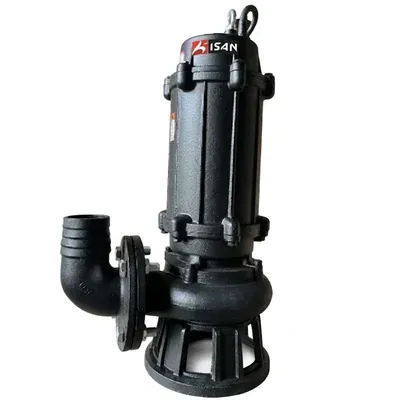

Kisan 5 HP 80 mm Non-Clog Vortex Sewage Submersible Wastewater Drainage Pump KSSWP-500T
In Stock
₹42,570₹58,100-27% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Generic |
| Weight (Approx.) | 48 kg |
| Power | 5 hp |
| Flow Rate | 850 lpm |
| Head | 22 meter |
| Pump Type | Sewage Submersible Pump |
| Power Supply | 380 V, 50 Hz, Three Phase (3Ø) |
| Motor Type | Oil-Filled Induction Motor |
| Rated Speed | 2800 RPM |
| Outlet Size | 80 mm (3 Inch) |
| Solid Handling Capacity | 35 mm |
| Insulation Class | Class F |
| Protection Class | IP68 |
| Pump Body Material | Cast Iron |
| Impeller Material | Cast Iron, Non-Clog Vortex Type |
| Shaft Material | Stainless Steel |
| Mechanical Seal | Double Mechanical Seal (Silicon Carbide / Silicon Carbide) |
| Rated Frequency | 50 Hz |
| Voltage Range | 380 – 415 V |
| Maximum Liquid Temperature | 40°C |
| Cable Length | 10 m (Approx.) |
| Duty Type | Continuous Duty (S1) |
| Cooling System | Motor Oil Cooling |
| Non-Clog Vortex Impeller | Cast iron vortex design efficiently passes large solids up to 35 mm without causing blockages. |
| Heavy-Duty Cast Iron Build | Rugged pump body construction ensures maximum structural integrity and wear resistance in abrasive wastewater. |
| High Flow & Head Capacity | Capable of delivering up to 850 Liters Per Minute (LPM) and reaching a maximum head of 22 meters. |
| Advanced Motor Protection | Features Class F insulation and an IP68 protection class rating for safe, continuous deep submersion. |
| Double Mechanical Seal | Utilizes dual Silicon Carbide/Silicon Carbide seals to prevent fluid leaks and safeguard the motor. |
| Continuous Duty (S1) | Explicitly designed for 24/7 continuous operation under heavy loads |
| Efficient Motor Cooling | Oil-filled induction motor cooling system maintains optimal internal temperatures during operation. |
| Sewage Transfer | Transporting raw, untreated sewage and wastewater in commercial buildings and residential societies. |
| Wastewater Disposal | Moving heavily contaminated water from sumps and collection tanks. |
| Municipal Drainage | Efficient handling of storm water, street flooding, and municipal drainage infrastructure. |
| Septic Tanks | Clearing out domestic and commercial septic tank waste accumulated over time. |
| Industrial Effluent Handling | Transferring chemical-free industrial process wastewater and factory effluents. |
| Construction Dewatering | Pumping out muddy water, slurry, and basement flooding from construction sites. |
| Sewage Treatment Plants (STP) | Feeding raw sewage into clarification, filtration, and aeration systems. |
| Regular Inspection | Visually check the outer cast iron body for structural wear, scaling, or damage periodically. |
| Cable Check | Routinely inspect the 10-meter power cable for cracks, cuts, or insulation degradation to avoid electrical faults. |
| Impeller Clearing | Periodically clear any stringy material or rags that may wrap around the vortex impeller to maintain optimal RPM and flow. |
| Oil Chamber Service | Check and replace the internal motor cooling oil as per scheduled operating hours to prevent friction inside the motor. |
| Seal Inspection | Monitor the double mechanical seals during regular overhauls to ensure no water has breached the oil chamber. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Kisan 5 HP 80 mm Non-Clog Vortex Sewage Submersible Wastewater Drainage Pump KSSWP-500T
Kisan 5 HP 80 mm Non-Clog Vortex Sewage Submersible Wastewater Drainage Pump KSSWP-500T is listed under Dewatering Sewage Pump in Water Pumps and Motors on ToolHaat. Key specifications include weight (approx.) 48 kg, power 5 hp, flow rate 850 lpm, head 22 meter, pump type Sewage Submersible Pump. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
Kisan 5 HP 80 mm Non-Clog Vortex Sewage Submersible Wastewater Drainage Pump KSSWP-500T specifications
| Weight (Approx.) | 48 kg |
|---|---|
| Power | 5 hp |
| Flow Rate | 850 lpm |
| Head | 22 meter |
| Pump Type | Sewage Submersible Pump |
| Power Supply | 380 V, 50 Hz, Three Phase (3Ø) |
| Motor Type | Oil-Filled Induction Motor |
| Rated Speed | 2800 RPM |
| Outlet Size | 80 mm (3 Inch) |
| Solid Handling Capacity | 35 mm |
| Insulation Class | Class F |
| Protection Class | IP68 |
FAQs related to Kisan 5 HP 80 mm Non-Clog Vortex Sewage Submersible Wastewater Drainage Pump KSSWP-500T
Can I compare multiple brands of Kisan 5 HP 80 mm Non-Clog Vortex Sewage Submersible Wastewater Drainage Pump KSSWP-500T before purchasing?
+
Yes — ToolHaat lists Kisan 5 HP 80 mm Non-Clog Vortex Sewage Submersible Wastewater Drainage Pump KSSWP-500T from multiple verified vendors at different price points and specifications, letting you compare motor power, material, and price before a bulk purchase decision.
Does Kisan 5 HP 80 mm Non-Clog Vortex Sewage Submersible Wastewater Drainage Pump KSSWP-500T come with a manufacturer warranty?
+
Warranty coverage for Kisan 5 HP 80 mm Non-Clog Vortex Sewage Submersible Wastewater Drainage Pump KSSWP-500T varies by brand and is listed on the product page. ToolHaat support can help connect you with the vendor for warranty claims or servicing after your purchase.
Can contractors or dealers set up recurring bulk orders for Kisan 5 HP 80 mm Non-Clog Vortex Sewage Submersible Wastewater Drainage Pump KSSWP-500T?
+
Yes — contractors and dealers regularly use ToolHaat for recurring Kisan 5 HP 80 mm Non-Clog Vortex Sewage Submersible Wastewater Drainage Pump KSSWP-500T procurement. Contact our sales team to set up a standing order arrangement with consistent bulk pricing.
Can I get bulk pricing for Kisan 5 HP 80 mm Non-Clog Vortex Sewage Submersible Wastewater Drainage Pump KSSWP-500T if I need multiple units?
+
Yes — Kisan 5 HP 80 mm Non-Clog Vortex Sewage Submersible Wastewater Drainage Pump KSSWP-500T uses tiered bulk pricing on ToolHaat, with unit cost decreasing at higher order quantities. For distributor or contractor-level volumes, use the RFQ feature for a dedicated quote.
What capacity or specification of Kisan 5 HP 80 mm Non-Clog Vortex Sewage Submersible Wastewater Drainage Pump KSSWP-500T should I choose?
+
The right Kisan 5 HP 80 mm Non-Clog Vortex Sewage Submersible Wastewater Drainage Pump KSSWP-500T depends on your required flow rate, head (lift height), and power source — each listing specifies these details. For help matching a pump to your specific application, contact ToolHaat support or submit an RFQ with your requirements.
