Generic · SKU: thwpm569

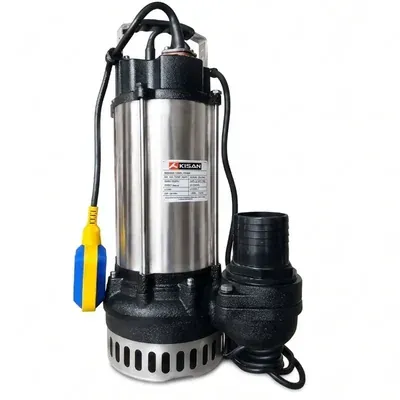

Kisan 3 HP Cast Iron Vortex Impeller Submersible Sewage Wastewater Pump with Double Mechanical Seal (KSSWP, 300T)
In Stock
₹28,710₹39,200-27% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Generic |
| Weight (Approx.) | 40 kg |
| Power | 3 hp |
| Flow Rate | 650 lpm |
| Head | 18 meter |
| Pump Type | Sewage Submersible Pump |
| Motor Power | 3 HP (2.2 kW) |
| Power Supply (Single Phase) | 220 V, 50 Hz, 1Ø |
| Power Supply (Three Phase) | 380 V, 50 Hz, 3Ø |
| Motor Type | Oil-Filled Induction Motor |
| Rated Speed | 2800 RPM |
| Outlet Size | 50 mm (2 Inch) |
| Maximum Flow Rate | Up to 650 LPM |
| Solid Handling Capacity | 20 mm |
| Insulation Class | Class F |
| Protection Class | IP68 |
| Pump Body Material | Cast Iron |
| Impeller Material | Cast Iron (Vortex Type) |
| Shaft Material | Stainless Steel |
| Mechanical Seal | Double Mechanical Seal (Silicon Carbide / Carbon Ceramic) |
| Rated Frequency | 50 Hz |
| Voltage Range (Single Phase) | 160 – 250 V |
| Voltage Range (Three Phase) | 380 – 415 V |
| Maximum Liquid Temperature | 40°C |
| Cable Length | 8–10 m (Approx.) |
| Duty Type | Continuous Duty (S1) |
| Heavy-Duty Construction | Built with a rugged, wear-resistant cast iron pump body and impeller to ensure optimal service life in abrasive sludge and corrosive wastewater settings. |
| Non-Clogging Vortex Impeller | Utilizes a cast iron vortex-style impeller that creates a swirling liquid vortex to easily clear solid materials away from the inlet. |
| Superior Mechanical Sealing | Equipped with a state-of-the-art double mechanical seal constructed from silicon carbide and carbon ceramic to provide excellent oil and fluid barrier security. |
| Oil-Filled Induction Motor | Provides consistent heat dissipation and lubrication via its internal oil reservoir, running smoothly at 2800 RPM. |
| High Flow & Head Handling | Outfitted with a 50 mm (2-inch) outlet capable of sustaining an exceptional flow rate of up to 650 Liters Per Minute (LPM) and lifting fluid to a maximum head of 18 meters. |
| Continuous Duty Operation | Classified under S1 duty type with Class F insulation and an IP68 dust-and-waterproof immersion rating, designed safely for nonstop submersible environments. |
| Residential Sewage Disposal | Efficiently pumps raw sewage, septic effluents, and household graywater from domestic holding tanks. |
| Commercial Basement Drainage | Quickly manages floodwater and groundwater pooling in deeply low-lying structures or basements. |
| Industrial Effluent Handling | Transfers heavily loaded wastewater, chemicals, and industrial residue safely through chemical processing loops. |
| Construction Dewatering | Drains muddy excavations, debris-filled puddles, pits, and waterlogged work areas around construction projects. |
| Municipal Sewage Systems | Fits directly into local water collection nodes to regulate community wastewater treatment networks. |
| Submersion Requirements | Always submerge the pump completely into the fluid to guarantee normal water cooling during operations; do not run dry. |
| Voltage Alignment | Verify that your local current aligns safely with the designated single-phase (160–250 V) or three-phase (380–415 V) limits before booting up. |
| Solid Particle Sizing | Ensure that the input fluid lacks dense structural debris exceeding the maximum 20 mm solid handling parameter to shield internal systems from damage. |
| Temperature Thresholds | Do not operate the pump in thermal liquids or industrial runoff exceeding a maximum liquid temperature of 40°C. |
| Secure Suspension | Lower or hang the machine using a reliable dedicated lifting cable; never drag, hang, or strain the pump using its electrical power cable. |
| Regular Structural Inspections | Regularly check the cast iron pump body, inlet screen, and suction passage for accumulated foreign matter or blocking threads. |
| Seal and Oil Audits | Periodically examine the internal oil state inside the motor compartment to ensure the dual silicon carbide / carbon ceramic mechanical seal has not degraded. |
| Insulation Inspections | Routinely audit the electrical insulation resistance along with the integrated 8–10 meter cable line to eliminate frayed wiring paths. |
| Impeller Clearance Checks | Manually spin and inspect the vortex cast iron impeller for scoring, physical erosion, or tangled hair and rags that decrease flow rates. |
| Storage Procedures | If withdrawing the device for seasonal storage, wash off chemical residue, clear the internal chamber, dry thoroughly, and store it upright in a dry area. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Kisan 3 HP Cast Iron Vortex Impeller Submersible Sewage Wastewater Pump with Double Mechanical Seal (KSSWP, 300T)
Kisan 3 HP Cast Iron Vortex Impeller Submersible Sewage Wastewater Pump with Double Mechanical Seal (KSSWP, 300T) is listed under Dewatering Sewage Pump in Water Pumps and Motors on ToolHaat. Key specifications include weight (approx.) 40 kg, power 3 hp, flow rate 650 lpm, head 18 meter, pump type Sewage Submersible Pump. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
Kisan 3 HP Cast Iron Vortex Impeller Submersible Sewage Wastewater Pump with Double Mechanical Seal (KSSWP, 300T) specifications
| Weight (Approx.) | 40 kg |
|---|---|
| Power | 3 hp |
| Flow Rate | 650 lpm |
| Head | 18 meter |
| Pump Type | Sewage Submersible Pump |
| Motor Power | 3 HP (2.2 kW) |
| Power Supply (Single Phase) | 220 V, 50 Hz, 1Ø |
| Power Supply (Three Phase) | 380 V, 50 Hz, 3Ø |
| Motor Type | Oil-Filled Induction Motor |
| Rated Speed | 2800 RPM |
| Outlet Size | 50 mm (2 Inch) |
| Maximum Flow Rate | Up to 650 LPM |
FAQs related to Kisan 3 HP Cast Iron Vortex Impeller Submersible Sewage Wastewater Pump with Double Mechanical Seal (KSSWP, 300T)
Does Kisan 3 HP Cast Iron Vortex Impeller Submersible Sewage Wastewater Pump with Double Mechanical Seal (KSSWP, 300T) come with a manufacturer warranty?
+
Warranty coverage for Kisan 3 HP Cast Iron Vortex Impeller Submersible Sewage Wastewater Pump with Double Mechanical Seal (KSSWP, 300T) varies by brand and is listed on the product page. ToolHaat support can help connect you with the vendor for warranty claims or servicing after your purchase.
Are spare parts and accessories for Kisan 3 HP Cast Iron Vortex Impeller Submersible Sewage Wastewater Pump with Double Mechanical Seal (KSSWP, 300T) available separately?
+
Yes — related accessory subcategories on ToolHaat list compatible spares and fittings for Kisan 3 HP Cast Iron Vortex Impeller Submersible Sewage Wastewater Pump with Double Mechanical Seal (KSSWP, 300T), so replacement parts can be sourced without needing to buy a full new unit.
Does ToolHaat offer installation guidance for Kisan 3 HP Cast Iron Vortex Impeller Submersible Sewage Wastewater Pump with Double Mechanical Seal (KSSWP, 300T)?
+
Installation requirements vary by Kisan 3 HP Cast Iron Vortex Impeller Submersible Sewage Wastewater Pump with Double Mechanical Seal (KSSWP, 300T) model — check the product listing for included documentation. For larger installations, our sales team can help connect you with the vendor for on-site guidance where available.
What capacity or specification of Kisan 3 HP Cast Iron Vortex Impeller Submersible Sewage Wastewater Pump with Double Mechanical Seal (KSSWP, 300T) should I choose?
+
The right Kisan 3 HP Cast Iron Vortex Impeller Submersible Sewage Wastewater Pump with Double Mechanical Seal (KSSWP, 300T) depends on your required flow rate, head (lift height), and power source — each listing specifies these details. For help matching a pump to your specific application, contact ToolHaat support or submit an RFQ with your requirements.
Can I get bulk pricing for Kisan 3 HP Cast Iron Vortex Impeller Submersible Sewage Wastewater Pump with Double Mechanical Seal (KSSWP, 300T) if I need multiple units?
+
Yes — Kisan 3 HP Cast Iron Vortex Impeller Submersible Sewage Wastewater Pump with Double Mechanical Seal (KSSWP, 300T) uses tiered bulk pricing on ToolHaat, with unit cost decreasing at higher order quantities. For distributor or contractor-level volumes, use the RFQ feature for a dedicated quote.
