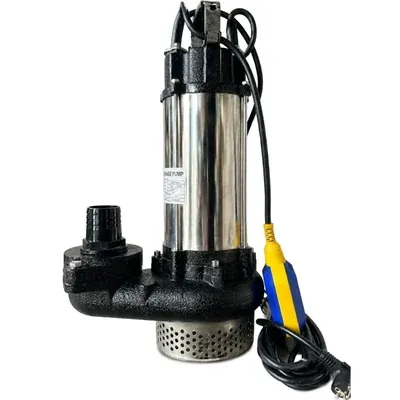

Kisan 1.5 HP Cast Iron Sewage Submersible Pump 50 mm Outlet 20 mm Solid Handling Continuous Duty KSSWP-150

About Kisan 1.5 HP Cast Iron Sewage Submersible Pump 50 mm Outlet 20 mm Solid Handling Continuous Duty KSSWP-150

{"Brand":"Generic ( Made in India )","Weight (Approx.)":"18 kg","Power":"1.5 hp","Flow Rate":"450 lpm","Head":"13 meter","Pump Type":"Sewage Submersible Pump","Power Supply":"220 V, 50 Hz, Single Phase (1Ø)","Motor Power":"1.5 HP (1.1 kW)","Motor Type":"Oil-Filled Iduction Motor","Rated Speed":"2800 RPM","Outlet Size":"50 mm (2 Inch)","Solid Handling Capacity":"20 mm","Insulation Class":"Class F","Protection Class":"IP68","Shaft Material":"Stainless Steel","Impeller Material":"Cast Iron","Pump Body Material":"Cast Iron","Mechanical Seal":"Silicon Carbide / Carbon Ceramic","Rated Frequency":"50 Hz","Voltage Range":"160 "“ 250 V","Maximum Liquid Temperature":"30°C","Duty Type":"Continuous Duty","Cable Length":"8 m (Approx.)","Heavy-Duty Cast Iron Construction":"Designed with a cast iron body and impeller for maximum resistance against wear, corrosion, and rough handling in harsh environments.","Superior Solid Handling":"Effortlessly processes suspended solids up to 20mm in size without clogging, ensuring smooth operations in muddy or debris-rich water.","High Efficiency Motor":"Equipped with a 1.5HP oil-filled induction motor spinning at 2800 RPM for maximum flow performance and cooling efficiency.","Advanced Mechanical Sealing":"Incorporates a high-grade Silicon Carbide / Carbon Ceramic mechanical seal coupled with a stainless steel shaft to protect internal components from leakage.","Continuous Duty Cycle":"Explicitly engineered for continuous operation, allowing prolonged usage in critical dewatering and draining applications without overheating.","Robust Safety and Insulation":"Classified under Insulation Class F and rated IP68 waterproof protection to ensure optimal operator safety and long product life.","Voltage Fluctuation Resilience":"Functions smoothly within a wide operational voltage band of 160V to 250V to counter unstable grid situations.","Sewage Disposal":"Transferring raw sewage and domestic blackwater into municipal or localized collection grids.","Septic Tank Cleansing":"Emptying settled sludge and residential septic tanks during routine maintenance.","Wastewater Drainage":"Clearing residential basements, commercial sumps, and flooded parking zones.","Construction Site Dewatering":"Pumping out muddy excavation pits, trenches, and underground water accumulation spots.","Effluent Handling":"Managing industrial runoff, food-processing wastewater, and light commercial waste liquids.","Submerged Installation":"Always operate the pump fully submerged in liquid to prevent dry running and to maintain proper motor cooling.","Stable Power Connection":"Ensure connection to a single-phase 220V power outlet equipped with standard grounding; the pump safely tolerates minor shifts from 160V to 250V.","Debris Clearance Check":"Verify that the intake area is free of particles exceeding 20mm in diameter before starting operation to avoid physical blockages.","Vertical Positioning":"Lower and secure the pump vertically into the sump or pit using a dedicated lifting rope rather than pulling by its 8-meter electrical cable.","Regular Intake Inspection":"Periodically clean the suction base and clear any trapped sludge or long fibers wrapped around the cast iron impeller.","Cable Verification":"Frequently check the 8-meter power cord for physical cuts, cracks, or abrasions to eliminate electrical hazards.","Seal and Oil Tracking":"Inspect the mechanical seal and check the oil level in the induction motor chamber annually to ensure zero liquid ingress.","Storage Protocols":"If storing the pump out of service for extended periods, flush it with clean water, dry thoroughly, and store in a covered, dry place."}

Kisan 1.5 HP Cast Iron Sewage Submersible Pump 50 mm Outlet 20 mm Solid Handling Continuous Duty KSSWP-150 specifications
