Kirloskar · SKU: thwpm961

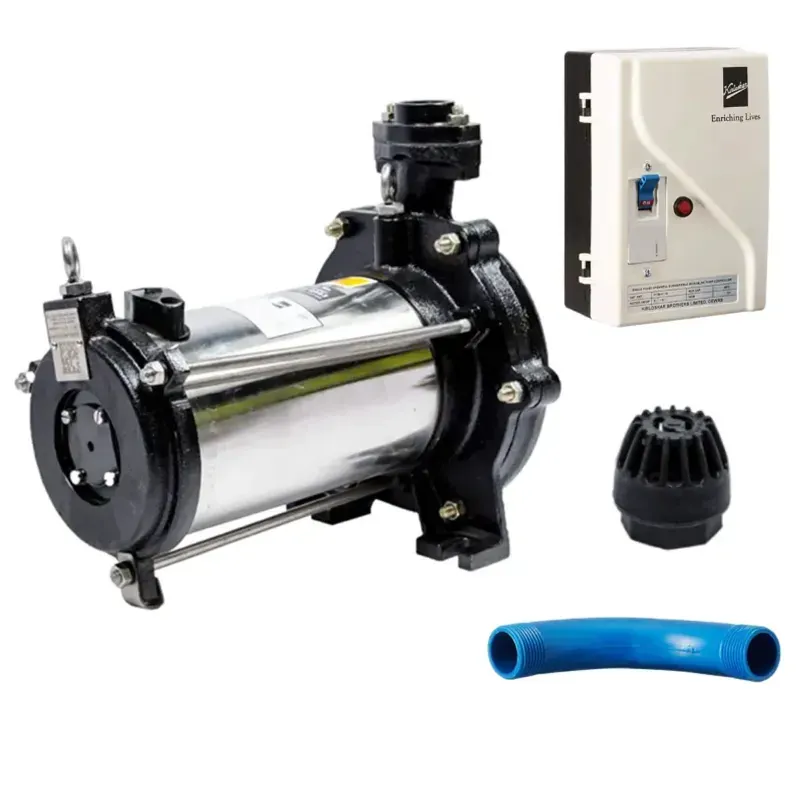

Kirloskar 1.5 HP (KOSi-1.540 CP) Single Phase Openwell Submersible Pump, 36 m Max. Head & 168 LPM With Control Panel
In Stock
₹23,315₹32,970-29% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Kirloskar |
| Power | 1.5 hp |
| Weight (Approx.) | 24.5 kg |
| Flow Rate | 168 lpm |
| Head | 36 meter |
| Model No. | KOSi-1.540 |
| Product Type | Openwell Submersible Pumps |
| Power Source | Corded Electric |
| Wattage | 1.1 kW |
| Power Supply | 210V, 50 Hz, AC Power Supply |
| Electricity Connection | Single Phase |
| Motor Winding | Copper |
| Head Range | 79 to 118 Feet (24 -36 Meter) |
| Discharge Range | 168 to 42 LPM (10080 to 2520 LPH) |
| Pipe Size (Suction x Delivery) | 32 x 25 mm |
| No load Speed | 2800 RPM |
| Motor Body | Stainless Steel |
| Shaft Material | Stainless Steel |
| Impeller | Cast Iron / Noryl |
| Rotor | Copper |
| Delivery Casting | Cast Iron |
| Insulation Class | B-Class |
| Protection | IP 68 |
| Wide Voltage Design | The motor is designed to withstand wide voltage fluctuations from 120 to 240 volts and reduces motor burning in low voltage. |
| Lightweight And Compact Design | Constructed with special grade engineering materials, compact designs for ease of handling and installation. |
| Dynamically Balanced Rotating Parts | Minimum vibrations protect components from damages during the operations, consistent performance as concentricity is maintained. |
| Replaceable Wearing Parts | All wearing parts within the pumps are easily accessible and replaceable which provides ease of maintenance thereby extending the life of the pump. |
| Easy Maintainable Designs | Easy maintainable design and better interchangeability of components so that pump can be serviced even at remote locations by semi-skilled technicians |
| CED-Cathodic Electro Deposition | CED is the latest coating technology for corrosion resistance with uniform coating, provides 5 times more protection over conventional painting, resulting in longer life. All major Cl parts of Kirloskar pumps coming in contact with the water are CED coated |
| High Efficiency And Energy Saving Design | Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings. |
| Advanced Water Cooled Motors Designs | The motor is filled with potable water, protects from overheating and facilitates smoother and trouble free operation for the years. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Kirloskar 1.5 HP (KOSi-1.540 CP) Single Phase Openwell Submersible Pump, 36 m Max. Head & 168 LPM With Control Panel
Kirloskar 1.5 HP (KOSi-1.540 CP) Single Phase Openwell Submersible Pump, 36 m Max. Head & 168 LPM With Control Panel is listed under Open Well Pump in Water Pumps and Motors on ToolHaat, supplied by Kirloskar. Key specifications include power 1.5 hp, weight (approx.) 24.5 kg, flow rate 168 lpm, head 36 meter, model no. KOSi-1.540. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
Kirloskar 1.5 HP (KOSi-1.540 CP) Single Phase Openwell Submersible Pump, 36 m Max. Head & 168 LPM With Control Panel specifications
| Power | 1.5 hp |
|---|---|
| Weight (Approx.) | 24.5 kg |
| Flow Rate | 168 lpm |
| Head | 36 meter |
| Model No. | KOSi-1.540 |
| Product Type | Openwell Submersible Pumps |
| Power Source | Corded Electric |
| Wattage | 1.1 kW |
| Power Supply | 210V, 50 Hz, AC Power Supply |
| Electricity Connection | Single Phase |
| Motor Winding | Copper |
| Head Range | 79 to 118 Feet (24 -36 Meter) |
FAQs related to Kirloskar 1.5 HP (KOSi-1.540 CP) Single Phase Openwell Submersible Pump, 36 m Max. Head & 168 LPM With Control Panel
Can I get bulk pricing for Kirloskar 1.5 HP (KOSi-1.540 CP) Single Phase Openwell Submersible Pump, 36 m Max. Head & 168 LPM With Control Panel if I need multiple units?
+
Yes — Kirloskar 1.5 HP (KOSi-1.540 CP) Single Phase Openwell Submersible Pump, 36 m Max. Head & 168 LPM With Control Panel uses tiered bulk pricing on ToolHaat, with unit cost decreasing at higher order quantities. For distributor or contractor-level volumes, use the RFQ feature for a dedicated quote.
Can I compare multiple brands of Kirloskar 1.5 HP (KOSi-1.540 CP) Single Phase Openwell Submersible Pump, 36 m Max. Head & 168 LPM With Control Panel before purchasing?
+
Yes — ToolHaat lists Kirloskar 1.5 HP (KOSi-1.540 CP) Single Phase Openwell Submersible Pump, 36 m Max. Head & 168 LPM With Control Panel from multiple verified vendors at different price points and specifications, letting you compare motor power, material, and price before a bulk purchase decision.
Can contractors or dealers set up recurring bulk orders for Kirloskar 1.5 HP (KOSi-1.540 CP) Single Phase Openwell Submersible Pump, 36 m Max. Head & 168 LPM With Control Panel?
+
Yes — contractors and dealers regularly use ToolHaat for recurring Kirloskar 1.5 HP (KOSi-1.540 CP) Single Phase Openwell Submersible Pump, 36 m Max. Head & 168 LPM With Control Panel procurement. Contact our sales team to set up a standing order arrangement with consistent bulk pricing.
Are spare parts and accessories for Kirloskar 1.5 HP (KOSi-1.540 CP) Single Phase Openwell Submersible Pump, 36 m Max. Head & 168 LPM With Control Panel available separately?
+
Yes — related accessory subcategories on ToolHaat list compatible spares and fittings for Kirloskar 1.5 HP (KOSi-1.540 CP) Single Phase Openwell Submersible Pump, 36 m Max. Head & 168 LPM With Control Panel, so replacement parts can be sourced without needing to buy a full new unit.
What if Kirloskar 1.5 HP (KOSi-1.540 CP) Single Phase Openwell Submersible Pump, 36 m Max. Head & 168 LPM With Control Panel arrives with a manufacturing defect?
+
Contact ToolHaat support with your order ID if Kirloskar 1.5 HP (KOSi-1.540 CP) Single Phase Openwell Submersible Pump, 36 m Max. Head & 168 LPM With Control Panel shows a manufacturing defect on arrival. Replacement or refund is handled per our returns policy in coordination with the listing vendor.
