Kirloskar · SKU: thwpm965

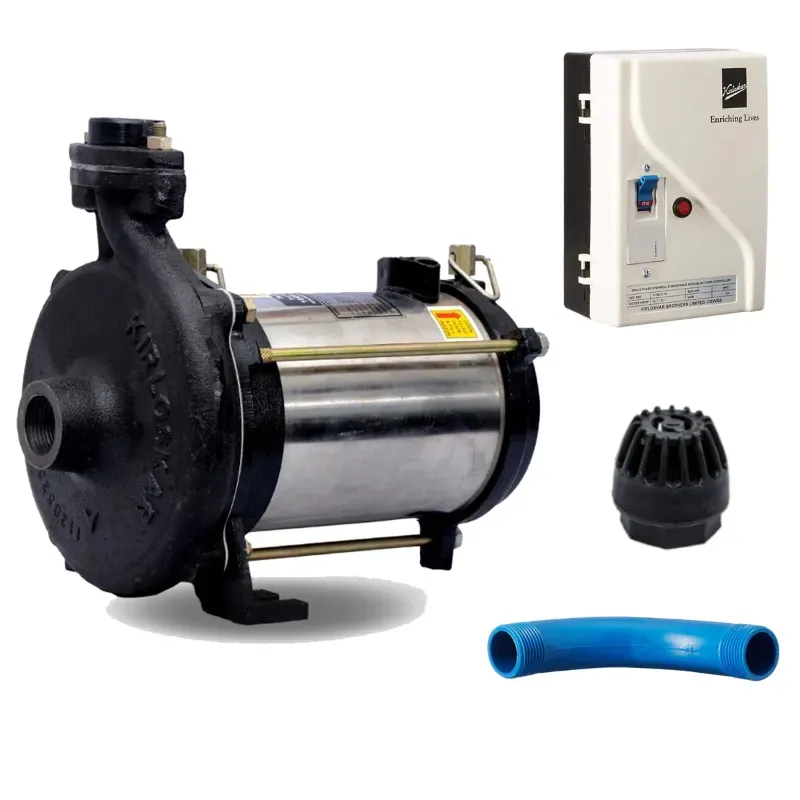

Kirloskar 1 HP (KOSi-135) Single Phase Openwell Submersible Pump Including Control Panel
In Stock
₹13,661₹20,482-33% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Kirloskar |
| Power | 1 hp |
| Weight (Approx.) | 18 kg |
| Flow Rate | 108 lpm |
| Head | 29 meter |
| Model No. | KOSi-135 |
| Product Type | Openwell Submersible Pumps |
| Power Source | Corded Electric |
| Motor Wattage | 0.75 kW |
| Power Supply | 210V, 50 Hz, AC Power Supply |
| Electricity Connection | Single Phase |
| Max. Current | 8.50 Amp. |
| Operating Head Range | 17 to 29 Meter (55 to 95 Feet) |
| Speed | 2800 RPM |
| Pipe Size (Suction x Delivery) | 25 x 25 mm |
| Cable Length | 3 Meter |
| Motor Body | Stainless Steel |
| Shaft Material | Stainless Steel |
| Impeller | Cast Iron / Noryl |
| Delivery Casting | Cast Iron |
| Insulation Class | B-Class |
| Protection | IP68 |
| Winding | Copper |
| Wide Voltage Design | The motor is designed to withstand wide voltage fluctuations from 160 to 240 volts and reduces motor burning in low voltage. |
| Lightweight And Compact Design | Constructed with special grade engineering materials, compact designs for ease of handling and installation. |
| Dynamically Balanced Rotating Parts | Minimum vibrations protect components from damages during the operations, consistent performance as concentricity is maintained. |
| Replaceable Wearing Parts | All wearing parts within the pumps are easily accessible and replaceable which provides ease of maintenance thereby extending the life of the pump. |
| Easy Maintainable Designs | Easy maintainable design and better interchangeability of components so that pump can be serviced even at remote locations by semi-skilled technicians |
| CED-Cathodic Electro Deposition | CED is the latest coating technology for corrosion resistance with uniform coating, provides 5 times more protection over conventional painting, resulting in longer life. All major Cl parts of Kirloskar pumps coming in contact with the water are CED coated |
| High Efficiency And Energy Saving Design | Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings. |
| Advanced Water Cooled Motors Designs | The motor is filled with potable water, protects from overheating and facilitates smoother and trouble free operation for the years. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Kirloskar 1 HP (KOSi-135) Single Phase Openwell Submersible Pump Including Control Panel
Kirloskar 1 HP (KOSi-135) Single Phase Openwell Submersible Pump Including Control Panel is listed under Open Well Pump in Water Pumps and Motors on ToolHaat, supplied by Kirloskar. Key specifications include power 1 hp, weight (approx.) 18 kg, flow rate 108 lpm, head 29 meter, model no. KOSi-135. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
Kirloskar 1 HP (KOSi-135) Single Phase Openwell Submersible Pump Including Control Panel specifications
| Power | 1 hp |
|---|---|
| Weight (Approx.) | 18 kg |
| Flow Rate | 108 lpm |
| Head | 29 meter |
| Model No. | KOSi-135 |
| Product Type | Openwell Submersible Pumps |
| Power Source | Corded Electric |
| Motor Wattage | 0.75 kW |
| Power Supply | 210V, 50 Hz, AC Power Supply |
| Electricity Connection | Single Phase |
| Max. Current | 8.50 Amp. |
| Operating Head Range | 17 to 29 Meter (55 to 95 Feet) |
FAQs related to Kirloskar 1 HP (KOSi-135) Single Phase Openwell Submersible Pump Including Control Panel
Does ToolHaat offer installation guidance for Kirloskar 1 HP (KOSi-135) Single Phase Openwell Submersible Pump Including Control Panel?
+
Installation requirements vary by Kirloskar 1 HP (KOSi-135) Single Phase Openwell Submersible Pump Including Control Panel model — check the product listing for included documentation. For larger installations, our sales team can help connect you with the vendor for on-site guidance where available.
Does Kirloskar 1 HP (KOSi-135) Single Phase Openwell Submersible Pump Including Control Panel come with a manufacturer warranty?
+
Warranty coverage for Kirloskar 1 HP (KOSi-135) Single Phase Openwell Submersible Pump Including Control Panel varies by brand and is listed on the product page. ToolHaat support can help connect you with the vendor for warranty claims or servicing after your purchase.
How is Kirloskar 1 HP (KOSi-135) Single Phase Openwell Submersible Pump Including Control Panel packaged and delivered to avoid transit damage?
+
Kirloskar 1 HP (KOSi-135) Single Phase Openwell Submersible Pump Including Control Panel is shipped in protective packaging designed for the product’s weight and components. Delivery timelines are shown at checkout based on your location — larger installations may need coordinated delivery scheduling, which our sales team can help arrange.
Is a GST invoice provided for Kirloskar 1 HP (KOSi-135) Single Phase Openwell Submersible Pump Including Control Panel purchases?
+
Yes, every Kirloskar 1 HP (KOSi-135) Single Phase Openwell Submersible Pump Including Control Panel order generates a GST invoice automatically, suitable for input tax credit claims and standard business procurement records.
Can I get bulk pricing for Kirloskar 1 HP (KOSi-135) Single Phase Openwell Submersible Pump Including Control Panel if I need multiple units?
+
Yes — Kirloskar 1 HP (KOSi-135) Single Phase Openwell Submersible Pump Including Control Panel uses tiered bulk pricing on ToolHaat, with unit cost decreasing at higher order quantities. For distributor or contractor-level volumes, use the RFQ feature for a dedicated quote.
