Kirloskar · SKU: thwpm967

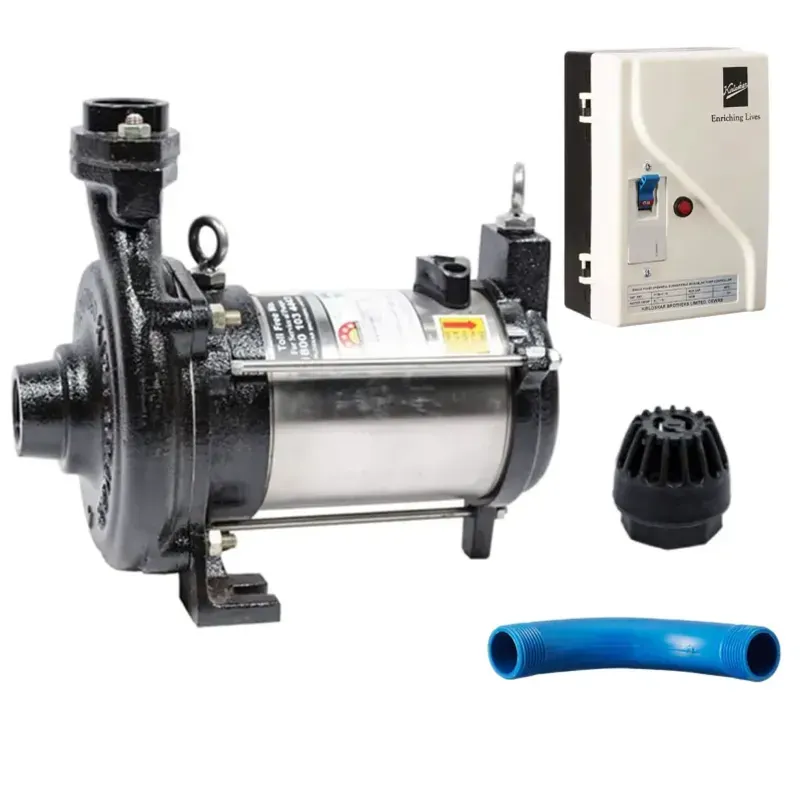

Kirloskar 1 HP (KOSi-123 CP) Single Phase Openwell Submersible Pump With Control Panel
In Stock
₹15,493₹24,051-36% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Pipe Size (Suction x Delivery) | 50 x 40 mm |
| Brand | Kirloskar |
| Power | 1 hp |
| Weight (Approx.) | 21 kg |
| Flow Rate | 258 lpm |
| Head | 20 meter |
| Model No. | KOSi-123 CP |
| Product Type | Openwell Submersible Pumps |
| Power Source | Corded Electric |
| Wattage | 0.75 kW |
| Power Supply | 210V, 50 Hz, AC Power Supply |
| Electricity Connection | Single Phase |
| No load Speed | 2800 RPM |
| Head Range | 33 to 66 feet (10 to 20 meter) |
| Discharge Rate | 258 - 96 LPM (15480-5760 LPH) |
| Motor Body | Stainless Steel |
| Shaft Material | Stainless Steel |
| Impeller | Cast Iron / Noryl |
| Delivery Casting | Cast Iron |
| Insulation Class | B-Class |
| Protection | IP 68 |
| Wide Voltage Design | The motor is designed to withstand wide voltage fluctuations from 160 to 240 volts and reduces motor burning in low voltage. |
| Lightweight And Compact Design | Constructed with special grade engineering materials, compact designs for ease of handling and installation. |
| Dynamically Balanced Rotating Parts | Minimum vibrations protect components from damages during the operations, consistent performance as concentricity is maintained. |
| Replaceable Wearing Parts | All wearing parts within the pumps are easily accessible and replaceable which provides ease of maintenance thereby extending the life of the pump. |
| Easy Maintainable Designs | Easy maintainable design and better interchangeability of components so that pump can be serviced even at remote locations by semi-skilled technicians |
| CED-Cathodic Electro Deposition | CED is the latest coating technology for corrosion resistance with uniform coating, provides 5 times more protection over conventional painting, resulting in longer life. All major Cl parts of Kirloskar pumps coming in contact with the water are CED coated |
| High Efficiency And Energy Saving Design | Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings. |
| Advanced Water Cooled Motors Designs | The motor is filled with potable water, protects from overheating and facilitates smoother and trouble free operation for the years. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Kirloskar 1 HP (KOSi-123 CP) Single Phase Openwell Submersible Pump With Control Panel
Kirloskar 1 HP (KOSi-123 CP) Single Phase Openwell Submersible Pump With Control Panel is listed under Open Well Pump in Water Pumps and Motors on ToolHaat, supplied by Kirloskar. Key specifications include pipe size (suction x delivery) 50 x 40 mm, power 1 hp, weight (approx.) 21 kg, flow rate 258 lpm, head 20 meter. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
Kirloskar 1 HP (KOSi-123 CP) Single Phase Openwell Submersible Pump With Control Panel specifications
| Pipe Size (Suction x Delivery) | 50 x 40 mm |
|---|---|
| Power | 1 hp |
| Weight (Approx.) | 21 kg |
| Flow Rate | 258 lpm |
| Head | 20 meter |
| Model No. | KOSi-123 CP |
| Product Type | Openwell Submersible Pumps |
| Power Source | Corded Electric |
| Wattage | 0.75 kW |
| Power Supply | 210V, 50 Hz, AC Power Supply |
| Electricity Connection | Single Phase |
| No load Speed | 2800 RPM |
FAQs related to Kirloskar 1 HP (KOSi-123 CP) Single Phase Openwell Submersible Pump With Control Panel
Does Kirloskar 1 HP (KOSi-123 CP) Single Phase Openwell Submersible Pump With Control Panel come with a manufacturer warranty?
+
Warranty coverage for Kirloskar 1 HP (KOSi-123 CP) Single Phase Openwell Submersible Pump With Control Panel varies by brand and is listed on the product page. ToolHaat support can help connect you with the vendor for warranty claims or servicing after your purchase.
Can I compare multiple brands of Kirloskar 1 HP (KOSi-123 CP) Single Phase Openwell Submersible Pump With Control Panel before purchasing?
+
Yes — ToolHaat lists Kirloskar 1 HP (KOSi-123 CP) Single Phase Openwell Submersible Pump With Control Panel from multiple verified vendors at different price points and specifications, letting you compare motor power, material, and price before a bulk purchase decision.
What if Kirloskar 1 HP (KOSi-123 CP) Single Phase Openwell Submersible Pump With Control Panel arrives with a manufacturing defect?
+
Contact ToolHaat support with your order ID if Kirloskar 1 HP (KOSi-123 CP) Single Phase Openwell Submersible Pump With Control Panel shows a manufacturing defect on arrival. Replacement or refund is handled per our returns policy in coordination with the listing vendor.
Can I get bulk pricing for Kirloskar 1 HP (KOSi-123 CP) Single Phase Openwell Submersible Pump With Control Panel if I need multiple units?
+
Yes — Kirloskar 1 HP (KOSi-123 CP) Single Phase Openwell Submersible Pump With Control Panel uses tiered bulk pricing on ToolHaat, with unit cost decreasing at higher order quantities. For distributor or contractor-level volumes, use the RFQ feature for a dedicated quote.
Is a GST invoice provided for Kirloskar 1 HP (KOSi-123 CP) Single Phase Openwell Submersible Pump With Control Panel purchases?
+
Yes, every Kirloskar 1 HP (KOSi-123 CP) Single Phase Openwell Submersible Pump With Control Panel order generates a GST invoice automatically, suitable for input tax credit claims and standard business procurement records.
