Kirloskar · SKU: thwpm949

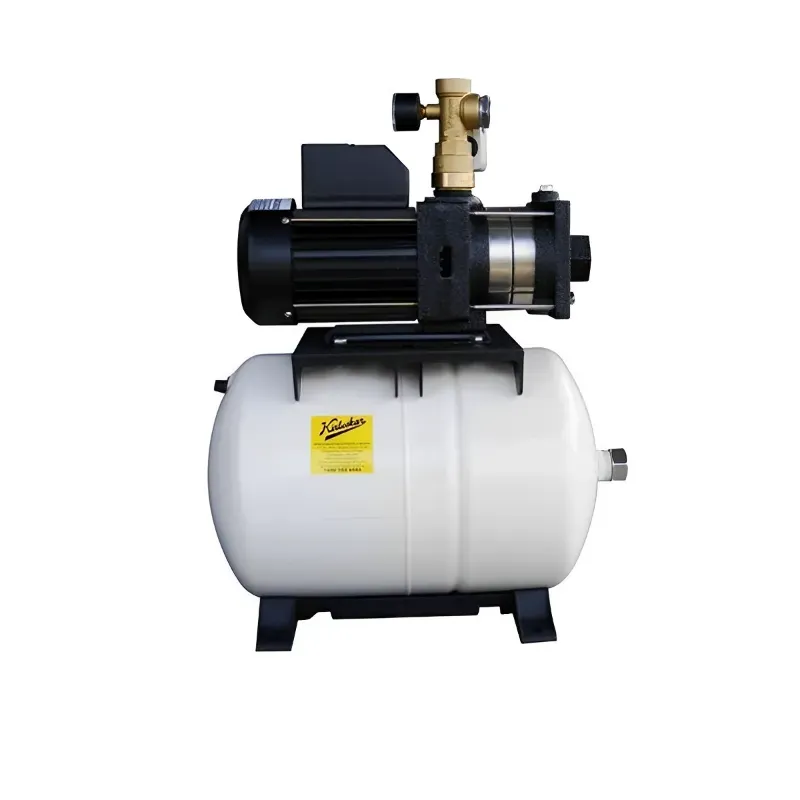

Kirloskar CPBS-84424H, 1.5 HP Pressure Booster Pump with 24 Litre Tank
In Stock
₹37,372₹48,915-24% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Kirloskar |
| Power | 1.5 hp |
| Weight (Approx.) | 28 kg |
| Flow Rate | 140 lpm |
| Head | 52 meter |
| Model No. | CPBS-84424H |
| Product Type | Horizontal Pressure Booster Pump |
| Power Source | Corded Electric |
| Wattage | 1.1 kW |
| Power Supply | 220V, 50 Hz, AC Supply |
| Electricity Connection | Single Phase |
| Head Range | 39 to 171 Feet (12 - 52 Meters) |
| No. of Outlet | 8 Per Taps |
| Rated Current | 8.5 Amps |
| Pressure Range | 2.4 - 4.4 kg/cm² |
| No. of Stages | 5 |
| Pipe Size (Suction x Delivery) | 25 x 25 mm |
| Tank Size | 24 Liters |
| Discharge Rate | 20 - 140 LPM |
| Impeller | Stainless Steel |
| Diffuser | Stainless Steel |
| Motor Body | Aluminium Die Cast |
| Pump Shaft | Stainless Steel |
| Pump Stage Casting | Stainless Steel |
| Winding Material | Copper Winding |
| Suction & Delivery Casing | Cast Iron |
| Insulation | B Class |
| Protection | IP 44 |
| Compact, Reliable and Silent | Dynamically balanced rotating parts, superior quality bearings and SS fabricated impellers with compact design ensures reliable and silent operations. |
| TOP-Thermal Overload Protector | The pump set features a Thermal Overload Protector that protects the motor from overloading, shielding of the motor and associated circuit from the effects of fault current. |
| Diaphragm Type Pressure Tank | Diaphragm type pressure tank made from high grade engineering material. |
| Easy Maintainable Designs | Easy maintainable design and better interchangeability of components so that pump can be serviced even at remote locations by semi-skilled technicians |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Kirloskar CPBS-84424H, 1.5 HP Pressure Booster Pump with 24 Litre Tank
Kirloskar CPBS-84424H, 1.5 HP Pressure Booster Pump with 24 Litre Tank is listed under Booster Pump in Water Pumps and Motors on ToolHaat, supplied by Kirloskar. Key specifications include power 1.5 hp, weight (approx.) 28 kg, flow rate 140 lpm, head 52 meter, model no. CPBS-84424H. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
Kirloskar CPBS-84424H, 1.5 HP Pressure Booster Pump with 24 Litre Tank specifications
| Power | 1.5 hp |
|---|---|
| Weight (Approx.) | 28 kg |
| Flow Rate | 140 lpm |
| Head | 52 meter |
| Model No. | CPBS-84424H |
| Product Type | Horizontal Pressure Booster Pump |
| Power Source | Corded Electric |
| Wattage | 1.1 kW |
| Power Supply | 220V, 50 Hz, AC Supply |
| Electricity Connection | Single Phase |
| Head Range | 39 to 171 Feet (12 - 52 Meters) |
| No. of Outlet | 8 Per Taps |
