Kirloskar · SKU: thwpm950

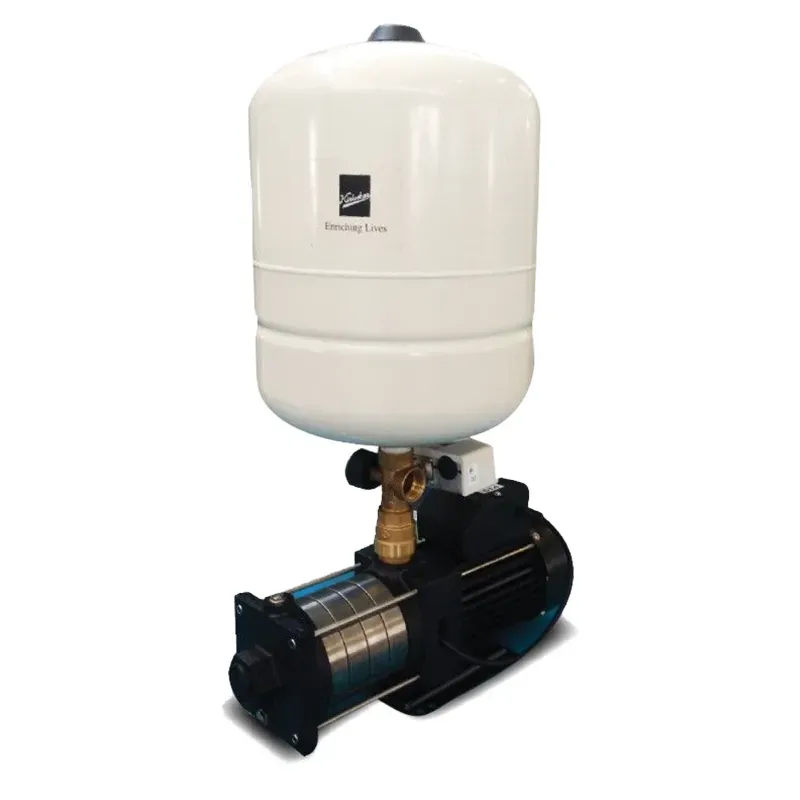

Kirloskar CPBS-73624 V, 1 HP Pressure Booster Pump with 24 Litre Tank
In Stock
₹33,857₹42,051-19% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Diffuser | Stainless Steel |
| Motor Body | Aluminium Die Cast |
| Brand | Kirloskar |
| Power | 1 hp |
| Weight (Approx.) | 23.20 kg |
| Flow Rate | 140 lpm |
| Head | 41 meter |
| Model No. | CPBS-73624V |
| Product Type | Vertical Pressure Booster Pump |
| Power Source | Corded Electric |
| Wattage | 0.75 kW |
| Power Supply | 220V, 50 Hz, AC Power Supply |
| Electricity Connection | Single Phase |
| Head Range | 20 to 135 Feet (6 - 41 meters) |
| No. of Outlet | 7 per Taps |
| Rated Current | 7.5 Amp. |
| Pressure Range | 2.2 - 3.6 Kg/Cm² |
| No. of Stages | 4 |
| Pipe Size (Suction x Delivery) | 25 x 25 mm |
| Tank Capacity | 24 Liters |
| Winding Material | Copper Winding |
| Discharge Rate | 20-140 LPM (1200-8400 LPH) |
| Impeller | Stainless Steel |
| Pump Shaft | Steel |
| Pump Stage Casting | Stainless Steel |
| Suction & Delivery Casing | Cast Iron |
| Insulation | B Class |
| Protection | IP 44 |
| Compact Reliable and Silent | Dynamically balanced rotating parts, superior quality bearings and SS fabricated impellers with compact design ensures reliable and silent operations. |
| TOP - Thermal Overload Protector | The pump set features a Thermal Overload protector that protects the motor from overloading, shielding the motor and associated circuit from the effects of fault current. |
| Diaphragm Type Pressure Tank | Diaphragm type pressure tank made from high grade engineering material |
| Reliable & Durable Components | Reliable and durable peripheral parts such as Pressure Switch, Standardized Size of 5 Way Connector, and Italian make NRV and SS hose pipe. |
| Easy Maintainable Designs | Easy maintainable design and better interchangeability of components so that pump can be serviced even at remote locations by semi-skilled technicians. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Kirloskar CPBS-73624 V, 1 HP Pressure Booster Pump with 24 Litre Tank
Kirloskar CPBS-73624 V, 1 HP Pressure Booster Pump with 24 Litre Tank is listed under Booster Pump in Water Pumps and Motors on ToolHaat, supplied by Kirloskar. Key specifications include diffuser Stainless Steel, motor body Aluminium Die Cast, power 1 hp, weight (approx.) 23.20 kg, flow rate 140 lpm. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
Kirloskar CPBS-73624 V, 1 HP Pressure Booster Pump with 24 Litre Tank specifications
| Diffuser | Stainless Steel |
|---|---|
| Motor Body | Aluminium Die Cast |
| Power | 1 hp |
| Weight (Approx.) | 23.20 kg |
| Flow Rate | 140 lpm |
| Head | 41 meter |
| Model No. | CPBS-73624V |
| Product Type | Vertical Pressure Booster Pump |
| Power Source | Corded Electric |
| Wattage | 0.75 kW |
| Power Supply | 220V, 50 Hz, AC Power Supply |
| Electricity Connection | Single Phase |
FAQs related to Kirloskar CPBS-73624 V, 1 HP Pressure Booster Pump with 24 Litre Tank
How is Kirloskar CPBS-73624 V, 1 HP Pressure Booster Pump with 24 Litre Tank packaged and delivered to avoid transit damage?
+
Kirloskar CPBS-73624 V, 1 HP Pressure Booster Pump with 24 Litre Tank is shipped in protective packaging designed for the product’s weight and components. Delivery timelines are shown at checkout based on your location — larger installations may need coordinated delivery scheduling, which our sales team can help arrange.
Can I get bulk pricing for Kirloskar CPBS-73624 V, 1 HP Pressure Booster Pump with 24 Litre Tank if I need multiple units?
+
Yes — Kirloskar CPBS-73624 V, 1 HP Pressure Booster Pump with 24 Litre Tank uses tiered bulk pricing on ToolHaat, with unit cost decreasing at higher order quantities. For distributor or contractor-level volumes, use the RFQ feature for a dedicated quote.
What if Kirloskar CPBS-73624 V, 1 HP Pressure Booster Pump with 24 Litre Tank arrives with a manufacturing defect?
+
Contact ToolHaat support with your order ID if Kirloskar CPBS-73624 V, 1 HP Pressure Booster Pump with 24 Litre Tank shows a manufacturing defect on arrival. Replacement or refund is handled per our returns policy in coordination with the listing vendor.
Does ToolHaat offer installation guidance for Kirloskar CPBS-73624 V, 1 HP Pressure Booster Pump with 24 Litre Tank?
+
Installation requirements vary by Kirloskar CPBS-73624 V, 1 HP Pressure Booster Pump with 24 Litre Tank model — check the product listing for included documentation. For larger installations, our sales team can help connect you with the vendor for on-site guidance where available.
What capacity or specification of Kirloskar CPBS-73624 V, 1 HP Pressure Booster Pump with 24 Litre Tank should I choose?
+
The right Kirloskar CPBS-73624 V, 1 HP Pressure Booster Pump with 24 Litre Tank depends on your required flow rate, head (lift height), and power source — each listing specifies these details. For help matching a pump to your specific application, contact ToolHaat support or submit an RFQ with your requirements.
