Kirloskar · SKU: thwpm947

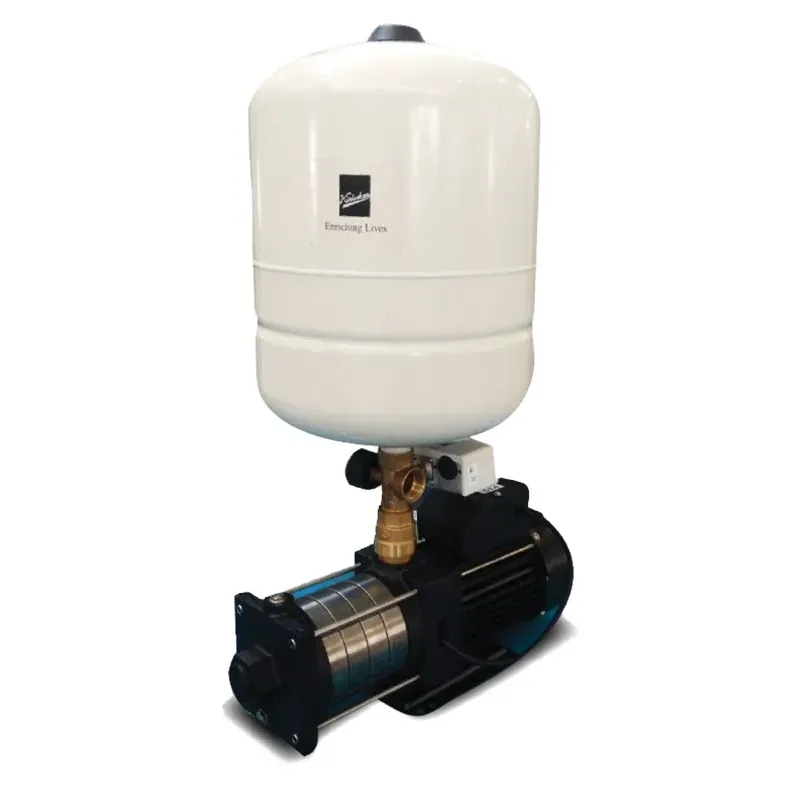

Kirloskar CPBS-62824 V, 0.8 HP Pressure Booster Pump with 24 Litre Tank (1 Year Warranty)
In Stock
₹31,877₹39,592-19% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Kirloskar |
| Power | 0.8 hp |
| Weight (Approx.) | 26 kg |
| Flow Rate | 100 lpm |
| Head | 35 meter |
| Model No. | CPBS-62824V |
| Product Type | Vertical Pressure Booster Pump |
| Power Source | Corded Electric |
| Wattage | 0.6 kW |
| Electricity Connection | Single Phase |
| Head Range | 20 to 115 feet (6 - 35 meters) |
| No. of Outlet | 6 per Taps |
| Rated Current | 6.5 Amps |
| Max. Pressure Range | 1.8 - 2.8 Kg/Cm² |
| No. of Stages | 3 |
| Pipe Size (Suction x Delivery) | 25 x 25 mm |
| Tank Size | 24 liters |
| Discharge Rate | 20-100 LPM (1200-6000 LPH) |
| Motor Body | Aluminium Die Cast |
| Impeller | Stainless Steel |
| Diffuser | Stainless Steel |
| Pump Shaft | Steel |
| Pump Stage Casting | Stainless Steel |
| Suction & Delivery Casing | Cast Iron |
| Insulation | B Class |
| Protection | IP 44 |
| Compact Reliable and Silent | Dynamically balanced rotating parts, superior quality bearings and SS fabricated impellers with compact design ensures reliable and silent operations. |
| TOP - Thermal Overload Protector | The pump set features a Thermal Overload protector that protects the motor from overloading, shielding the motor and associated circuit from the effects of fault current. |
| Diaphragm Type Pressure Tank | Diaphragm type pressure tank made from high grade engineering material |
| Reliable & Durable Components | Reliable and durable peripheral parts such as Pressure Switch, Standardized Size of 5 Way Connector, and Italian make NRV and SS hose pipe. |
| Easy Maintainable Designs | Easy maintainable design and better interchangeability of components so that pump can be serviced even at remote locations by semi-skilled technicians. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Kirloskar CPBS-62824 V, 0.8 HP Pressure Booster Pump with 24 Litre Tank (1 Year Warranty)
Kirloskar CPBS-62824 V, 0.8 HP Pressure Booster Pump with 24 Litre Tank (1 Year Warranty) is listed under Booster Pump in Water Pumps and Motors on ToolHaat, supplied by Kirloskar. Key specifications include power 0.8 hp, weight (approx.) 26 kg, flow rate 100 lpm, head 35 meter, model no. CPBS-62824V. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
Kirloskar CPBS-62824 V, 0.8 HP Pressure Booster Pump with 24 Litre Tank (1 Year Warranty) specifications
| Power | 0.8 hp |
|---|---|
| Weight (Approx.) | 26 kg |
| Flow Rate | 100 lpm |
| Head | 35 meter |
| Model No. | CPBS-62824V |
| Product Type | Vertical Pressure Booster Pump |
| Power Source | Corded Electric |
| Wattage | 0.6 kW |
| Electricity Connection | Single Phase |
| Head Range | 20 to 115 feet (6 - 35 meters) |
| No. of Outlet | 6 per Taps |
| Rated Current | 6.5 Amps |
FAQs related to Kirloskar CPBS-62824 V, 0.8 HP Pressure Booster Pump with 24 Litre Tank (1 Year Warranty)
Does Kirloskar CPBS-62824 V, 0.8 HP Pressure Booster Pump with 24 Litre Tank (1 Year Warranty) come with a manufacturer warranty?
+
Warranty coverage for Kirloskar CPBS-62824 V, 0.8 HP Pressure Booster Pump with 24 Litre Tank (1 Year Warranty) varies by brand and is listed on the product page. ToolHaat support can help connect you with the vendor for warranty claims or servicing after your purchase.
Can I get bulk pricing for Kirloskar CPBS-62824 V, 0.8 HP Pressure Booster Pump with 24 Litre Tank (1 Year Warranty) if I need multiple units?
+
Yes — Kirloskar CPBS-62824 V, 0.8 HP Pressure Booster Pump with 24 Litre Tank (1 Year Warranty) uses tiered bulk pricing on ToolHaat, with unit cost decreasing at higher order quantities. For distributor or contractor-level volumes, use the RFQ feature for a dedicated quote.
How is Kirloskar CPBS-62824 V, 0.8 HP Pressure Booster Pump with 24 Litre Tank (1 Year Warranty) packaged and delivered to avoid transit damage?
+
Kirloskar CPBS-62824 V, 0.8 HP Pressure Booster Pump with 24 Litre Tank (1 Year Warranty) is shipped in protective packaging designed for the product’s weight and components. Delivery timelines are shown at checkout based on your location — larger installations may need coordinated delivery scheduling, which our sales team can help arrange.
Can I compare multiple brands of Kirloskar CPBS-62824 V, 0.8 HP Pressure Booster Pump with 24 Litre Tank (1 Year Warranty) before purchasing?
+
Yes — ToolHaat lists Kirloskar CPBS-62824 V, 0.8 HP Pressure Booster Pump with 24 Litre Tank (1 Year Warranty) from multiple verified vendors at different price points and specifications, letting you compare motor power, material, and price before a bulk purchase decision.
Is a GST invoice provided for Kirloskar CPBS-62824 V, 0.8 HP Pressure Booster Pump with 24 Litre Tank (1 Year Warranty) purchases?
+
Yes, every Kirloskar CPBS-62824 V, 0.8 HP Pressure Booster Pump with 24 Litre Tank (1 Year Warranty) order generates a GST invoice automatically, suitable for input tax credit claims and standard business procurement records.
