Kirloskar · SKU: thwpm624

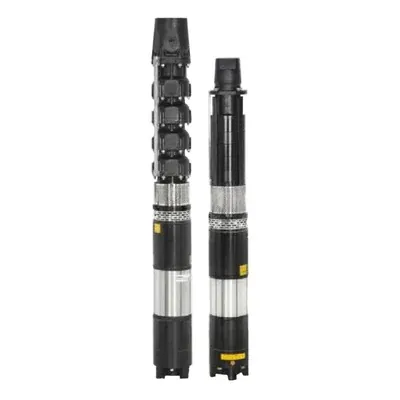

Kirloskar 7.5 HP 4 Stage 150 mm(6 Inch) Three Phase Water Filled Borewell Submersible Pump (KS6G-0804R)
In Stock
₹51,479₹63,938-19% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Kirloskar |
| Power | 7.5 hp |
| Weight (Approx.) | 93.195 kg |
| Flow Rate | 1200 lpm |
| Head | 48 meter |
| Model No. | KS6G-0804R |
| Product Type | Borewell Submersible Pump |
| Electricity Connection | Three Phase |
| Rated Voltage | 415 Volt, 50 Hz |
| No. Of Stages | 4 |
| Delivery Size | 100mm |
| Borewell Size | 150 mm (6 inch) |
| Max. Head | 48 Meter (157 Feet) |
| Max. Discharge Rate | 1200 LPM (72000 LPH) |
| Cooling Type | Water Filled |
| Winding Material | Copper |
| Impeller | SS 410 |
| Pump Shaft | SS 410 |
| Motor Body | Stainless Steel |
| Delivery Casing | CI FG 200 |
| Wide Voltage Motor Designs With 100% Copper Rotor | Motors are designed with extra overload capacities, more water spaces and engineered with 99.9% Electro Grade Copper performs well in low voltage with minimum discharge drops and suitable for wide voltage applications. |
| Sand Fighter Designs | Innovative Sand Fighter Designs restricts the entry of sand in motors, protects the pump and motor bushes to perform well in sandy borewells and increase the pump set life. |
| Dynamically Balanced Rotating Parts | Minimum vibrations protect components from damages during the operations, consistent performance as concentricity is maintained |
| Longer and Trouble Free Life | High grade engineering materials like Graded Cast Iron Components, Stainless Steel Shaft, Noryl Impellers, Bronze Bushes, Heavy duty Carbon + SS Thrust Plate, 99.9% Electro Grade Copper Rotor and Winding Wires for longer and trouble free life |
| High Efficiency and Energy Saving Design | Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings. |
| CED-Cathode Electro Deposition Coating | CED is the latest coating technology for corrosion resistance with uniform coating, provides 5 times more protection over conventional painting, resulting in longer life |
| Design to Prevent Overloading | Lesser chances of motor burning as motor did not get overloaded even if the pump is operated at a head lower than recommended and saving substantial cost from maintenance and breakdown. |
| Glycol-Mixed Water | Motors filled with specially developed Glycol mixed water to improve the anti-freezing properties of motor and prevent corrosion. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Kirloskar 7.5 HP 4 Stage 150 mm(6 Inch) Three Phase Water Filled Borewell Submersible Pump (KS6G-0804R)
Kirloskar 7.5 HP 4 Stage 150 mm(6 Inch) Three Phase Water Filled Borewell Submersible Pump (KS6G-0804R) is listed under Submersible Pump in Water Pumps and Motors on ToolHaat, supplied by Kirloskar. Key specifications include power 7.5 hp, weight (approx.) 93.195 kg, flow rate 1200 lpm, head 48 meter, model no. KS6G-0804R. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
Kirloskar 7.5 HP 4 Stage 150 mm(6 Inch) Three Phase Water Filled Borewell Submersible Pump (KS6G-0804R) specifications
| Power | 7.5 hp |
|---|---|
| Weight (Approx.) | 93.195 kg |
| Flow Rate | 1200 lpm |
| Head | 48 meter |
| Model No. | KS6G-0804R |
| Product Type | Borewell Submersible Pump |
| Electricity Connection | Three Phase |
| Rated Voltage | 415 Volt, 50 Hz |
| No. Of Stages | 4 |
| Delivery Size | 100mm |
| Borewell Size | 150 mm (6 inch) |
| Max. Head | 48 Meter (157 Feet) |
FAQs related to Kirloskar 7.5 HP 4 Stage 150 mm(6 Inch) Three Phase Water Filled Borewell Submersible Pump (KS6G-0804R)
Are spare parts and accessories for Kirloskar 7.5 HP 4 Stage 150 mm(6 Inch) Three Phase Water Filled Borewell Submersible Pump (KS6G-0804R) available separately?
+
Yes — related accessory subcategories on ToolHaat list compatible spares and fittings for Kirloskar 7.5 HP 4 Stage 150 mm(6 Inch) Three Phase Water Filled Borewell Submersible Pump (KS6G-0804R), so replacement parts can be sourced without needing to buy a full new unit.
Does ToolHaat offer installation guidance for Kirloskar 7.5 HP 4 Stage 150 mm(6 Inch) Three Phase Water Filled Borewell Submersible Pump (KS6G-0804R)?
+
Installation requirements vary by Kirloskar 7.5 HP 4 Stage 150 mm(6 Inch) Three Phase Water Filled Borewell Submersible Pump (KS6G-0804R) model — check the product listing for included documentation. For larger installations, our sales team can help connect you with the vendor for on-site guidance where available.
Can contractors or dealers set up recurring bulk orders for Kirloskar 7.5 HP 4 Stage 150 mm(6 Inch) Three Phase Water Filled Borewell Submersible Pump (KS6G-0804R)?
+
Yes — contractors and dealers regularly use ToolHaat for recurring Kirloskar 7.5 HP 4 Stage 150 mm(6 Inch) Three Phase Water Filled Borewell Submersible Pump (KS6G-0804R) procurement. Contact our sales team to set up a standing order arrangement with consistent bulk pricing.
What capacity or specification of Kirloskar 7.5 HP 4 Stage 150 mm(6 Inch) Three Phase Water Filled Borewell Submersible Pump (KS6G-0804R) should I choose?
+
The right Kirloskar 7.5 HP 4 Stage 150 mm(6 Inch) Three Phase Water Filled Borewell Submersible Pump (KS6G-0804R) depends on your required flow rate, head (lift height), and power source — each listing specifies these details. For help matching a pump to your specific application, contact ToolHaat support or submit an RFQ with your requirements.
Is a GST invoice provided for Kirloskar 7.5 HP 4 Stage 150 mm(6 Inch) Three Phase Water Filled Borewell Submersible Pump (KS6G-0804R) purchases?
+
Yes, every Kirloskar 7.5 HP 4 Stage 150 mm(6 Inch) Three Phase Water Filled Borewell Submersible Pump (KS6G-0804R) order generates a GST invoice automatically, suitable for input tax credit claims and standard business procurement records.
