Kirloskar · SKU: thwpm585

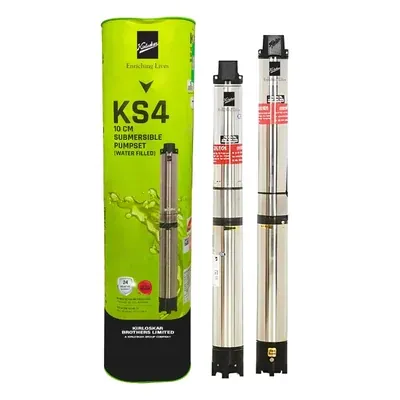

Kirloskar 5 HP 12 Stage 100 mm(4 Inch) 3Phase Water Filled Borewell Submersible Pump, 210 ft Head (KS4H-5012)
In Stock
₹41,579₹54,028-23% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Kirloskar |
| Power | 3.7 kw |
| Weight (Approx.) | 42 kg |
| Flow Rate | 420 lpm |
| Head | 64 meter |
| Model No. | KS4H-5012 |
| Product Type | Borewell Submersible Pump |
| Wattage | 3.7 kW |
| No. of Stages | 12 |
| Power Supply | 415V, 50 Hz, AC Supply |
| Electricity Connection | Three Phase |
| Cooling Type | Water Filled |
| Outlet Size | 65 mm |
| Current Rating | 10.6 Amp |
| Boring Size | 100mm (4 inch) |
| Max. Head | 64 Meter (210 Feet) |
| Max. Discharge Rate | 420 LPM (25200 LPH) |
| Insulation | B Class |
| Protection | IP 68 |
| Winding Materia | Copper |
| Pump Housing | Stainless Steel |
| Pump Shaft | Stainless Steel |
| Motor Housing | Stainless Steel |
| Motor Shaft | Stainless Steel |
| Thrust Bearing | Carbon + Stainless Steel |
| Motor/Pump Bushes | Gun Metal |
| Impeller | Noryl |
| Diffuser | Noryl |
| NRV | Cast Iron |
| Suction | Cast Iron |
| Wide Voltage Design | The motor is designed to withstand wide voltage fluctuations from 280 to 440 volts and reduces motor burning in low voltage |
| High efficiency and Energy Saving Design | Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings. |
| Dynamically Balanced Rotating Parts | Minimum vibrations protect components from damages during the operations, consistent performance as concentricity is maintained |
| Longer and Trouble Free Life | High grade engineering materials like Graded Cast Iron Components, Stainless Steel Shaft, Noryl Impellers, Bronze Bushes, Heavy duty Carbon + SS Thrust Plate, 99.9% pure Copper Rotor and Winding Wires for longer and trouble free life. |
| Advanced Water Cooled Motors Designs | The motor is filled with potable water, protects from overheating and facilitates smoother and trouble free operation for the years. |
| Wide Voltage Motor Designs with 100% Copper Rotor | Motors are designed with extra overload capacities, more water spaces and engineered with 100% pure Electro Grade Copper performs well in low voltage with minimum discharge drops and suitable for wide voltage applications. |
| CED-Cathodic Electro Deposition | CED is the latest coating technology for corrosion resistance with uniform coating, provides 5 times more protection over conventional painting, resulting in longer life. All major Cl parts of Kirloskar pumps coming in contact with the water are CED coated. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Kirloskar 5 HP 12 Stage 100 mm(4 Inch) 3Phase Water Filled Borewell Submersible Pump, 210 ft Head (KS4H-5012)
Kirloskar 5 HP 12 Stage 100 mm(4 Inch) 3Phase Water Filled Borewell Submersible Pump, 210 ft Head (KS4H-5012) is listed under Submersible Pump in Water Pumps and Motors on ToolHaat, supplied by Kirloskar. Key specifications include power 3.7 kw, weight (approx.) 42 kg, flow rate 420 lpm, head 64 meter, model no. KS4H-5012. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
Kirloskar 5 HP 12 Stage 100 mm(4 Inch) 3Phase Water Filled Borewell Submersible Pump, 210 ft Head (KS4H-5012) specifications
| Power | 3.7 kw |
|---|---|
| Weight (Approx.) | 42 kg |
| Flow Rate | 420 lpm |
| Head | 64 meter |
| Model No. | KS4H-5012 |
| Product Type | Borewell Submersible Pump |
| Wattage | 3.7 kW |
| No. of Stages | 12 |
| Power Supply | 415V, 50 Hz, AC Supply |
| Electricity Connection | Three Phase |
| Cooling Type | Water Filled |
| Outlet Size | 65 mm |
