Kirloskar · SKU: thwpm542

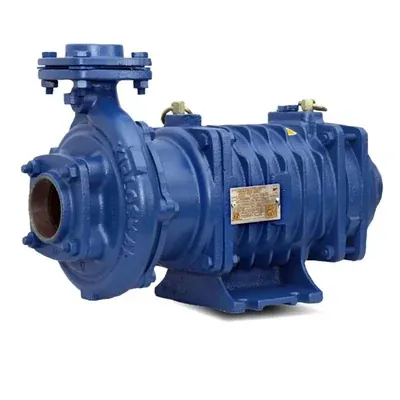

Kirloskar 3 HP Three Phase Openwell Pump, 36 m Max. Head, 390 LPM, 50 x 40 mm (KOS-335)
In Stock
₹30,887₹40,049-23% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Kirloskar |
| Power | 3 hp |
| Weight (Approx.) | 60 kg |
| Flow Rate | 390 lpm |
| Head | 36 meter |
| Model No. | KOS-335 |
| Product Name | Openwell Submersible Pump |
| Wattage | 2.2 kW |
| Electricity Connection | Three Phase |
| Rated Voltage | 380 Volt, 50 Hz |
| Pipe Size | 50x40 mm |
| Head Range | 18 to 36 Meter (59 to 118 Feet) |
| Discharge Range | 390 to 132 LPM (6.5 to 2.2 LPS) |
| No of Stages | 1 |
| Speed | 2840 RPM |
| Minimum Submergence From Bottom | 1000 mm |
| Impeller Material | Cast Iron |
| Delivery Casing | Cast Iron |
| Motor Body | Cast Iron |
| Pump Shaft | Stainless Steel |
| Wide Voltage Motor Designs | These submersible water pumps are designed to withstand wide voltage fluctuations from 350 to 400 Volts and reduce motor burning in case of low voltage |
| Flatter Efficiency Curve | Minimum variations in efficiency during the entire operating range increase the utility of the pump for variable conditions |
| Dynamically Balanced Rotating Parts | Minimum vibrations protect components from damage during operation, resulting in consistent performance |
| Replaceable Wearing Parts | All wearing parts within the pumps are easily accessible and replaceable which facilitates ease of maintenance thereby extending the life of the pump |
| Easy Maintainable Designs | Easily maintainable design and better interchangeability of components so that pump can be serviced even at remote locations by semi-skilled technicians |
| CED coating | CED is the latest coating technology for corrosion resistance with uniform coating, provides 5 times more protection over conventional painting, resulting in longer life |
| High Efficiency and Energy Saving Design | Innovative design manufactured at state of the art, plant ensures optimum efficiency and lower energy consumption resulting in significant cost saving |
| Advanced Water Cooled Motors Designs | The motor is filled with portable water, protects from overheating and facilitates smoother and trouble-free operations for the years |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Kirloskar 3 HP Three Phase Openwell Pump, 36 m Max. Head, 390 LPM, 50 x 40 mm (KOS-335)
Kirloskar 3 HP Three Phase Openwell Pump, 36 m Max. Head, 390 LPM, 50 x 40 mm (KOS-335) is listed under Open Well Pump in Water Pumps and Motors on ToolHaat, supplied by Kirloskar. Key specifications include power 3 hp, weight (approx.) 60 kg, flow rate 390 lpm, head 36 meter, model no. KOS-335. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
Kirloskar 3 HP Three Phase Openwell Pump, 36 m Max. Head, 390 LPM, 50 x 40 mm (KOS-335) specifications
| Power | 3 hp |
|---|---|
| Weight (Approx.) | 60 kg |
| Flow Rate | 390 lpm |
| Head | 36 meter |
| Model No. | KOS-335 |
| Product Name | Openwell Submersible Pump |
| Wattage | 2.2 kW |
| Electricity Connection | Three Phase |
| Rated Voltage | 380 Volt, 50 Hz |
| Pipe Size | 50x40 mm |
| Head Range | 18 to 36 Meter (59 to 118 Feet) |
| Discharge Range | 390 to 132 LPM (6.5 to 2.2 LPS) |
FAQs related to Kirloskar 3 HP Three Phase Openwell Pump, 36 m Max. Head, 390 LPM, 50 x 40 mm (KOS-335)
How is Kirloskar 3 HP Three Phase Openwell Pump, 36 m Max. Head, 390 LPM, 50 x 40 mm (KOS-335) packaged and delivered to avoid transit damage?
+
Kirloskar 3 HP Three Phase Openwell Pump, 36 m Max. Head, 390 LPM, 50 x 40 mm (KOS-335) is shipped in protective packaging designed for the product’s weight and components. Delivery timelines are shown at checkout based on your location — larger installations may need coordinated delivery scheduling, which our sales team can help arrange.
Can I compare multiple brands of Kirloskar 3 HP Three Phase Openwell Pump, 36 m Max. Head, 390 LPM, 50 x 40 mm (KOS-335) before purchasing?
+
Yes — ToolHaat lists Kirloskar 3 HP Three Phase Openwell Pump, 36 m Max. Head, 390 LPM, 50 x 40 mm (KOS-335) from multiple verified vendors at different price points and specifications, letting you compare motor power, material, and price before a bulk purchase decision.
Are spare parts and accessories for Kirloskar 3 HP Three Phase Openwell Pump, 36 m Max. Head, 390 LPM, 50 x 40 mm (KOS-335) available separately?
+
Yes — related accessory subcategories on ToolHaat list compatible spares and fittings for Kirloskar 3 HP Three Phase Openwell Pump, 36 m Max. Head, 390 LPM, 50 x 40 mm (KOS-335), so replacement parts can be sourced without needing to buy a full new unit.
Does ToolHaat offer installation guidance for Kirloskar 3 HP Three Phase Openwell Pump, 36 m Max. Head, 390 LPM, 50 x 40 mm (KOS-335)?
+
Installation requirements vary by Kirloskar 3 HP Three Phase Openwell Pump, 36 m Max. Head, 390 LPM, 50 x 40 mm (KOS-335) model — check the product listing for included documentation. For larger installations, our sales team can help connect you with the vendor for on-site guidance where available.
What capacity or specification of Kirloskar 3 HP Three Phase Openwell Pump, 36 m Max. Head, 390 LPM, 50 x 40 mm (KOS-335) should I choose?
+
The right Kirloskar 3 HP Three Phase Openwell Pump, 36 m Max. Head, 390 LPM, 50 x 40 mm (KOS-335) depends on your required flow rate, head (lift height), and power source — each listing specifies these details. For help matching a pump to your specific application, contact ToolHaat support or submit an RFQ with your requirements.
