Kirloskar · SKU: thwpm543

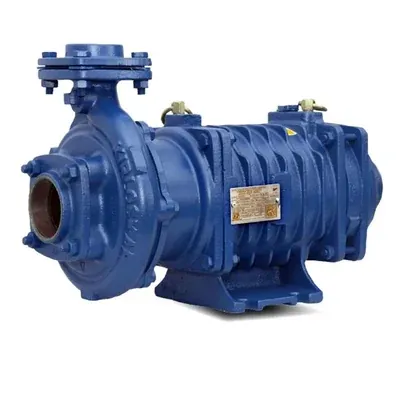

Kirloskar 3 HP Three Phase Openwell Pump, 20 m Max Head, 768 LPM, 65 x 50 mm (KOS-318)
In Stock
₹30,887₹40,049-23% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Kirloskar |
| Power | 3 hp |
| Weight (Approx.) | 65 kg |
| Flow Rate | 768 lpm |
| Head | 20 meter |
| Model No. | KOS-318 |
| Product Name | Openwell Submersible Pump |
| Wattage | 2.2 kW |
| Electricity Connection | Three Phase |
| Rated Voltage | 380 Volt, 50 Hz |
| Pipe Size | 65x50 mm |
| Head Range | 8 to 20 Meter (26 to 65 Feet) |
| Discharge Range | 768 to 288 LPM (12.8 to 4.8 LPS) |
| No of Stages | 1 |
| Minimum Submergence From Bottom | 1000 mm |
| Impeller Material | Cast Iron |
| Delivery Casing | Cast Iron |
| Motor Body | Cast Iron |
| Pump Shaft | Stainless Steel |
| Wide Voltage Design | The motor is designed to withstand wide voltage variation from 200 to 440 volts and reduces motor burning in case of low/high voltage |
| Flatter Efficiency Curve | Minimum variations in efficiency during entire operating range increases the utility of pump set for variable conditions |
| Dynamically Balanced Rotating Parts | Minimum vibration protects the components from damage during the operation, thus ensuring consistent performance as concentricity is maintained |
| Replaceable Wearing Parts | All wearing parts within the pumps are easily accessible and replaceable which facilitates ease of maintenance thereby extending the life of the pump |
| Easy Maintainable Designs | Easy maintainable design and better interchangeability of components so that the pump can be serviced even at remote locations by semi-skilled technicians |
| CED – Cathodic Electro Deposition | CED is the latest coating technology for corrosion resistance with uniform coating. It provides 5 times more protection over conventional painting, resulting in longer life. All major CI parts of Kirloskar pumps coming in contact with the water are CED coated |
| High Efficiency and Energy Saving Design | Innovative design manufactured at state-of-the-art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings |
| Advanced Water Cooled Motors Designs | The motor is filled with potable water which protects it from overheating and facilitates smoother and trouble free operation for years |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Kirloskar 3 HP Three Phase Openwell Pump, 20 m Max Head, 768 LPM, 65 x 50 mm (KOS-318)
Kirloskar 3 HP Three Phase Openwell Pump, 20 m Max Head, 768 LPM, 65 x 50 mm (KOS-318) is listed under Open Well Pump in Water Pumps and Motors on ToolHaat, supplied by Kirloskar. Key specifications include power 3 hp, weight (approx.) 65 kg, flow rate 768 lpm, head 20 meter, model no. KOS-318. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
Kirloskar 3 HP Three Phase Openwell Pump, 20 m Max Head, 768 LPM, 65 x 50 mm (KOS-318) specifications
| Power | 3 hp |
|---|---|
| Weight (Approx.) | 65 kg |
| Flow Rate | 768 lpm |
| Head | 20 meter |
| Model No. | KOS-318 |
| Product Name | Openwell Submersible Pump |
| Wattage | 2.2 kW |
| Electricity Connection | Three Phase |
| Rated Voltage | 380 Volt, 50 Hz |
| Pipe Size | 65x50 mm |
| Head Range | 8 to 20 Meter (26 to 65 Feet) |
| Discharge Range | 768 to 288 LPM (12.8 to 4.8 LPS) |
FAQs related to Kirloskar 3 HP Three Phase Openwell Pump, 20 m Max Head, 768 LPM, 65 x 50 mm (KOS-318)
How is Kirloskar 3 HP Three Phase Openwell Pump, 20 m Max Head, 768 LPM, 65 x 50 mm (KOS-318) packaged and delivered to avoid transit damage?
+
Kirloskar 3 HP Three Phase Openwell Pump, 20 m Max Head, 768 LPM, 65 x 50 mm (KOS-318) is shipped in protective packaging designed for the product’s weight and components. Delivery timelines are shown at checkout based on your location — larger installations may need coordinated delivery scheduling, which our sales team can help arrange.
Can contractors or dealers set up recurring bulk orders for Kirloskar 3 HP Three Phase Openwell Pump, 20 m Max Head, 768 LPM, 65 x 50 mm (KOS-318)?
+
Yes — contractors and dealers regularly use ToolHaat for recurring Kirloskar 3 HP Three Phase Openwell Pump, 20 m Max Head, 768 LPM, 65 x 50 mm (KOS-318) procurement. Contact our sales team to set up a standing order arrangement with consistent bulk pricing.
Does Kirloskar 3 HP Three Phase Openwell Pump, 20 m Max Head, 768 LPM, 65 x 50 mm (KOS-318) come with a manufacturer warranty?
+
Warranty coverage for Kirloskar 3 HP Three Phase Openwell Pump, 20 m Max Head, 768 LPM, 65 x 50 mm (KOS-318) varies by brand and is listed on the product page. ToolHaat support can help connect you with the vendor for warranty claims or servicing after your purchase.
Is a GST invoice provided for Kirloskar 3 HP Three Phase Openwell Pump, 20 m Max Head, 768 LPM, 65 x 50 mm (KOS-318) purchases?
+
Yes, every Kirloskar 3 HP Three Phase Openwell Pump, 20 m Max Head, 768 LPM, 65 x 50 mm (KOS-318) order generates a GST invoice automatically, suitable for input tax credit claims and standard business procurement records.
Can I get bulk pricing for Kirloskar 3 HP Three Phase Openwell Pump, 20 m Max Head, 768 LPM, 65 x 50 mm (KOS-318) if I need multiple units?
+
Yes — Kirloskar 3 HP Three Phase Openwell Pump, 20 m Max Head, 768 LPM, 65 x 50 mm (KOS-318) uses tiered bulk pricing on ToolHaat, with unit cost decreasing at higher order quantities. For distributor or contractor-level volumes, use the RFQ feature for a dedicated quote.
