Kirloskar · SKU: thwpm545

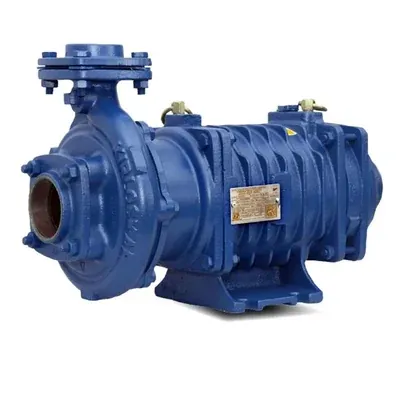

Kirloskar 3 HP Three Phase Openwell Pump, 16 m Max. Head, 960 LPM, 80 x 80 mm (KOS-314)
In Stock
₹30,887₹40,049-23% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Kirloskar |
| Power | 3 hp |
| Weight (Approx.) | 65 kg |
| Flow Rate | 960 lpm |
| Head | 16 meter |
| Model No. | KOS-314 |
| Product Name | Openwell Submersible Pump |
| Wattage | 2.2 kW |
| Electricity Connection | Three Phase |
| Rated Voltage | 380 Volt, 50 Hz |
| Pipe Size | 80x80mm |
| Head Range | 8 to 16 Meter (26 to 52 Feet) |
| Discharge Range | 960 to 300 LPM (16 to 5 LPS) |
| No of Stages | 1 |
| Speed | 2890 RPM |
| Minimum Submergence From Bottom | 1000 mm |
| Impeller Material | Cast Iron |
| Delivery Casing | Cast Iron |
| Motor Body | Cast Iron |
| Pump Shaft | Stainless Steel |
| Wide Voltage Motor Designs | The Motor are designed to withstand wide voltage fluctuations from 350 to 400 Volts and reduces motor burning in case of low voltage |
| Flatter Efficiency Curve | Minimum variations in efficiency during the entire operating range increase the utility of pump set for variable conditions |
| Dynamically Balanced Rotating Parts | Minimum vibrations protect components from damage during operation, resulting in consistent performance as concentricity is maintained |
| Replaceable Wearing Parts | All wearing parts within the pumps are easily accessible and replaceable which facilitates ease of maintenance thereby extending the life of the pump |
| Easy Maintainable Designs | Easily maintainable design and better interchangeability of components so that pump can be serviced even at remote locations by semi-skilled technicians |
| CED coating | CED is the latest coating technology for corrosion resistance with uniform coating, provides 5 times more protection over conventional painting, resulting in longer life |
| High Efficiency and Energy Saving Design | Innovative design manufactured at state of the art, plant ensures optimum efficiency and lower energy consumption resulting in significant cost saving |
| Advanced Water Cooled Motors Designs | The motor is filled with portable water, protects from overheating and facilitates smoother and trouble free operations for the years |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Kirloskar 3 HP Three Phase Openwell Pump, 16 m Max. Head, 960 LPM, 80 x 80 mm (KOS-314)
Kirloskar 3 HP Three Phase Openwell Pump, 16 m Max. Head, 960 LPM, 80 x 80 mm (KOS-314) is listed under Open Well Pump in Water Pumps and Motors on ToolHaat, supplied by Kirloskar. Key specifications include power 3 hp, weight (approx.) 65 kg, flow rate 960 lpm, head 16 meter, model no. KOS-314. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
Kirloskar 3 HP Three Phase Openwell Pump, 16 m Max. Head, 960 LPM, 80 x 80 mm (KOS-314) specifications
| Power | 3 hp |
|---|---|
| Weight (Approx.) | 65 kg |
| Flow Rate | 960 lpm |
| Head | 16 meter |
| Model No. | KOS-314 |
| Product Name | Openwell Submersible Pump |
| Wattage | 2.2 kW |
| Electricity Connection | Three Phase |
| Rated Voltage | 380 Volt, 50 Hz |
| Pipe Size | 80x80mm |
| Head Range | 8 to 16 Meter (26 to 52 Feet) |
| Discharge Range | 960 to 300 LPM (16 to 5 LPS) |
FAQs related to Kirloskar 3 HP Three Phase Openwell Pump, 16 m Max. Head, 960 LPM, 80 x 80 mm (KOS-314)
Does Kirloskar 3 HP Three Phase Openwell Pump, 16 m Max. Head, 960 LPM, 80 x 80 mm (KOS-314) come with a manufacturer warranty?
+
Warranty coverage for Kirloskar 3 HP Three Phase Openwell Pump, 16 m Max. Head, 960 LPM, 80 x 80 mm (KOS-314) varies by brand and is listed on the product page. ToolHaat support can help connect you with the vendor for warranty claims or servicing after your purchase.
What if Kirloskar 3 HP Three Phase Openwell Pump, 16 m Max. Head, 960 LPM, 80 x 80 mm (KOS-314) arrives with a manufacturing defect?
+
Contact ToolHaat support with your order ID if Kirloskar 3 HP Three Phase Openwell Pump, 16 m Max. Head, 960 LPM, 80 x 80 mm (KOS-314) shows a manufacturing defect on arrival. Replacement or refund is handled per our returns policy in coordination with the listing vendor.
Can contractors or dealers set up recurring bulk orders for Kirloskar 3 HP Three Phase Openwell Pump, 16 m Max. Head, 960 LPM, 80 x 80 mm (KOS-314)?
+
Yes — contractors and dealers regularly use ToolHaat for recurring Kirloskar 3 HP Three Phase Openwell Pump, 16 m Max. Head, 960 LPM, 80 x 80 mm (KOS-314) procurement. Contact our sales team to set up a standing order arrangement with consistent bulk pricing.
What capacity or specification of Kirloskar 3 HP Three Phase Openwell Pump, 16 m Max. Head, 960 LPM, 80 x 80 mm (KOS-314) should I choose?
+
The right Kirloskar 3 HP Three Phase Openwell Pump, 16 m Max. Head, 960 LPM, 80 x 80 mm (KOS-314) depends on your required flow rate, head (lift height), and power source — each listing specifies these details. For help matching a pump to your specific application, contact ToolHaat support or submit an RFQ with your requirements.
Can I compare multiple brands of Kirloskar 3 HP Three Phase Openwell Pump, 16 m Max. Head, 960 LPM, 80 x 80 mm (KOS-314) before purchasing?
+
Yes — ToolHaat lists Kirloskar 3 HP Three Phase Openwell Pump, 16 m Max. Head, 960 LPM, 80 x 80 mm (KOS-314) from multiple verified vendors at different price points and specifications, letting you compare motor power, material, and price before a bulk purchase decision.
