Kirloskar · SKU: thwpm1028

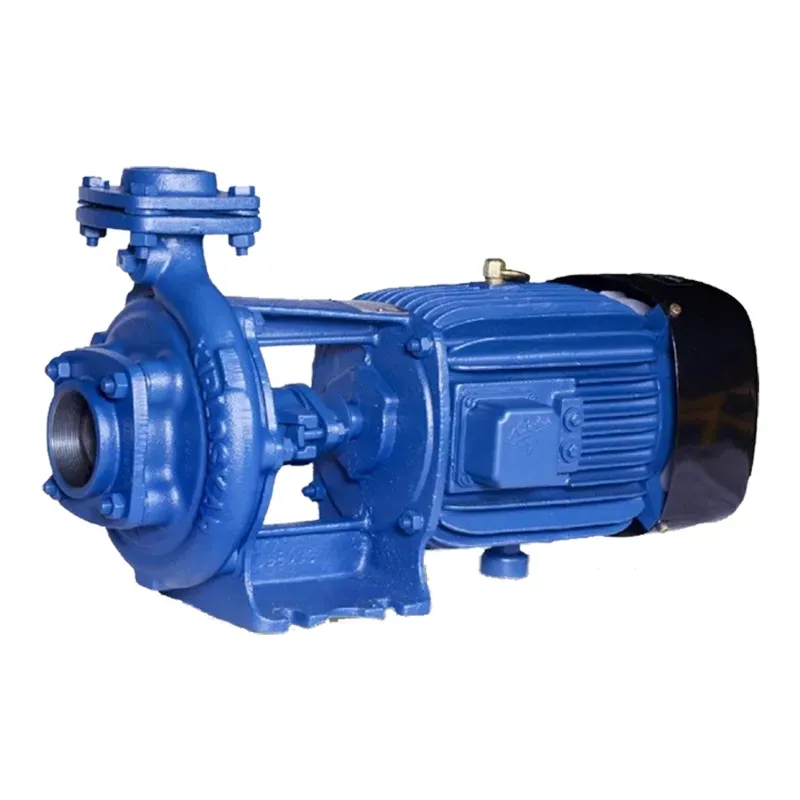

Kirloskar 3 HP Three Phase Centrifugal Monoblock Pump, 14 m Max. Head, 68400 LPH, 80 x 80 mm (KDS-314)
In Stock
₹30,689₹49,000-37% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Kirloskar |
| Power | 3 hp |
| Weight (Approx.) | 64 kg |
| Flow Rate | 1140 lpm |
| Head | 14 meter |
| Model No. | KDS-314+ |
| Product Type | Monoblock Pump |
| Wattage | 2.2 kW |
| Electricity Connection | Three Phase |
| Head Range | 20 to 46 Feet (6 to 14 meters) |
| Protection | IP 44 |
| Pipe Size (Suction x Delivery) | 80 x 80 mm |
| Discharge Rate | 1140-720 LPM (68400-43200 LPH) |
| Impeller | Cast Iron/Noryl |
| Delivery Casing | Cast Iron |
| Motor Body | Cast Iron |
| Pump Shaft | Carbon Steel |
| Sealing | Mechanical Seal |
| Wide Voltage Design | The motor is designed to withstand wide voltage fluctuations from 350 to 440 volts and reduces motor burning in case of low voltage. |
| Replaceable Wearing Parts | All wearing parts within the pumps are easily accessible and replaceable which facilitates ease of maintenance thereby extending the life of the pump. |
| TOP - Thermal Overload Protector | The pump set features a Thermal Overload protector that protects the motor from overloading, shielding the motor and associated circuit from the effects of fault current. |
| CED – Cathodic Electro Deposition | CED is the latest coating technology for corrosion resistance with uniform coating. It provides 5 times more protection over conventional painting, resulting in longer life. All major CI parts of Kirloskar pumps coming in contact with the water are CED coated. |
| Automatic Air Release | Automatically releases air when the pump starts which ensures swifter and smoother operations, thus eliminates the necessity of operating air release cock and ensures swifter and smoother operations. |
| High Efficiency And Energy Saving Design | Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings. |
| Dynamically Balanced Rotating Parts | Minimum vibrations protect components from damages during the operations, thus ensuring consistent performance as concentricity is maintained. |
| Designed to Prevent Overloading | Lesser chances of motor burning as the motor does not get overloaded even if the pump is operated at a head lower than recommended, thus ensuring substantial cost savings due to low maintenance and breakdown. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Kirloskar 3 HP Three Phase Centrifugal Monoblock Pump, 14 m Max. Head, 68400 LPH, 80 x 80 mm (KDS-314)
Kirloskar 3 HP Three Phase Centrifugal Monoblock Pump, 14 m Max. Head, 68400 LPH, 80 x 80 mm (KDS-314) is listed under Monoblock Pump in Water Pumps and Motors on ToolHaat, supplied by Kirloskar. Key specifications include power 3 hp, weight (approx.) 64 kg, flow rate 1140 lpm, head 14 meter, model no. KDS-314+. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
Kirloskar 3 HP Three Phase Centrifugal Monoblock Pump, 14 m Max. Head, 68400 LPH, 80 x 80 mm (KDS-314) specifications
| Power | 3 hp |
|---|---|
| Weight (Approx.) | 64 kg |
| Flow Rate | 1140 lpm |
| Head | 14 meter |
| Model No. | KDS-314+ |
| Product Type | Monoblock Pump |
| Wattage | 2.2 kW |
| Electricity Connection | Three Phase |
| Head Range | 20 to 46 Feet (6 to 14 meters) |
| Protection | IP 44 |
| Pipe Size (Suction x Delivery) | 80 x 80 mm |
| Discharge Rate | 1140-720 LPM (68400-43200 LPH) |
FAQs related to Kirloskar 3 HP Three Phase Centrifugal Monoblock Pump, 14 m Max. Head, 68400 LPH, 80 x 80 mm (KDS-314)
Can contractors or dealers set up recurring bulk orders for Kirloskar 3 HP Three Phase Centrifugal Monoblock Pump, 14 m Max. Head, 68400 LPH, 80 x 80 mm (KDS-314)?
+
Yes — contractors and dealers regularly use ToolHaat for recurring Kirloskar 3 HP Three Phase Centrifugal Monoblock Pump, 14 m Max. Head, 68400 LPH, 80 x 80 mm (KDS-314) procurement. Contact our sales team to set up a standing order arrangement with consistent bulk pricing.
Are spare parts and accessories for Kirloskar 3 HP Three Phase Centrifugal Monoblock Pump, 14 m Max. Head, 68400 LPH, 80 x 80 mm (KDS-314) available separately?
+
Yes — related accessory subcategories on ToolHaat list compatible spares and fittings for Kirloskar 3 HP Three Phase Centrifugal Monoblock Pump, 14 m Max. Head, 68400 LPH, 80 x 80 mm (KDS-314), so replacement parts can be sourced without needing to buy a full new unit.
How is Kirloskar 3 HP Three Phase Centrifugal Monoblock Pump, 14 m Max. Head, 68400 LPH, 80 x 80 mm (KDS-314) packaged and delivered to avoid transit damage?
+
Kirloskar 3 HP Three Phase Centrifugal Monoblock Pump, 14 m Max. Head, 68400 LPH, 80 x 80 mm (KDS-314) is shipped in protective packaging designed for the product’s weight and components. Delivery timelines are shown at checkout based on your location — larger installations may need coordinated delivery scheduling, which our sales team can help arrange.
Is a GST invoice provided for Kirloskar 3 HP Three Phase Centrifugal Monoblock Pump, 14 m Max. Head, 68400 LPH, 80 x 80 mm (KDS-314) purchases?
+
Yes, every Kirloskar 3 HP Three Phase Centrifugal Monoblock Pump, 14 m Max. Head, 68400 LPH, 80 x 80 mm (KDS-314) order generates a GST invoice automatically, suitable for input tax credit claims and standard business procurement records.
Can I get bulk pricing for Kirloskar 3 HP Three Phase Centrifugal Monoblock Pump, 14 m Max. Head, 68400 LPH, 80 x 80 mm (KDS-314) if I need multiple units?
+
Yes — Kirloskar 3 HP Three Phase Centrifugal Monoblock Pump, 14 m Max. Head, 68400 LPH, 80 x 80 mm (KDS-314) uses tiered bulk pricing on ToolHaat, with unit cost decreasing at higher order quantities. For distributor or contractor-level volumes, use the RFQ feature for a dedicated quote.
