Kirloskar · SKU: thwpm534

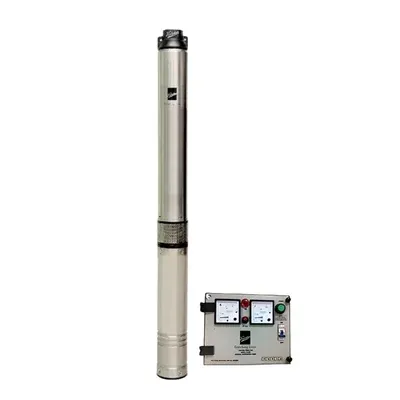

Kirloskar 3 HP 9 Stage(4 Inch) 1Phase Oil Filled Submersible Pump With CP (KP4 JALRAAJ UVA 250-3009 CP)
In Stock
₹33,263₹45,000-26% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Kirloskar |
| Power | 3 hp |
| Weight (Approx.) | 28 kg |
| Flow Rate | 350 lpm |
| Head | 50 meter |
| Model No | KP4 JALRAAJ UVA 250-3009 CP |
| Product Type | Borewell Submersible Pump |
| Wattage | 2.20 kW |
| Electricity Connection | Single Phase |
| Voltage | 220 Volt, 50 Hz, AC Power Supply |
| Rated Current | 16 Amp. |
| Cooling Type | Oil Filled |
| No. Of Stage | 8 |
| Outlet Size. | 32 mm |
| Head Range | 50 to 14 Meter (164 to 46 Foot) |
| Discharge Range | 0 to 350 LPM (0 to 21000 LPH) |
| Borewell Size | 100 mm(4 inch) |
| Insulation | F Class |
| Protection | IP 68 |
| Winding Material | Copper |
| Pump Housing | Stainless Steel |
| Pump Shaft | Stainless Steel |
| Motor Housing | Stainless Steel |
| Motor Shaft | Stainless Steel |
| Motor Bearing | Ball Bearing |
| Pump Bushes | NBR |
| Impeller | Noryl |
| Diffuser | Noryl |
| NRV | Cast Iron |
| Suction | Cast Iron |
| High Efficiency And Energy Saving Design | Higher output, lesser power consumption. |
| Wide Voltage Design | The voltage range is 150 to 240 Volts. It protects the motor from burning due to lower/higher voltage. |
| Dynamically Balanced Rotating Parts | Resulting in lesser vibrations and longer trouble-free operation. |
| Designed To Prevent Overloading | Lesser chances of motor burning as motor did not get overloaded even if the pump is operated at a head lower than recommended and saving substantial cost from maintenance and breakdown. |
| Lightweight And Compact Design | Constructed with special grade engineering materials, compact designs for ease of handling and installation. |
| Flatter Efficiency Curve | Minimal drop in efficiency during entire operating range, resulting in lower operating cost. |
| Suitable For Horizontal Applications | High capacity angular ball bearing motor construction suited to operate in the horizontal position. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Kirloskar 3 HP 9 Stage(4 Inch) 1Phase Oil Filled Submersible Pump With CP (KP4 JALRAAJ UVA 250-3009 CP)
Kirloskar 3 HP 9 Stage(4 Inch) 1Phase Oil Filled Submersible Pump With CP (KP4 JALRAAJ UVA 250-3009 CP) is listed under Submersible Pump in Water Pumps and Motors on ToolHaat, supplied by Kirloskar. Key specifications include power 3 hp, weight (approx.) 28 kg, flow rate 350 lpm, head 50 meter, model no KP4 JALRAAJ UVA 250-3009 CP. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
Kirloskar 3 HP 9 Stage(4 Inch) 1Phase Oil Filled Submersible Pump With CP (KP4 JALRAAJ UVA 250-3009 CP) specifications
| Power | 3 hp |
|---|---|
| Weight (Approx.) | 28 kg |
| Flow Rate | 350 lpm |
| Head | 50 meter |
| Model No | KP4 JALRAAJ UVA 250-3009 CP |
| Product Type | Borewell Submersible Pump |
| Wattage | 2.20 kW |
| Electricity Connection | Single Phase |
| Voltage | 220 Volt, 50 Hz, AC Power Supply |
| Rated Current | 16 Amp. |
| Cooling Type | Oil Filled |
| No. Of Stage | 8 |
FAQs related to Kirloskar 3 HP 9 Stage(4 Inch) 1Phase Oil Filled Submersible Pump With CP (KP4 JALRAAJ UVA 250-3009 CP)
Can I compare multiple brands of Kirloskar 3 HP 9 Stage(4 Inch) 1Phase Oil Filled Submersible Pump With CP (KP4 JALRAAJ UVA 250-3009 CP) before purchasing?
+
Yes — ToolHaat lists Kirloskar 3 HP 9 Stage(4 Inch) 1Phase Oil Filled Submersible Pump With CP (KP4 JALRAAJ UVA 250-3009 CP) from multiple verified vendors at different price points and specifications, letting you compare motor power, material, and price before a bulk purchase decision.
Can I get bulk pricing for Kirloskar 3 HP 9 Stage(4 Inch) 1Phase Oil Filled Submersible Pump With CP (KP4 JALRAAJ UVA 250-3009 CP) if I need multiple units?
+
Yes — Kirloskar 3 HP 9 Stage(4 Inch) 1Phase Oil Filled Submersible Pump With CP (KP4 JALRAAJ UVA 250-3009 CP) uses tiered bulk pricing on ToolHaat, with unit cost decreasing at higher order quantities. For distributor or contractor-level volumes, use the RFQ feature for a dedicated quote.
How is Kirloskar 3 HP 9 Stage(4 Inch) 1Phase Oil Filled Submersible Pump With CP (KP4 JALRAAJ UVA 250-3009 CP) packaged and delivered to avoid transit damage?
+
Kirloskar 3 HP 9 Stage(4 Inch) 1Phase Oil Filled Submersible Pump With CP (KP4 JALRAAJ UVA 250-3009 CP) is shipped in protective packaging designed for the product’s weight and components. Delivery timelines are shown at checkout based on your location — larger installations may need coordinated delivery scheduling, which our sales team can help arrange.
Does Kirloskar 3 HP 9 Stage(4 Inch) 1Phase Oil Filled Submersible Pump With CP (KP4 JALRAAJ UVA 250-3009 CP) come with a manufacturer warranty?
+
Warranty coverage for Kirloskar 3 HP 9 Stage(4 Inch) 1Phase Oil Filled Submersible Pump With CP (KP4 JALRAAJ UVA 250-3009 CP) varies by brand and is listed on the product page. ToolHaat support can help connect you with the vendor for warranty claims or servicing after your purchase.
Are spare parts and accessories for Kirloskar 3 HP 9 Stage(4 Inch) 1Phase Oil Filled Submersible Pump With CP (KP4 JALRAAJ UVA 250-3009 CP) available separately?
+
Yes — related accessory subcategories on ToolHaat list compatible spares and fittings for Kirloskar 3 HP 9 Stage(4 Inch) 1Phase Oil Filled Submersible Pump With CP (KP4 JALRAAJ UVA 250-3009 CP), so replacement parts can be sourced without needing to buy a full new unit.
