Kirloskar · SKU: thwpm939

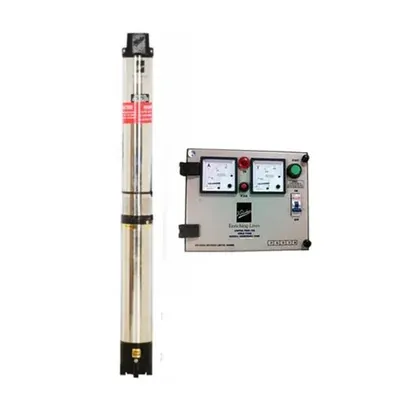

Kirloskar 3 HP 7 Stage 4 Inch 1Phase Water Filled Submersible Pump With CP, 125 ft Head (KS4H-3007, CP)
In Stock
₹36,332₹47,210-23% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Kirloskar |
| Power | 3 hp |
| Weight (Approx.) | 38.1 kg |
| Flow Rate | 420 lpm |
| Head | 38 meter |
| Model No. | KS4H-3007 - CP |
| Product Type | Borewell Submersible Pump |
| Power Source | Corded Electric |
| Wattage | 2.2 kW |
| Power Supply | 220V, 50 Hz, AC Supply |
| Electricity Connection | Single Phase |
| Cooling Type | Water Filled |
| Current Rating | 19.8 Amp |
| Boring Size | 4 Inch (100 mm) |
| Max. Head | 125 Feet (38 Meters) |
| Outlet Pipe (Size) | 65 mm |
| No. of Stages | 7 |
| Max. Discharge Rate | 420 LPM (25200 LPH) |
| Winding Material | Copper |
| Pump Housing | Stainless Steel |
| Pump Shaft | Stainless Steel |
| Motor Housing | Stainless Steel |
| Motor Shaft | Stainless Steel |
| Thrust Bearing | Carbon + Stainless Steel |
| Motor/Pump Bushes | Gun Metal |
| Impeller | Noryl |
| Diffuser | Noryl |
| NRV | Cast Iron |
| Suction | Cast Iron |
| Wide Voltage Design | The motor is designed to withstand wide voltage fluctuations and reduces motor burning in low voltage. |
| High efficiency and Energy Saving Design | Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings. |
| Dynamically Balanced Rotating Parts | Minimum vibrations protect components from damages during the operations, consistent performance as concentricity is maintained. |
| Longer and Trouble Free Life | High grade engineering materials like Graded Cast Iron Components, Stainless Steel Shaft, Noryl Impellers, Bronze Bushes, Heavy duty Carbon + SS Thrust Plate. 99.9% pure Copper Rotor and Winding Wires for longer and trouble free life. |
| Advanced Water Cooled Motors Designs | The motor is filled with potable water, protects from overheating and facilitates smoother and trouble free operation for the years. |
| Wide Voltage Motor Designs with 100% Copper Rotor | Motors are designed with extra overload capacities, more water spaces and engineered with 100% pure Electro Grade Copper performs well in low voltage with minimum discharge drops and suitable for wide voltage applications. |
| CED-Cathodic Electro Deposition | CED is the latest coating technology for corrosion resistance with uniform coating, provides 5 times more protection over conventional painting, resulting in longer life. All major Cl parts of Kirloskar pumps coming in contact with the water are CED coated. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Kirloskar 3 HP 7 Stage 4 Inch 1Phase Water Filled Submersible Pump With CP, 125 ft Head (KS4H-3007, CP)
Kirloskar 3 HP 7 Stage 4 Inch 1Phase Water Filled Submersible Pump With CP, 125 ft Head (KS4H-3007, CP) is listed under Submersible Pump in Water Pumps and Motors on ToolHaat, supplied by Kirloskar. Key specifications include power 3 hp, weight (approx.) 38.1 kg, flow rate 420 lpm, head 38 meter, model no. KS4H-3007 - CP. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
Kirloskar 3 HP 7 Stage 4 Inch 1Phase Water Filled Submersible Pump With CP, 125 ft Head (KS4H-3007, CP) specifications
| Power | 3 hp |
|---|---|
| Weight (Approx.) | 38.1 kg |
| Flow Rate | 420 lpm |
| Head | 38 meter |
| Model No. | KS4H-3007 - CP |
| Product Type | Borewell Submersible Pump |
| Power Source | Corded Electric |
| Wattage | 2.2 kW |
| Power Supply | 220V, 50 Hz, AC Supply |
| Electricity Connection | Single Phase |
| Cooling Type | Water Filled |
| Current Rating | 19.8 Amp |
FAQs related to Kirloskar 3 HP 7 Stage 4 Inch 1Phase Water Filled Submersible Pump With CP, 125 ft Head (KS4H-3007, CP)
Is a GST invoice provided for Kirloskar 3 HP 7 Stage 4 Inch 1Phase Water Filled Submersible Pump With CP, 125 ft Head (KS4H-3007, CP) purchases?
+
Yes, every Kirloskar 3 HP 7 Stage 4 Inch 1Phase Water Filled Submersible Pump With CP, 125 ft Head (KS4H-3007, CP) order generates a GST invoice automatically, suitable for input tax credit claims and standard business procurement records.
Can contractors or dealers set up recurring bulk orders for Kirloskar 3 HP 7 Stage 4 Inch 1Phase Water Filled Submersible Pump With CP, 125 ft Head (KS4H-3007, CP)?
+
Yes — contractors and dealers regularly use ToolHaat for recurring Kirloskar 3 HP 7 Stage 4 Inch 1Phase Water Filled Submersible Pump With CP, 125 ft Head (KS4H-3007, CP) procurement. Contact our sales team to set up a standing order arrangement with consistent bulk pricing.
What capacity or specification of Kirloskar 3 HP 7 Stage 4 Inch 1Phase Water Filled Submersible Pump With CP, 125 ft Head (KS4H-3007, CP) should I choose?
+
The right Kirloskar 3 HP 7 Stage 4 Inch 1Phase Water Filled Submersible Pump With CP, 125 ft Head (KS4H-3007, CP) depends on your required flow rate, head (lift height), and power source — each listing specifies these details. For help matching a pump to your specific application, contact ToolHaat support or submit an RFQ with your requirements.
How is Kirloskar 3 HP 7 Stage 4 Inch 1Phase Water Filled Submersible Pump With CP, 125 ft Head (KS4H-3007, CP) packaged and delivered to avoid transit damage?
+
Kirloskar 3 HP 7 Stage 4 Inch 1Phase Water Filled Submersible Pump With CP, 125 ft Head (KS4H-3007, CP) is shipped in protective packaging designed for the product’s weight and components. Delivery timelines are shown at checkout based on your location — larger installations may need coordinated delivery scheduling, which our sales team can help arrange.
Does Kirloskar 3 HP 7 Stage 4 Inch 1Phase Water Filled Submersible Pump With CP, 125 ft Head (KS4H-3007, CP) come with a manufacturer warranty?
+
Warranty coverage for Kirloskar 3 HP 7 Stage 4 Inch 1Phase Water Filled Submersible Pump With CP, 125 ft Head (KS4H-3007, CP) varies by brand and is listed on the product page. ToolHaat support can help connect you with the vendor for warranty claims or servicing after your purchase.
