Kirloskar · SKU: thwpm524

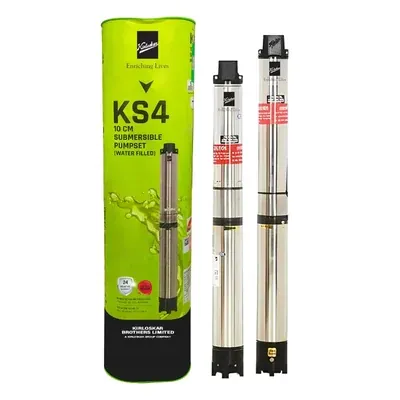

Kirloskar 3 HP 22 Stage 100 mm(4 Inch) 3 Phase Water Filled Borewell Submersible Pump, 178 m Head (KS4C-3022)
In Stock
₹32,669₹42,450-23% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Product Type | Borewell Submersible Pump |
| Wattage | 2.2 kW |
| No. of Stages | 22 |
| Power Supply | 415V, 50 Hz, AC Supply |
| Brand | Kirloskar |
| Power | 3 hp |
| Weight (Approx.) | 36 kg |
| Flow Rate | 90 lpm |
| Head | 178 meter |
| Model No. | KS4C-3022 |
| Electricity Connection | Three Phase |
| Cooling Type | Water Filled |
| Outlet Size | 38 mm |
| Current Rating | 6.9 Amp |
| Boring Size | 100mm (4 inch) |
| Max. Head | 178 Meter (584 Feet) |
| Max. Discharge Rate | 90 LPM (5400 LPH) |
| Insulation | B Class |
| Protection | IP 68 |
| Winding Material | Copper |
| Pump Housing | Stainless Steel |
| Pump Shaft | Stainless Steel |
| Motor Housing | Stainless Steel |
| Motor Shaft | Stainless Steel |
| Thrust Bearing | Carbon + Stainless Steel |
| Motor/Pump Bushes | Gun Metal |
| Impeller | Noryl |
| Diffuser | Noryl |
| NRV | Cast Iron |
| Suction | Cast Iron |
| Wide Voltage Design | The motor is designed to withstand wide voltage fluctuations from 280 to 440 volts and reduces motor burning in low voltage |
| High efficiency and Energy Saving Design | Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings. |
| Dynamically Balanced Rotating Parts | Minimum vibrations protect components from damages during the operations, consistent performance as concentricity is maintained |
| Longer and Trouble Free Life | High grade engineering materials like Graded Cast Iron Components, Stainless Steel Shaft, Noryl Impellers, Bronze Bushes, Heavy duty Carbon + SS Thrust Plate, 99.9% pure Copper Rotor and Winding Wires for longer and trouble free life. |
| Advanced Water Cooled Motors Designs | The motor is filled with potable water, protects from overheating and facilitates smoother and trouble free operation for the years. |
| Wide Voltage Motor Designs with 100% Copper Rotor | Motors are designed with extra overload capacities, more water spaces and engineered with 100% pure Electro Grade Copper performs well in low voltage with minimum discharge drops and suitable for wide voltage applications. |
| CED-Cathodic Electro Deposition | CED is the latest coating technology for corrosion resistance with uniform coating, provides 5 times more protection over conventional painting, resulting in longer life. All major Cl parts of Kirloskar pumps coming in contact with the water are CED coated. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Kirloskar 3 HP 22 Stage 100 mm(4 Inch) 3 Phase Water Filled Borewell Submersible Pump, 178 m Head (KS4C-3022)
Kirloskar 3 HP 22 Stage 100 mm(4 Inch) 3 Phase Water Filled Borewell Submersible Pump, 178 m Head (KS4C-3022) is listed under Submersible Pump in Water Pumps and Motors on ToolHaat, supplied by Kirloskar. Key specifications include product type Borewell Submersible Pump, wattage 2.2 kW, no. of stages 22, power supply 415V, 50 Hz, AC Supply, power 3 hp. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
Kirloskar 3 HP 22 Stage 100 mm(4 Inch) 3 Phase Water Filled Borewell Submersible Pump, 178 m Head (KS4C-3022) specifications
| Product Type | Borewell Submersible Pump |
|---|---|
| Wattage | 2.2 kW |
| No. of Stages | 22 |
| Power Supply | 415V, 50 Hz, AC Supply |
| Power | 3 hp |
| Weight (Approx.) | 36 kg |
| Flow Rate | 90 lpm |
| Head | 178 meter |
| Model No. | KS4C-3022 |
| Electricity Connection | Three Phase |
| Cooling Type | Water Filled |
| Outlet Size | 38 mm |
FAQs related to Kirloskar 3 HP 22 Stage 100 mm(4 Inch) 3 Phase Water Filled Borewell Submersible Pump, 178 m Head (KS4C-3022)
Does Kirloskar 3 HP 22 Stage 100 mm(4 Inch) 3 Phase Water Filled Borewell Submersible Pump, 178 m Head (KS4C-3022) come with a manufacturer warranty?
+
Warranty coverage for Kirloskar 3 HP 22 Stage 100 mm(4 Inch) 3 Phase Water Filled Borewell Submersible Pump, 178 m Head (KS4C-3022) varies by brand and is listed on the product page. ToolHaat support can help connect you with the vendor for warranty claims or servicing after your purchase.
What if Kirloskar 3 HP 22 Stage 100 mm(4 Inch) 3 Phase Water Filled Borewell Submersible Pump, 178 m Head (KS4C-3022) arrives with a manufacturing defect?
+
Contact ToolHaat support with your order ID if Kirloskar 3 HP 22 Stage 100 mm(4 Inch) 3 Phase Water Filled Borewell Submersible Pump, 178 m Head (KS4C-3022) shows a manufacturing defect on arrival. Replacement or refund is handled per our returns policy in coordination with the listing vendor.
Does ToolHaat offer installation guidance for Kirloskar 3 HP 22 Stage 100 mm(4 Inch) 3 Phase Water Filled Borewell Submersible Pump, 178 m Head (KS4C-3022)?
+
Installation requirements vary by Kirloskar 3 HP 22 Stage 100 mm(4 Inch) 3 Phase Water Filled Borewell Submersible Pump, 178 m Head (KS4C-3022) model — check the product listing for included documentation. For larger installations, our sales team can help connect you with the vendor for on-site guidance where available.
Can I compare multiple brands of Kirloskar 3 HP 22 Stage 100 mm(4 Inch) 3 Phase Water Filled Borewell Submersible Pump, 178 m Head (KS4C-3022) before purchasing?
+
Yes — ToolHaat lists Kirloskar 3 HP 22 Stage 100 mm(4 Inch) 3 Phase Water Filled Borewell Submersible Pump, 178 m Head (KS4C-3022) from multiple verified vendors at different price points and specifications, letting you compare motor power, material, and price before a bulk purchase decision.
What capacity or specification of Kirloskar 3 HP 22 Stage 100 mm(4 Inch) 3 Phase Water Filled Borewell Submersible Pump, 178 m Head (KS4C-3022) should I choose?
+
The right Kirloskar 3 HP 22 Stage 100 mm(4 Inch) 3 Phase Water Filled Borewell Submersible Pump, 178 m Head (KS4C-3022) depends on your required flow rate, head (lift height), and power source — each listing specifies these details. For help matching a pump to your specific application, contact ToolHaat support or submit an RFQ with your requirements.
