Kirloskar · SKU: thwpm970

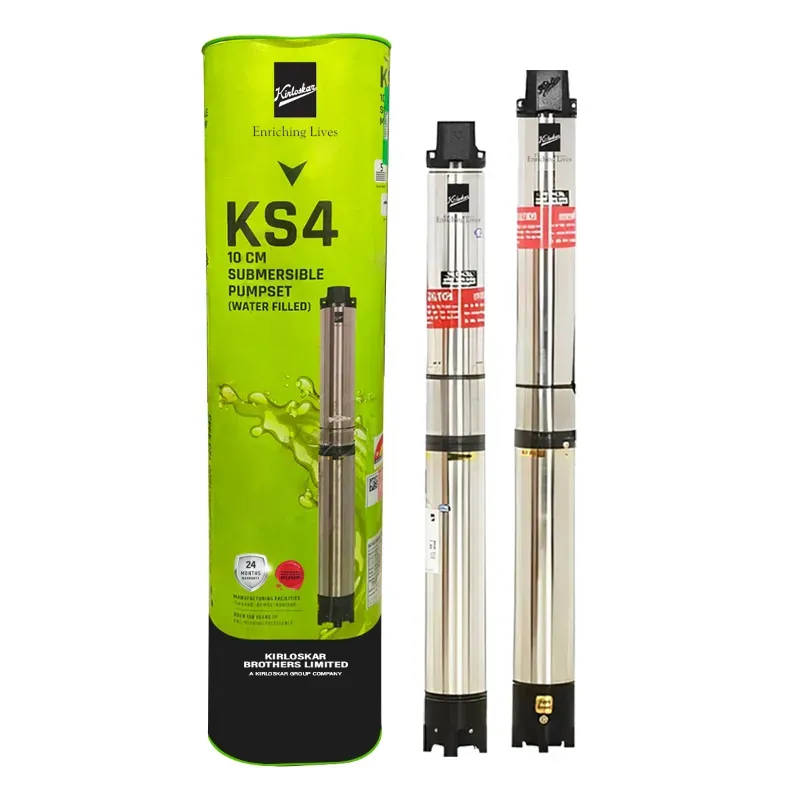

Kirloskar 3 HP 12 Stage 100 mm(4 Inch) 3Phase Water Filled Borewell Submersible Pump, 322 ft Head (KS4E-3012)
In Stock
₹33,659₹43,736-23% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Kirloskar |
| Power | 3 hp |
| Weight (Approx.) | 35 kg |
| Flow Rate | 120 lpm |
| Head | 98 meter |
| Model No. | KS4E-3012 |
| Product Type | Borewell Submersible Pump |
| Wattage | 2.2 kW |
| No. of Stages | 12 |
| Power Supply | 415V, 50 Hz, AC Supply |
| Electricity Connection | Three Phase |
| Cooling Type | Water Filled |
| Outlet Size | 38 mm |
| Current Rating | 6.9 Amp |
| Boring Size | 100mm (4 inch) |
| Max. Head | 98 Meter (322 Feet) |
| Max. Discharge Rate | 120 LPM (7200 LPH) |
| Insulation | B Class |
| Protection | IP 68 |
| Winding Material | Copper |
| Pump Housing | Stainless Steel |
| Pump Shaft | Stainless Steel |
| Motor Housing | Stainless Steel |
| Motor Shaft | Stainless Steel |
| Thrust Bearing | Carbon + Stainless Steel |
| Motor/Pump Bushes | Gun Metal |
| Impeller | Noryl |
| Diffuser | Noryl |
| NRV | Cast Iron |
| Suction | Cast Iron |
| Wide Voltage Design | The motor is designed to withstand wide voltage fluctuations from 280 to 440 volts and reduces motor burning in low voltage |
| High efficiency and Energy Saving Design | Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings. |
| Dynamically Balanced Rotating Parts | Minimum vibrations protect components from damages during the operations, consistent performance as concentricity is maintained |
| Longer and Trouble Free Life | High grade engineering materials like Graded Cast Iron Components, Stainless Steel Shaft, Noryl Impellers, Bronze Bushes, Heavy duty Carbon + SS Thrust Plate, 99.9% pure Copper Rotor and Winding Wires for longer and trouble free life. |
| Advanced Water Cooled Motors Designs | The motor is filled with potable water, protects from overheating and facilitates smoother and trouble free operation for the years. |
| Wide Voltage Motor Designs with 100% Copper Rotor | Motors are designed with extra overload capacities, more water spaces and engineered with 100% pure Electro Grade Copper performs well in low voltage with minimum discharge drops and suitable for wide voltage applications. |
| CED-Cathodic Electro Deposition | CED is the latest coating technology for corrosion resistance with uniform coating, provides 5 times more protection over conventional painting, resulting in longer life. All major Cl parts of Kirloskar pumps coming in contact with the water are CED coated. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Kirloskar 3 HP 12 Stage 100 mm(4 Inch) 3Phase Water Filled Borewell Submersible Pump, 322 ft Head (KS4E-3012)
Kirloskar 3 HP 12 Stage 100 mm(4 Inch) 3Phase Water Filled Borewell Submersible Pump, 322 ft Head (KS4E-3012) is listed under Submersible Pump in Water Pumps and Motors on ToolHaat, supplied by Kirloskar. Key specifications include power 3 hp, weight (approx.) 35 kg, flow rate 120 lpm, head 98 meter, model no. KS4E-3012. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
Kirloskar 3 HP 12 Stage 100 mm(4 Inch) 3Phase Water Filled Borewell Submersible Pump, 322 ft Head (KS4E-3012) specifications
| Power | 3 hp |
|---|---|
| Weight (Approx.) | 35 kg |
| Flow Rate | 120 lpm |
| Head | 98 meter |
| Model No. | KS4E-3012 |
| Product Type | Borewell Submersible Pump |
| Wattage | 2.2 kW |
| No. of Stages | 12 |
| Power Supply | 415V, 50 Hz, AC Supply |
| Electricity Connection | Three Phase |
| Cooling Type | Water Filled |
| Outlet Size | 38 mm |
FAQs related to Kirloskar 3 HP 12 Stage 100 mm(4 Inch) 3Phase Water Filled Borewell Submersible Pump, 322 ft Head (KS4E-3012)
Can I get bulk pricing for Kirloskar 3 HP 12 Stage 100 mm(4 Inch) 3Phase Water Filled Borewell Submersible Pump, 322 ft Head (KS4E-3012) if I need multiple units?
+
Yes — Kirloskar 3 HP 12 Stage 100 mm(4 Inch) 3Phase Water Filled Borewell Submersible Pump, 322 ft Head (KS4E-3012) uses tiered bulk pricing on ToolHaat, with unit cost decreasing at higher order quantities. For distributor or contractor-level volumes, use the RFQ feature for a dedicated quote.
What if Kirloskar 3 HP 12 Stage 100 mm(4 Inch) 3Phase Water Filled Borewell Submersible Pump, 322 ft Head (KS4E-3012) arrives with a manufacturing defect?
+
Contact ToolHaat support with your order ID if Kirloskar 3 HP 12 Stage 100 mm(4 Inch) 3Phase Water Filled Borewell Submersible Pump, 322 ft Head (KS4E-3012) shows a manufacturing defect on arrival. Replacement or refund is handled per our returns policy in coordination with the listing vendor.
Does ToolHaat offer installation guidance for Kirloskar 3 HP 12 Stage 100 mm(4 Inch) 3Phase Water Filled Borewell Submersible Pump, 322 ft Head (KS4E-3012)?
+
Installation requirements vary by Kirloskar 3 HP 12 Stage 100 mm(4 Inch) 3Phase Water Filled Borewell Submersible Pump, 322 ft Head (KS4E-3012) model — check the product listing for included documentation. For larger installations, our sales team can help connect you with the vendor for on-site guidance where available.
Can contractors or dealers set up recurring bulk orders for Kirloskar 3 HP 12 Stage 100 mm(4 Inch) 3Phase Water Filled Borewell Submersible Pump, 322 ft Head (KS4E-3012)?
+
Yes — contractors and dealers regularly use ToolHaat for recurring Kirloskar 3 HP 12 Stage 100 mm(4 Inch) 3Phase Water Filled Borewell Submersible Pump, 322 ft Head (KS4E-3012) procurement. Contact our sales team to set up a standing order arrangement with consistent bulk pricing.
Can I compare multiple brands of Kirloskar 3 HP 12 Stage 100 mm(4 Inch) 3Phase Water Filled Borewell Submersible Pump, 322 ft Head (KS4E-3012) before purchasing?
+
Yes — ToolHaat lists Kirloskar 3 HP 12 Stage 100 mm(4 Inch) 3Phase Water Filled Borewell Submersible Pump, 322 ft Head (KS4E-3012) from multiple verified vendors at different price points and specifications, letting you compare motor power, material, and price before a bulk purchase decision.
