Kirloskar · SKU: thwpm1045

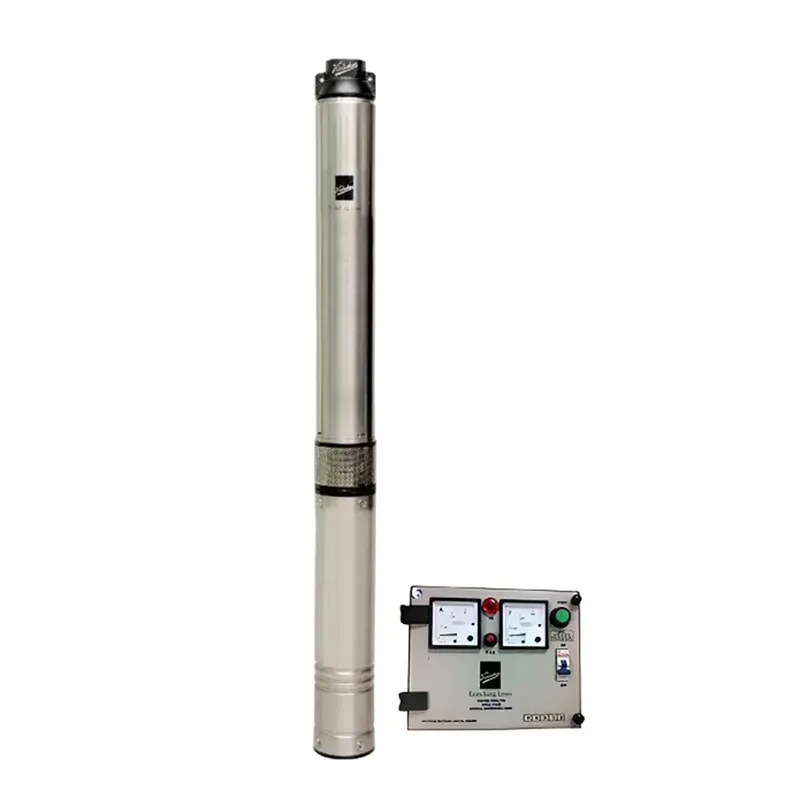

Kirloskar 2 HP 8 Stage(4 Inch) 1Ph Oil Filled Submersible Pump With CP (KP4 JALRAAJ UVA 150-2008 CP)
In Stock
₹20,888₹30,000-30% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Kirloskar |
| Power | 2 hp |
| Weight (Approx.) | 21.60 kg |
| Flow Rate | 195 lpm |
| Head | 52 meter |
| Model No | KP4 JALRAAJ UVA 150-2008 |
| Product Type | Borewell Submersible Pump |
| Wattage | 1.5 kW |
| Electricity Connection | Single Phase |
| Voltage | 220 Volt, 50 Hz, AC Power Supply |
| Rated Current | 11 Amp. |
| Cooling Type | Oil Filled |
| No. Of Stage | 8 |
| Outlet Size. | 50 mm |
| Head Range | 52 to 17 Meter (171 to 56 Foot) |
| Discharge Range | 0 to 195 LPM (0 to 11700 LPH) |
| Borewell Size | 100 mm(4 inch) |
| Insulation | F Class |
| Protection | IP 68 |
| Winding Material | Copper |
| Pump Housing | Stainless Steel |
| Pump Shaft | Stainless Steel |
| Motor Housing | Stainless Steel |
| Motor Shaft | Stainless Steel |
| Motor Bearing | Ball Bearing |
| Pump Bushes | NBR |
| Impeller | Noryl |
| Diffuser | Noryl |
| NRV | Cast Iron |
| Suction | Cast Iron |
| High Efficiency And Energy Saving Design | Higher output, lesser power consumption. |
| Wide Voltage Design | The voltage range is 150 to 240 Volts. It protects the motor from burning due to lower/higher voltage. |
| Dynamically Balanced Rotating Parts | Resulting in lesser vibrations and longer trouble-free operation. |
| Designed To Prevent Overloading | Lesser chances of motor burning as motor did not get overloaded even if the pump is operated at a head lower than recommended and saving substantial cost from maintenance and breakdown. |
| Lightweight And Compact Design | Constructed with special grade engineering materials, compact designs for ease of handling and installation. |
| Flatter Efficiency Curve | Minimal drop in efficiency during entire operating range, resulting in lower operating cost. |
| Suitable For Horizontal Applications | High capacity angular ball bearing motor construction suited to operate in the horizontal position. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Kirloskar 2 HP 8 Stage(4 Inch) 1Ph Oil Filled Submersible Pump With CP (KP4 JALRAAJ UVA 150-2008 CP)
Kirloskar 2 HP 8 Stage(4 Inch) 1Ph Oil Filled Submersible Pump With CP (KP4 JALRAAJ UVA 150-2008 CP) is listed under Submersible Pump in Water Pumps and Motors on ToolHaat, supplied by Kirloskar. Key specifications include power 2 hp, weight (approx.) 21.60 kg, flow rate 195 lpm, head 52 meter, model no KP4 JALRAAJ UVA 150-2008. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
Kirloskar 2 HP 8 Stage(4 Inch) 1Ph Oil Filled Submersible Pump With CP (KP4 JALRAAJ UVA 150-2008 CP) specifications
| Power | 2 hp |
|---|---|
| Weight (Approx.) | 21.60 kg |
| Flow Rate | 195 lpm |
| Head | 52 meter |
| Model No | KP4 JALRAAJ UVA 150-2008 |
| Product Type | Borewell Submersible Pump |
| Wattage | 1.5 kW |
| Electricity Connection | Single Phase |
| Voltage | 220 Volt, 50 Hz, AC Power Supply |
| Rated Current | 11 Amp. |
| Cooling Type | Oil Filled |
| No. Of Stage | 8 |
FAQs related to Kirloskar 2 HP 8 Stage(4 Inch) 1Ph Oil Filled Submersible Pump With CP (KP4 JALRAAJ UVA 150-2008 CP)
Does ToolHaat offer installation guidance for Kirloskar 2 HP 8 Stage(4 Inch) 1Ph Oil Filled Submersible Pump With CP (KP4 JALRAAJ UVA 150-2008 CP)?
+
Installation requirements vary by Kirloskar 2 HP 8 Stage(4 Inch) 1Ph Oil Filled Submersible Pump With CP (KP4 JALRAAJ UVA 150-2008 CP) model — check the product listing for included documentation. For larger installations, our sales team can help connect you with the vendor for on-site guidance where available.
How is Kirloskar 2 HP 8 Stage(4 Inch) 1Ph Oil Filled Submersible Pump With CP (KP4 JALRAAJ UVA 150-2008 CP) packaged and delivered to avoid transit damage?
+
Kirloskar 2 HP 8 Stage(4 Inch) 1Ph Oil Filled Submersible Pump With CP (KP4 JALRAAJ UVA 150-2008 CP) is shipped in protective packaging designed for the product’s weight and components. Delivery timelines are shown at checkout based on your location — larger installations may need coordinated delivery scheduling, which our sales team can help arrange.
Is a GST invoice provided for Kirloskar 2 HP 8 Stage(4 Inch) 1Ph Oil Filled Submersible Pump With CP (KP4 JALRAAJ UVA 150-2008 CP) purchases?
+
Yes, every Kirloskar 2 HP 8 Stage(4 Inch) 1Ph Oil Filled Submersible Pump With CP (KP4 JALRAAJ UVA 150-2008 CP) order generates a GST invoice automatically, suitable for input tax credit claims and standard business procurement records.
What if Kirloskar 2 HP 8 Stage(4 Inch) 1Ph Oil Filled Submersible Pump With CP (KP4 JALRAAJ UVA 150-2008 CP) arrives with a manufacturing defect?
+
Contact ToolHaat support with your order ID if Kirloskar 2 HP 8 Stage(4 Inch) 1Ph Oil Filled Submersible Pump With CP (KP4 JALRAAJ UVA 150-2008 CP) shows a manufacturing defect on arrival. Replacement or refund is handled per our returns policy in coordination with the listing vendor.
Can I compare multiple brands of Kirloskar 2 HP 8 Stage(4 Inch) 1Ph Oil Filled Submersible Pump With CP (KP4 JALRAAJ UVA 150-2008 CP) before purchasing?
+
Yes — ToolHaat lists Kirloskar 2 HP 8 Stage(4 Inch) 1Ph Oil Filled Submersible Pump With CP (KP4 JALRAAJ UVA 150-2008 CP) from multiple verified vendors at different price points and specifications, letting you compare motor power, material, and price before a bulk purchase decision.
