Kirloskar · SKU: thwpm1174

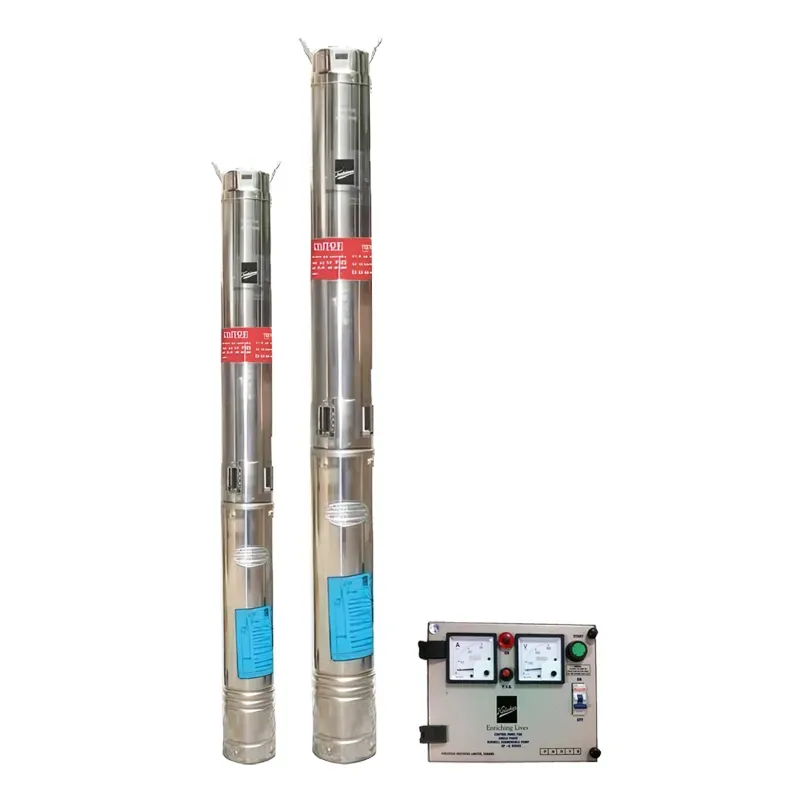

Kirloskar 2 HP 14 Stage 100 mm(4 Inch) 1 Phase Oil Filled Submersible Pump With CP, 269 ft Head (KU4-0814S)
In Stock
₹35,639₹46,309-23% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Diffuser | Noryl |
| NRV | Stainless Steel |
| Brand | Kirloskar |
| Power | 2 hp |
| Weight (Approx.) | 29.392 kg |
| Flow Rate | 140 lpm |
| Head | 82 meter |
| Model No. | KU4-0814S |
| Product Type | Borewell Submersible Pump |
| Power Source | Corded Electric |
| With Control Panel | Yes |
| Wattage | 1.5 kW |
| No. of Stages | 14 |
| Outlet Size | 32 mm |
| Power Supply | 220V, 50 Hz, AC Supply |
| Electricity Connection | Single Phase |
| Cooling Type | Oil Filled |
| Current Rating | 12.5 Amp |
| Boring Size | 4 Inch (100 mm) |
| Max. Head | 82 Meter (269 Feet) |
| Max. Discharge Rate | 140 LPM (8400 LPH) |
| Winding Material | Copper |
| Pump Housing | Stainless Steel |
| Pump Shaft | Stainless Steel |
| Motor Housing | Stainless Steel |
| Motor Shaft | Stainless Steel |
| Motor Bearing | Ball Bearing |
| Pump Brushes | NBR |
| Impeller | Noryl |
| Suction | Stainless Steel |
| High Efficiency And Energy Saving Design | Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost |
| Wide Voltage Design | The motor is designed to withstand wide voltage fluctuations from 160 to 240 volts and reduces motor burning in low voltage. |
| Dynamically Balanced Rotating Parts | Minimum vibrations protect components from damages during the operations, consistent performance as concentricity is maintained. |
| Design To Prevent Overloading | Lesser chances of motor burning as motor did not get overloaded even if the pump is operated at a head lower than recommended and saving substantial cost from maintenance and breakdown. |
| Lightweight And Compact Design | Constructed with special grade engineering materials, compact designs for ease of handling and installation. |
| Flatter Efficiency Curve | Minimum variations in efficiency during entire operating range increases the utility of pump set for variable conditions. |
| Suitable For Horizontal Applications | Motor with ball bearings are suitable for horizontal installation for water transfer at high heads in residential complex. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Kirloskar 2 HP 14 Stage 100 mm(4 Inch) 1 Phase Oil Filled Submersible Pump With CP, 269 ft Head (KU4-0814S)
Kirloskar 2 HP 14 Stage 100 mm(4 Inch) 1 Phase Oil Filled Submersible Pump With CP, 269 ft Head (KU4-0814S) is listed under Submersible Pump in Water Pumps and Motors on ToolHaat, supplied by Kirloskar. Key specifications include diffuser Noryl, nrv Stainless Steel, power 2 hp, weight (approx.) 29.392 kg, flow rate 140 lpm. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
Kirloskar 2 HP 14 Stage 100 mm(4 Inch) 1 Phase Oil Filled Submersible Pump With CP, 269 ft Head (KU4-0814S) specifications
| Diffuser | Noryl |
|---|---|
| NRV | Stainless Steel |
| Power | 2 hp |
| Weight (Approx.) | 29.392 kg |
| Flow Rate | 140 lpm |
| Head | 82 meter |
| Model No. | KU4-0814S |
| Product Type | Borewell Submersible Pump |
| Power Source | Corded Electric |
| With Control Panel | Yes |
| Wattage | 1.5 kW |
| No. of Stages | 14 |
FAQs related to Kirloskar 2 HP 14 Stage 100 mm(4 Inch) 1 Phase Oil Filled Submersible Pump With CP, 269 ft Head (KU4-0814S)
What if Kirloskar 2 HP 14 Stage 100 mm(4 Inch) 1 Phase Oil Filled Submersible Pump With CP, 269 ft Head (KU4-0814S) arrives with a manufacturing defect?
+
Contact ToolHaat support with your order ID if Kirloskar 2 HP 14 Stage 100 mm(4 Inch) 1 Phase Oil Filled Submersible Pump With CP, 269 ft Head (KU4-0814S) shows a manufacturing defect on arrival. Replacement or refund is handled per our returns policy in coordination with the listing vendor.
Is a GST invoice provided for Kirloskar 2 HP 14 Stage 100 mm(4 Inch) 1 Phase Oil Filled Submersible Pump With CP, 269 ft Head (KU4-0814S) purchases?
+
Yes, every Kirloskar 2 HP 14 Stage 100 mm(4 Inch) 1 Phase Oil Filled Submersible Pump With CP, 269 ft Head (KU4-0814S) order generates a GST invoice automatically, suitable for input tax credit claims and standard business procurement records.
Can contractors or dealers set up recurring bulk orders for Kirloskar 2 HP 14 Stage 100 mm(4 Inch) 1 Phase Oil Filled Submersible Pump With CP, 269 ft Head (KU4-0814S)?
+
Yes — contractors and dealers regularly use ToolHaat for recurring Kirloskar 2 HP 14 Stage 100 mm(4 Inch) 1 Phase Oil Filled Submersible Pump With CP, 269 ft Head (KU4-0814S) procurement. Contact our sales team to set up a standing order arrangement with consistent bulk pricing.
What capacity or specification of Kirloskar 2 HP 14 Stage 100 mm(4 Inch) 1 Phase Oil Filled Submersible Pump With CP, 269 ft Head (KU4-0814S) should I choose?
+
The right Kirloskar 2 HP 14 Stage 100 mm(4 Inch) 1 Phase Oil Filled Submersible Pump With CP, 269 ft Head (KU4-0814S) depends on your required flow rate, head (lift height), and power source — each listing specifies these details. For help matching a pump to your specific application, contact ToolHaat support or submit an RFQ with your requirements.
Can I compare multiple brands of Kirloskar 2 HP 14 Stage 100 mm(4 Inch) 1 Phase Oil Filled Submersible Pump With CP, 269 ft Head (KU4-0814S) before purchasing?
+
Yes — ToolHaat lists Kirloskar 2 HP 14 Stage 100 mm(4 Inch) 1 Phase Oil Filled Submersible Pump With CP, 269 ft Head (KU4-0814S) from multiple verified vendors at different price points and specifications, letting you compare motor power, material, and price before a bulk purchase decision.
