Kirloskar · SKU: thwpm683

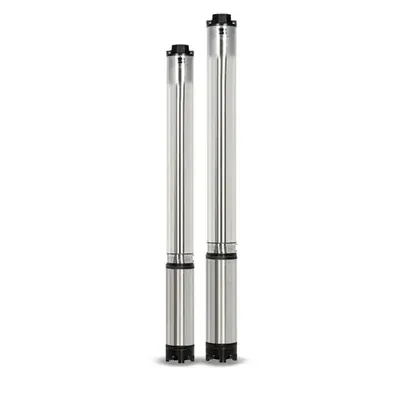

Kirloskar 2 HP 10 Stage 4 Inch 3Phase Water Filled Borewell Submersible Pump, 262 ft Head (KS4D-2010)
In Stock
₹31,531₹39,162-19% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| NRV | Cast Iron |
| Suction | Cast Iron |
| Brand | Kirloskar |
| Power | 2 hp |
| Weight (Approx.) | 33.199 kg |
| Flow Rate | 105 lpm |
| Head | 80 meter |
| Model No. | KS4D-2010 |
| Product Type | Borewell Submersible Pump |
| Power Source | Corded Electric |
| Wattage | 1.5 kW |
| Power Supply | 415V, 50 Hz, AC Power Supply |
| Electricity Connection | Three Phase |
| Motor Type | Water Filled |
| Current Rating | 4.8 Amp. |
| Boring Size | 4 Inch (100 mm) |
| Max. Head | 262 Feet (80 Meters) |
| Outlet Pipe Size | 38 mm |
| No. of Stages | 10 |
| Max Discharge Rate | 105 LPM (6300 LPH) |
| Winding Material | Copper |
| Pump Housing | Stainless Steel |
| Pump Shaft | Stainless Steel |
| Motor Housing | Stainless Steel |
| Motor Shaft | Stainless Steel |
| Thrust Bearing | Carbon + Stainless Steel |
| Motor/Pump Bushes | Gun Metal |
| Impeller | Noryl |
| Diffuser | Noryl |
| Wide Voltage Design | The motor is designed to withstand wide voltage fluctuations and reduces motor burning in low voltage. |
| High efficiency and Energy Saving Design | Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings |
| Dynamically Balanced Rotating Parts | Minimum vibrations protect components from damages during the operations, consistent performance as concentricity is maintained. |
| Longer and Trouble Free Life | High grade engineering materials like Graded Cast Iron Components, Stainless Steel Shaft, Noryl Impellers, Bronze Bushes, Heavy duty Carbon + SS Thrust Plate, 99.9% pure Copper Rotor and Winding Wires for longer and trouble free life. |
| Advanced Water Cooled Motors Designs | The motor is filled with potable water, protects from overheating and facilitates smoother and trouble free operation for the years. |
| Wide Voltage Motor Designs with 100% Copper Rotor | Motors are designed with extra overload capacities, more water spaces and engineered with 100% pure Electro Grade Copper performs well in low voltage with minimum discharge drops and suitable for wide voltage applications. |
| CED-Cathodic Electro Deposition | CED is the latest coating technology for corrosion resistance with uniform coating, provides 5 times more protection over conventional painting, resulting in longer life. All major Cl parts of Kirloskar pumps coming in contact with the water are CED coated. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Kirloskar 2 HP 10 Stage 4 Inch 3Phase Water Filled Borewell Submersible Pump, 262 ft Head (KS4D-2010)
Kirloskar 2 HP 10 Stage 4 Inch 3Phase Water Filled Borewell Submersible Pump, 262 ft Head (KS4D-2010) is listed under Submersible Pump in Water Pumps and Motors on ToolHaat, supplied by Kirloskar. Key specifications include nrv Cast Iron, suction Cast Iron, power 2 hp, weight (approx.) 33.199 kg, flow rate 105 lpm. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
Kirloskar 2 HP 10 Stage 4 Inch 3Phase Water Filled Borewell Submersible Pump, 262 ft Head (KS4D-2010) specifications
| NRV | Cast Iron |
|---|---|
| Suction | Cast Iron |
| Power | 2 hp |
| Weight (Approx.) | 33.199 kg |
| Flow Rate | 105 lpm |
| Head | 80 meter |
| Model No. | KS4D-2010 |
| Product Type | Borewell Submersible Pump |
| Power Source | Corded Electric |
| Wattage | 1.5 kW |
| Power Supply | 415V, 50 Hz, AC Power Supply |
| Electricity Connection | Three Phase |
FAQs related to Kirloskar 2 HP 10 Stage 4 Inch 3Phase Water Filled Borewell Submersible Pump, 262 ft Head (KS4D-2010)
Is a GST invoice provided for Kirloskar 2 HP 10 Stage 4 Inch 3Phase Water Filled Borewell Submersible Pump, 262 ft Head (KS4D-2010) purchases?
+
Yes, every Kirloskar 2 HP 10 Stage 4 Inch 3Phase Water Filled Borewell Submersible Pump, 262 ft Head (KS4D-2010) order generates a GST invoice automatically, suitable for input tax credit claims and standard business procurement records.
Can I get bulk pricing for Kirloskar 2 HP 10 Stage 4 Inch 3Phase Water Filled Borewell Submersible Pump, 262 ft Head (KS4D-2010) if I need multiple units?
+
Yes — Kirloskar 2 HP 10 Stage 4 Inch 3Phase Water Filled Borewell Submersible Pump, 262 ft Head (KS4D-2010) uses tiered bulk pricing on ToolHaat, with unit cost decreasing at higher order quantities. For distributor or contractor-level volumes, use the RFQ feature for a dedicated quote.
What capacity or specification of Kirloskar 2 HP 10 Stage 4 Inch 3Phase Water Filled Borewell Submersible Pump, 262 ft Head (KS4D-2010) should I choose?
+
The right Kirloskar 2 HP 10 Stage 4 Inch 3Phase Water Filled Borewell Submersible Pump, 262 ft Head (KS4D-2010) depends on your required flow rate, head (lift height), and power source — each listing specifies these details. For help matching a pump to your specific application, contact ToolHaat support or submit an RFQ with your requirements.
What if Kirloskar 2 HP 10 Stage 4 Inch 3Phase Water Filled Borewell Submersible Pump, 262 ft Head (KS4D-2010) arrives with a manufacturing defect?
+
Contact ToolHaat support with your order ID if Kirloskar 2 HP 10 Stage 4 Inch 3Phase Water Filled Borewell Submersible Pump, 262 ft Head (KS4D-2010) shows a manufacturing defect on arrival. Replacement or refund is handled per our returns policy in coordination with the listing vendor.
Can I compare multiple brands of Kirloskar 2 HP 10 Stage 4 Inch 3Phase Water Filled Borewell Submersible Pump, 262 ft Head (KS4D-2010) before purchasing?
+
Yes — ToolHaat lists Kirloskar 2 HP 10 Stage 4 Inch 3Phase Water Filled Borewell Submersible Pump, 262 ft Head (KS4D-2010) from multiple verified vendors at different price points and specifications, letting you compare motor power, material, and price before a bulk purchase decision.
