Kirloskar · SKU: thwpm686

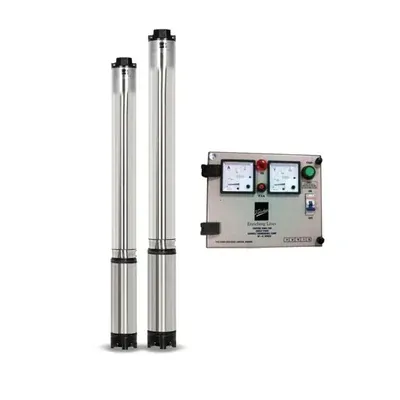

Kirloskar 1.5 HP 9 Stage 4 Inch Single Phase Water Filled Submersible Pump With CP, 236 ft Head (KS4D-1509-CP)
In Stock
₹27,818₹39,200-29% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Kirloskar |
| Power | 1.5 hp |
| Weight (Approx.) | 33 kg |
| Flow Rate | 105 lpm |
| Head | 72 meter |
| Model No | KS4D-1509-CP |
| Product Type | Borewell Submersible Pump |
| Power Source | Corded Electric |
| Wattage | 1.1 kW |
| Power Supply | 220V, 50 Hz, AC Power Supply |
| Electricity Connection | Single Phase |
| Motor Type | Water Filled |
| Current Rating | 10.5 Amp. |
| Boring Size | 4 Inch (100 mm) |
| Max. Head | 236 Feet (72 Meters) |
| Outlet Pipe (Size) | 38 mm |
| No. of Stages | 9 |
| Max. Discharge Rate | 105 LPM (6300 LPH) |
| Winding Material | Copper |
| Pump Housing | Stainless Steel |
| Pump Shaft | Stainless Steel |
| Motor Housing | Stainless Steel |
| Motor Shaft | Stainless Steel |
| Thrust Bearing | Carbon + Stainless Steel |
| Motor/Pump Bushes | Gun Metal |
| Impeller | Noryl |
| Diffuser | Noryl |
| NRV | Cast Iron |
| Suction | Cast Iron |
| Wide Voltage Design | The motor is designed to withstand wide voltage fluctuations and reduces motor burning in low voltage. |
| High efficiency and Energy Saving Design | Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings |
| Dynamically Balanced Rotating Parts | Minimum vibrations protect components from damages during the operations, consistent performance as concentricity is maintained. |
| Longer and Trouble Free Life | High grade engineering materials like Graded Cast Iron Components, Stainless Steel Shaft, Noryl Impellers, Bronze Bushes, Heavy duty Carbon + SS Thrust Plate, 99.9% pure Copper Rotor and Winding Wires for longer and trouble free life. |
| Advanced Water Cooled Motors Designs | The motor is filled with potable water, protects from overheating and facilitates smoother and trouble free operation for the years. |
| Wide Voltage Motor Designs with 100% Copper Rotor | Motors are designed with extra overload capacities, more water spaces and engineered with 100% pure Electro Grade Copper performs well in low voltage with minimum discharge drops and suitable for wide voltage applications. |
| CED-Cathodic Electro Deposition | CED is the latest coating technology for corrosion resistance with uniform coating, provides 5 times more protection over conventional painting, resulting in longer life. All major Cl parts of Kirloskar pumps coming in contact with the water are CED coated. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Kirloskar 1.5 HP 9 Stage 4 Inch Single Phase Water Filled Submersible Pump With CP, 236 ft Head (KS4D-1509-CP)
Kirloskar 1.5 HP 9 Stage 4 Inch Single Phase Water Filled Submersible Pump With CP, 236 ft Head (KS4D-1509-CP) is listed under Submersible Pump in Water Pumps and Motors on ToolHaat, supplied by Kirloskar. Key specifications include power 1.5 hp, weight (approx.) 33 kg, flow rate 105 lpm, head 72 meter, model no KS4D-1509-CP. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
Kirloskar 1.5 HP 9 Stage 4 Inch Single Phase Water Filled Submersible Pump With CP, 236 ft Head (KS4D-1509-CP) specifications
| Power | 1.5 hp |
|---|---|
| Weight (Approx.) | 33 kg |
| Flow Rate | 105 lpm |
| Head | 72 meter |
| Model No | KS4D-1509-CP |
| Product Type | Borewell Submersible Pump |
| Power Source | Corded Electric |
| Wattage | 1.1 kW |
| Power Supply | 220V, 50 Hz, AC Power Supply |
| Electricity Connection | Single Phase |
| Motor Type | Water Filled |
| Current Rating | 10.5 Amp. |
FAQs related to Kirloskar 1.5 HP 9 Stage 4 Inch Single Phase Water Filled Submersible Pump With CP, 236 ft Head (KS4D-1509-CP)
Can contractors or dealers set up recurring bulk orders for Kirloskar 1.5 HP 9 Stage 4 Inch Single Phase Water Filled Submersible Pump With CP, 236 ft Head (KS4D-1509-CP)?
+
Yes — contractors and dealers regularly use ToolHaat for recurring Kirloskar 1.5 HP 9 Stage 4 Inch Single Phase Water Filled Submersible Pump With CP, 236 ft Head (KS4D-1509-CP) procurement. Contact our sales team to set up a standing order arrangement with consistent bulk pricing.
Can I compare multiple brands of Kirloskar 1.5 HP 9 Stage 4 Inch Single Phase Water Filled Submersible Pump With CP, 236 ft Head (KS4D-1509-CP) before purchasing?
+
Yes — ToolHaat lists Kirloskar 1.5 HP 9 Stage 4 Inch Single Phase Water Filled Submersible Pump With CP, 236 ft Head (KS4D-1509-CP) from multiple verified vendors at different price points and specifications, letting you compare motor power, material, and price before a bulk purchase decision.
What capacity or specification of Kirloskar 1.5 HP 9 Stage 4 Inch Single Phase Water Filled Submersible Pump With CP, 236 ft Head (KS4D-1509-CP) should I choose?
+
The right Kirloskar 1.5 HP 9 Stage 4 Inch Single Phase Water Filled Submersible Pump With CP, 236 ft Head (KS4D-1509-CP) depends on your required flow rate, head (lift height), and power source — each listing specifies these details. For help matching a pump to your specific application, contact ToolHaat support or submit an RFQ with your requirements.
Can I get bulk pricing for Kirloskar 1.5 HP 9 Stage 4 Inch Single Phase Water Filled Submersible Pump With CP, 236 ft Head (KS4D-1509-CP) if I need multiple units?
+
Yes — Kirloskar 1.5 HP 9 Stage 4 Inch Single Phase Water Filled Submersible Pump With CP, 236 ft Head (KS4D-1509-CP) uses tiered bulk pricing on ToolHaat, with unit cost decreasing at higher order quantities. For distributor or contractor-level volumes, use the RFQ feature for a dedicated quote.
Does Kirloskar 1.5 HP 9 Stage 4 Inch Single Phase Water Filled Submersible Pump With CP, 236 ft Head (KS4D-1509-CP) come with a manufacturer warranty?
+
Warranty coverage for Kirloskar 1.5 HP 9 Stage 4 Inch Single Phase Water Filled Submersible Pump With CP, 236 ft Head (KS4D-1509-CP) varies by brand and is listed on the product page. ToolHaat support can help connect you with the vendor for warranty claims or servicing after your purchase.
