Kirloskar · SKU: thwpm975

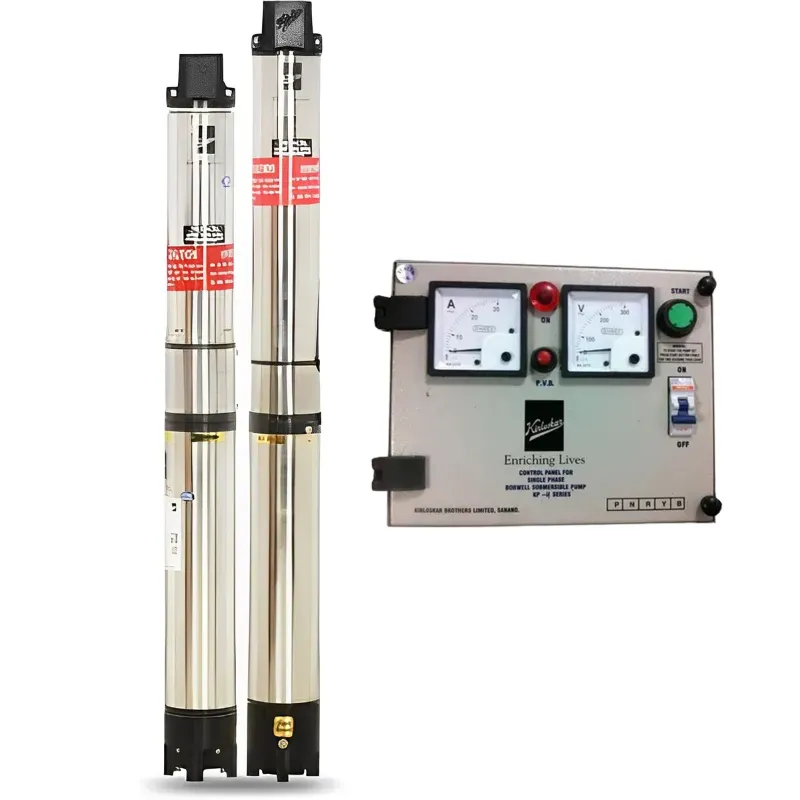

Kirloskar 1.5 HP 4 Inch 1Ph Water Filled Borewell Submersible Pump With CP, 305 ft Head, 105 LPM flow rate (NEO 60-1512-CP)
In Stock
₹27,224₹35,375-23% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Electricity Connection | Single Phase |
| Wattage | 1.1 kW |
| Brand | Kirloskar |
| Power | 1.5 hp |
| Weight (Approx.) | 26 kg |
| Flow Rate | 105 lpm |
| Head | 93 meter |
| Model No. | NEO 60-1512 |
| Product Type | Borewell Submersible Pump |
| Voltage | 180 - 240 Volts, 50 Hz, AC Power Supply |
| Rated Current | 11.5 Amp |
| Cooling Type | Water Cooled |
| Insulation | Class B |
| Protection | IP 68 |
| No. of Stages | 12 |
| Outlet Size | 32 mm |
| Borewell Size | 100 mm (4 inch) |
| Max. Head | 305 feet (93 meters) |
| Max. Discharge Rate | 105 LPM (6300 LPH) |
| Winding Material | Copper |
| Pump Housing | Stainless Steel |
| Pump Shaft | Stainless Steel |
| Motor Housing | Stainless Steel |
| Motor Shaft | Stainless Steel |
| Thrust Bearing | Carbon + Stainless Steel |
| Motor/Pump Bushes | Gun Metal |
| Impeller | Noryl |
| Diffuser | Noryl |
| NRV | Cast Iron |
| Suction | Cast Iron |
| Wide Voltage Range Operability | The voltage range is 180 - 240 Volts. Protects the motor from burning due to lower/higher voltage |
| High Efficiency and Energy-saving Design | Higher output, lesser power consumption |
| Dynamically Balanced Rotating Parts | Resulting in lesser vibrations and longer trouble-free operation |
| Longer and Trouble-Free Life | High-grade engineering materials like Graded Cast Iron Components, Stainless Steel Shaft, Noryl Impellers, Bronze Bushes, Heavy duty Carbon + SS Thrust Plate, and 99.9 % pure Copper Winding Wires for longer and trouble-free life. |
| Advanced Water Cooled Motors Designs | The motor is filled with potable water, protects from overheating, and facilitates smoother and trouble-free operation for the years. |
| Sand Fighter Designs | Innovative Sand Fighter Designs restricts the entry of sand in motors, protect the pump and motor bushes to perform well in sandy borewells, and increase the pump set life. |
| CED - Cathodic Electro Deposition Coating | Better resistance against corrosion |
| Nationwide Service Network | Easy availability of spares and prompt after-sales services through nationwide company Authorised Service Centers |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Kirloskar 1.5 HP 4 Inch 1Ph Water Filled Borewell Submersible Pump With CP, 305 ft Head, 105 LPM flow rate (NEO 60-1512-CP)
Kirloskar 1.5 HP 4 Inch 1Ph Water Filled Borewell Submersible Pump With CP, 305 ft Head, 105 LPM flow rate (NEO 60-1512-CP) is listed under Submersible Pump in Water Pumps and Motors on ToolHaat, supplied by Kirloskar. Key specifications include electricity connection Single Phase, wattage 1.1 kW, power 1.5 hp, weight (approx.) 26 kg, flow rate 105 lpm. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
Kirloskar 1.5 HP 4 Inch 1Ph Water Filled Borewell Submersible Pump With CP, 305 ft Head, 105 LPM flow rate (NEO 60-1512-CP) specifications
| Electricity Connection | Single Phase |
|---|---|
| Wattage | 1.1 kW |
| Power | 1.5 hp |
| Weight (Approx.) | 26 kg |
| Flow Rate | 105 lpm |
| Head | 93 meter |
| Model No. | NEO 60-1512 |
| Product Type | Borewell Submersible Pump |
| Voltage | 180 - 240 Volts, 50 Hz, AC Power Supply |
| Rated Current | 11.5 Amp |
| Cooling Type | Water Cooled |
| Insulation | Class B |
FAQs related to Kirloskar 1.5 HP 4 Inch 1Ph Water Filled Borewell Submersible Pump With CP, 305 ft Head, 105 LPM flow rate (NEO 60-1512-CP)
Does Kirloskar 1.5 HP 4 Inch 1Ph Water Filled Borewell Submersible Pump With CP, 305 ft Head, 105 LPM flow rate (NEO 60-1512-CP) come with a manufacturer warranty?
+
Warranty coverage for Kirloskar 1.5 HP 4 Inch 1Ph Water Filled Borewell Submersible Pump With CP, 305 ft Head, 105 LPM flow rate (NEO 60-1512-CP) varies by brand and is listed on the product page. ToolHaat support can help connect you with the vendor for warranty claims or servicing after your purchase.
Are spare parts and accessories for Kirloskar 1.5 HP 4 Inch 1Ph Water Filled Borewell Submersible Pump With CP, 305 ft Head, 105 LPM flow rate (NEO 60-1512-CP) available separately?
+
Yes — related accessory subcategories on ToolHaat list compatible spares and fittings for Kirloskar 1.5 HP 4 Inch 1Ph Water Filled Borewell Submersible Pump With CP, 305 ft Head, 105 LPM flow rate (NEO 60-1512-CP), so replacement parts can be sourced without needing to buy a full new unit.
Can I get bulk pricing for Kirloskar 1.5 HP 4 Inch 1Ph Water Filled Borewell Submersible Pump With CP, 305 ft Head, 105 LPM flow rate (NEO 60-1512-CP) if I need multiple units?
+
Yes — Kirloskar 1.5 HP 4 Inch 1Ph Water Filled Borewell Submersible Pump With CP, 305 ft Head, 105 LPM flow rate (NEO 60-1512-CP) uses tiered bulk pricing on ToolHaat, with unit cost decreasing at higher order quantities. For distributor or contractor-level volumes, use the RFQ feature for a dedicated quote.
How is Kirloskar 1.5 HP 4 Inch 1Ph Water Filled Borewell Submersible Pump With CP, 305 ft Head, 105 LPM flow rate (NEO 60-1512-CP) packaged and delivered to avoid transit damage?
+
Kirloskar 1.5 HP 4 Inch 1Ph Water Filled Borewell Submersible Pump With CP, 305 ft Head, 105 LPM flow rate (NEO 60-1512-CP) is shipped in protective packaging designed for the product’s weight and components. Delivery timelines are shown at checkout based on your location — larger installations may need coordinated delivery scheduling, which our sales team can help arrange.
What if Kirloskar 1.5 HP 4 Inch 1Ph Water Filled Borewell Submersible Pump With CP, 305 ft Head, 105 LPM flow rate (NEO 60-1512-CP) arrives with a manufacturing defect?
+
Contact ToolHaat support with your order ID if Kirloskar 1.5 HP 4 Inch 1Ph Water Filled Borewell Submersible Pump With CP, 305 ft Head, 105 LPM flow rate (NEO 60-1512-CP) shows a manufacturing defect on arrival. Replacement or refund is handled per our returns policy in coordination with the listing vendor.
