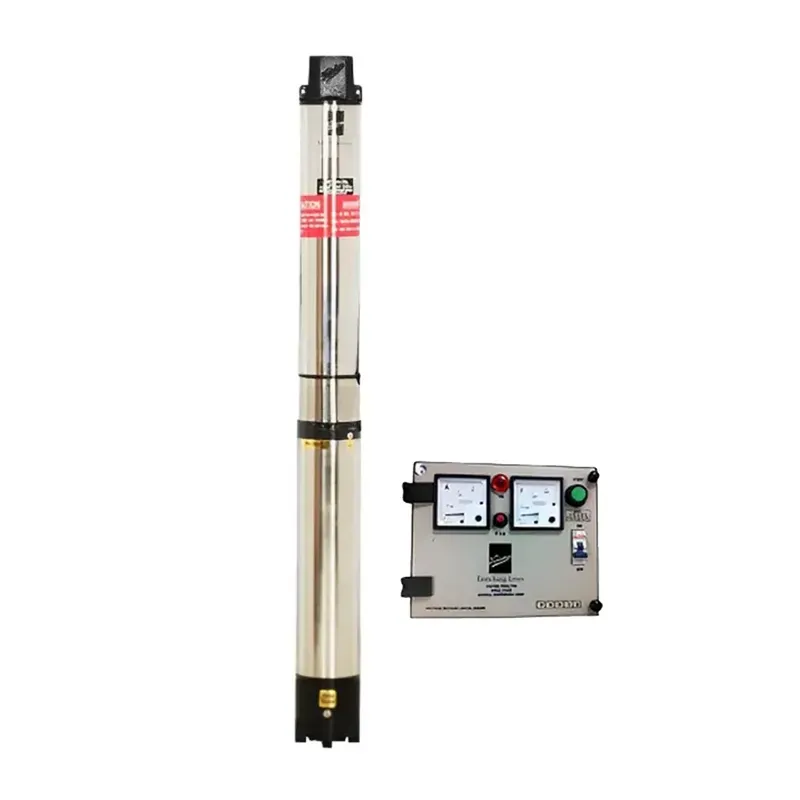

Name: Kirloskar 1.5 HP 38 Stage 3 Inch(75 mm) 1Ph Water Filled Submersible Pump With CP, 469 ft Head (KS3A-1538)
Brand: Kirloskar
SKU: thwpm1171
Availability: InStock

Question 1

Can I get bulk pricing for Kirloskar 1.5 HP 38 Stage 3 Inch(75 mm) 1Ph Water Filled Submersible Pump With CP, 469 ft Head (KS3A-1538) if I need multiple units?

Accepted Answer

Yes — Kirloskar 1.5 HP 38 Stage 3 Inch(75 mm) 1Ph Water Filled Submersible Pump With CP, 469 ft Head (KS3A-1538) uses tiered bulk pricing on ToolHaat, with unit cost decreasing at higher order quantities. For distributor or contractor-level volumes, use the RFQ feature for a dedicated quote.

Question 2

Does Kirloskar 1.5 HP 38 Stage 3 Inch(75 mm) 1Ph Water Filled Submersible Pump With CP, 469 ft Head (KS3A-1538) come with a manufacturer warranty?

Accepted Answer

Warranty coverage for Kirloskar 1.5 HP 38 Stage 3 Inch(75 mm) 1Ph Water Filled Submersible Pump With CP, 469 ft Head (KS3A-1538) varies by brand and is listed on the product page. ToolHaat support can help connect you with the vendor for warranty claims or servicing after your purchase.

Question 3

What if Kirloskar 1.5 HP 38 Stage 3 Inch(75 mm) 1Ph Water Filled Submersible Pump With CP, 469 ft Head (KS3A-1538) arrives with a manufacturing defect?

Accepted Answer

Contact ToolHaat support with your order ID if Kirloskar 1.5 HP 38 Stage 3 Inch(75 mm) 1Ph Water Filled Submersible Pump With CP, 469 ft Head (KS3A-1538) shows a manufacturing defect on arrival. Replacement or refund is handled per our returns policy in coordination with the listing vendor.

Question 4

How is Kirloskar 1.5 HP 38 Stage 3 Inch(75 mm) 1Ph Water Filled Submersible Pump With CP, 469 ft Head (KS3A-1538) packaged and delivered to avoid transit damage?

Accepted Answer

Kirloskar 1.5 HP 38 Stage 3 Inch(75 mm) 1Ph Water Filled Submersible Pump With CP, 469 ft Head (KS3A-1538) is shipped in protective packaging designed for the product’s weight and components. Delivery timelines are shown at checkout based on your location — larger installations may need coordinated delivery scheduling, which our sales team can help arrange.

Question 5

What capacity or specification of Kirloskar 1.5 HP 38 Stage 3 Inch(75 mm) 1Ph Water Filled Submersible Pump With CP, 469 ft Head (KS3A-1538) should I choose?

Accepted Answer

The right Kirloskar 1.5 HP 38 Stage 3 Inch(75 mm) 1Ph Water Filled Submersible Pump With CP, 469 ft Head (KS3A-1538) depends on your required flow rate, head (lift height), and power source — each listing specifies these details. For help matching a pump to your specific application, contact ToolHaat support or submit an RFQ with your requirements.

Brand	Kirloskar
Power	1.5 hp
Weight (Approx.)	24 kg
Flow Rate	40 lpm
Head	143 meter
Model No.	KS3A-1538
Product Type	Borewell Submersible Pump
With Control Panel	Yes
Wattage	1.1 kW
No. of Stages	38
Power Supply	220V, 50 Hz, AC Supply
Electricity Connection	Single Phase
Cooling Type	Water Filled
Outlet Size	32 mm
Current Rating	11.7 Amp
Boring Size	3 Inch (75 mm)
Max. Head	469 Feet (143 Meters)
Max. Discharge Rate	40 LPM (2400 LPH)
Insulation	B Class
Protection	IP 68
Winding Material	Copper
Pump Housing	Stainless Steel
Pump Shaft	Stainless Steel
Motor Housing	Stainless Steel
Motor Shaft	Stainless Steel
Thrust Bearing	Carbon + Stainless Steel
Motor/Pump Bushes	Gun Metal
Impeller	Noryl
Diffuser	Noryl
NRV	Cast Iron
Suction	Cast Iron
High Efficiency And Energy Saving Design	Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings.
Wide Voltage Design	The voltage range is 160 to 240 Volts. It protects the motor from burning due to lower/higher voltage.
Dynamically Balanced Rotating Parts	Minimum vibrations protect components from damages during the operations, consistent performance as concentricity is maintained.
Designed To Prevent Overloading	Lesser chances of motor burning as motor did not get overloaded even if the pump is operated at a head lower than recommended and saving substantial cost from maintenance and breakdown.
Longer And Trouble Free Life	High grade engineering materials like Graded Cast Iron Components, Stainless Steel Shaft, Noryl Impellers, Bronze Bushes, Heavy duty Carbon + SS Thrust Plate, 99.9 % pure Copper Rotor and Winding Wires for longer and trouble free life
Advanced Water Cooled Motors Designs	The motor is filled with potable water, protects from overheating and facilitates smoother and trouble free operation for the years
Wide Voltage Motor Designs With 100% Copper Rotor	Motors are designed with extra overload capacities, more water spaces and engineered with 100% pure Electro Grade Copper performs well in low voltage with minimum discharge drops and suitable for wide voltage applications.
Easy Maintainable Designs	Easy maintainable design and better interchangeability of components so that pump can be serviced even at remote locations by semi-skilled technicians

Power	1.5 hp
Weight (Approx.)	24 kg
Flow Rate	40 lpm
Head	143 meter
Model No.	KS3A-1538
Product Type	Borewell Submersible Pump
With Control Panel	Yes
Wattage	1.1 kW
No. of Stages	38
Power Supply	220V, 50 Hz, AC Supply
Electricity Connection	Single Phase
Cooling Type	Water Filled

Kirloskar 1.5 HP 38 Stage 3 Inch(75 mm) 1Ph Water Filled Submersible Pump With CP, 469 ft Head (KS3A-1538)

About Kirloskar 1.5 HP 38 Stage 3 Inch(75 mm) 1Ph Water Filled Submersible Pump With CP, 469 ft Head (KS3A-1538)
