Kirloskar · SKU: thwpm1035

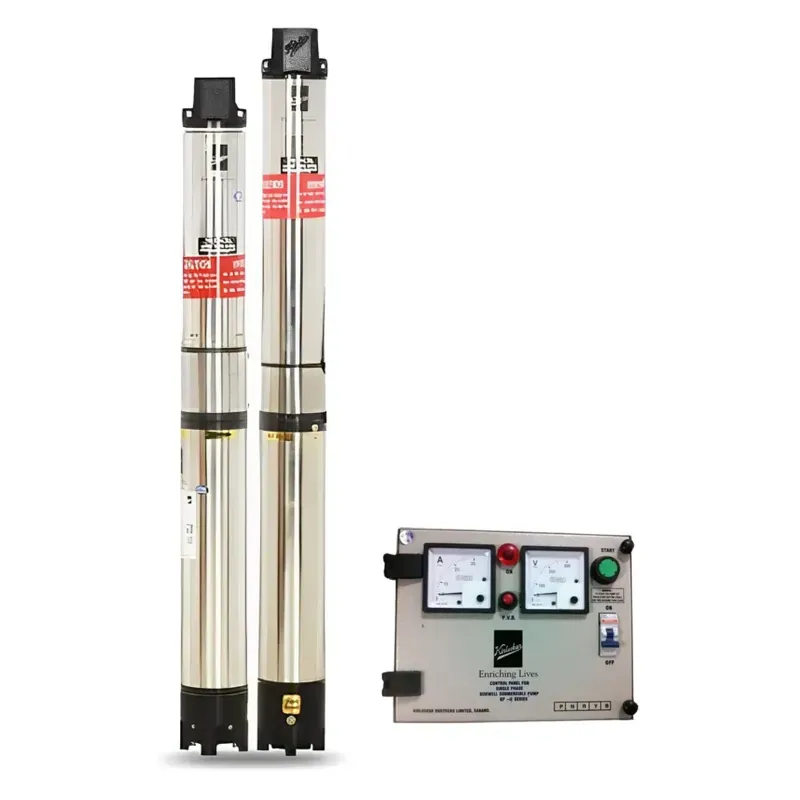

Kirloskar 1.5 HP 14 Stage(4 Inch) 1Ph Water Cooled Submersible Pump With CP, 358 ft Head (NEO 60-1514 CP)
In Stock
₹25,046₹31,108-19% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Kirloskar |
| Power | 1.5 hp |
| Weight (Approx.) | 28.8 kg |
| Flow Rate | 105 lpm |
| Head | 109 meter |
| Model No. | NEO 60-1514 CP |
| Product Type | Borewell Submersible Pump |
| Wattage | 1.10 kW |
| No Of Stages | 14 |
| Outlet Size | 32 mm |
| Rated Voltage | 220 Volt, 50 Hz, AC Power Supply |
| Electricity Connection | Single Phase |
| Rated Current | 11.5 Amp. |
| Max. Head | 109 Meter (358 Feet) |
| Max. Discharge Rate | 105 LPM (6300 LPH) |
| Borewell Size | 100 mm (4 inch) |
| Cooling Type | Water Cooled |
| Insulation | B Class |
| Protection | IP 68 |
| Winding Material | Copper |
| Pump Housing | Stainless Steel |
| Pump Shaft | Stainless Steel |
| Motor Housing | Stainless Steel |
| Motor Shaft | Stainless Steel |
| Thrust Bearing | Carbon + Stainless Steel |
| Motor/Pump Bushes | Gun Metal |
| Impeller | Noryl |
| Diffuser | Noryl |
| NRV | Cast Iron |
| Suction | Cast Iron |
| Wide Voltage Range Operability | Voltage range is 180 - 240 Volts. Protects motor from burning due to lower/higher voltage |
| High Efficiency and Energy-saving Design | Higher output, lesser power consumption |
| Dynamically Balanced Rotating Parts | Resulting in lesser vibrations and longer trouble-free operation |
| Longer and Trouble Free Life | High grade engineering materials like Graded Cast Iron Components, Stainless Steel Shaft, Noryl Impellers, Bronze Bushes, Heavy duty Carbon + SS Thrust Plate, 99.9 % pure Copper Winding Wires for longer and trouble free life. |
| Advanced Water Cooled Motors Designs | The motor is filled with potable water, protects from overheating and facilitates smoother and trouble free operation for the years. |
| Sand Fighter Designs | Innovative Sand Fighter Designs restricts the entry of sand in motors, protects the pump and motor bushes to perform well in sandy borewells and increase the pump set life. |
| CED - Cathodic Electro Deposition Coating | Better resistance against corrosion. |
| Nationwide Service Network | Easy availability of spares and prompt after sales services through nationwide company authorised service centers. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Kirloskar 1.5 HP 14 Stage(4 Inch) 1Ph Water Cooled Submersible Pump With CP, 358 ft Head (NEO 60-1514 CP)
Kirloskar 1.5 HP 14 Stage(4 Inch) 1Ph Water Cooled Submersible Pump With CP, 358 ft Head (NEO 60-1514 CP) is listed under Submersible Pump in Water Pumps and Motors on ToolHaat, supplied by Kirloskar. Key specifications include power 1.5 hp, weight (approx.) 28.8 kg, flow rate 105 lpm, head 109 meter, model no. NEO 60-1514 CP. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
Kirloskar 1.5 HP 14 Stage(4 Inch) 1Ph Water Cooled Submersible Pump With CP, 358 ft Head (NEO 60-1514 CP) specifications
| Power | 1.5 hp |
|---|---|
| Weight (Approx.) | 28.8 kg |
| Flow Rate | 105 lpm |
| Head | 109 meter |
| Model No. | NEO 60-1514 CP |
| Product Type | Borewell Submersible Pump |
| Wattage | 1.10 kW |
| No Of Stages | 14 |
| Outlet Size | 32 mm |
| Rated Voltage | 220 Volt, 50 Hz, AC Power Supply |
| Electricity Connection | Single Phase |
| Rated Current | 11.5 Amp. |
FAQs related to Kirloskar 1.5 HP 14 Stage(4 Inch) 1Ph Water Cooled Submersible Pump With CP, 358 ft Head (NEO 60-1514 CP)
How is Kirloskar 1.5 HP 14 Stage(4 Inch) 1Ph Water Cooled Submersible Pump With CP, 358 ft Head (NEO 60-1514 CP) packaged and delivered to avoid transit damage?
+
Kirloskar 1.5 HP 14 Stage(4 Inch) 1Ph Water Cooled Submersible Pump With CP, 358 ft Head (NEO 60-1514 CP) is shipped in protective packaging designed for the product’s weight and components. Delivery timelines are shown at checkout based on your location — larger installations may need coordinated delivery scheduling, which our sales team can help arrange.
What capacity or specification of Kirloskar 1.5 HP 14 Stage(4 Inch) 1Ph Water Cooled Submersible Pump With CP, 358 ft Head (NEO 60-1514 CP) should I choose?
+
The right Kirloskar 1.5 HP 14 Stage(4 Inch) 1Ph Water Cooled Submersible Pump With CP, 358 ft Head (NEO 60-1514 CP) depends on your required flow rate, head (lift height), and power source — each listing specifies these details. For help matching a pump to your specific application, contact ToolHaat support or submit an RFQ with your requirements.
Can I get bulk pricing for Kirloskar 1.5 HP 14 Stage(4 Inch) 1Ph Water Cooled Submersible Pump With CP, 358 ft Head (NEO 60-1514 CP) if I need multiple units?
+
Yes — Kirloskar 1.5 HP 14 Stage(4 Inch) 1Ph Water Cooled Submersible Pump With CP, 358 ft Head (NEO 60-1514 CP) uses tiered bulk pricing on ToolHaat, with unit cost decreasing at higher order quantities. For distributor or contractor-level volumes, use the RFQ feature for a dedicated quote.
Can I compare multiple brands of Kirloskar 1.5 HP 14 Stage(4 Inch) 1Ph Water Cooled Submersible Pump With CP, 358 ft Head (NEO 60-1514 CP) before purchasing?
+
Yes — ToolHaat lists Kirloskar 1.5 HP 14 Stage(4 Inch) 1Ph Water Cooled Submersible Pump With CP, 358 ft Head (NEO 60-1514 CP) from multiple verified vendors at different price points and specifications, letting you compare motor power, material, and price before a bulk purchase decision.
Does Kirloskar 1.5 HP 14 Stage(4 Inch) 1Ph Water Cooled Submersible Pump With CP, 358 ft Head (NEO 60-1514 CP) come with a manufacturer warranty?
+
Warranty coverage for Kirloskar 1.5 HP 14 Stage(4 Inch) 1Ph Water Cooled Submersible Pump With CP, 358 ft Head (NEO 60-1514 CP) varies by brand and is listed on the product page. ToolHaat support can help connect you with the vendor for warranty claims or servicing after your purchase.
