Kirloskar · SKU: thwpm682

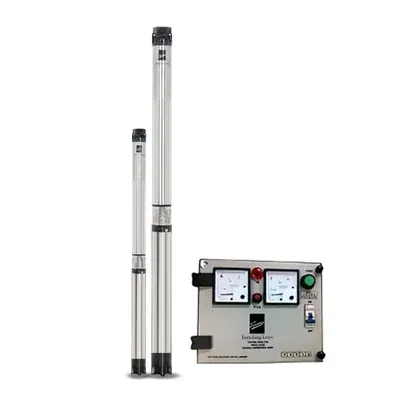

Kirloskar 1.25 HP 18 Stage 3 Inch Water Filled 1Phase Submersible Pump with CP, 243 ft Head (KS3D-1318-CP)
In Stock
₹19,304₹29,400-34% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Kirloskar |
| Power | 1.25 hp |
| Weight (Approx.) | 20.50 kg |
| Flow Rate | 72 lpm |
| Head | 74 meter |
| Model No. | KS3D-1318-CP |
| Product Type | Borewell Submersible Pump |
| Power Source | Corded Electric |
| Wattage | 0.93 kW |
| Electricity Connection | Single Phase |
| Type Of Cooling | Water Filled |
| Rated Current | 9.7 Amp |
| Boring Size | 3 Inch (75 mm) |
| Max. Head Range | 243 Feet (74 Meter) |
| Outlet Pipe (Size) | 32 mm |
| No. of Stages | 18 |
| Max. Discharge Rate | 72 LPM (4320 LPH) |
| Protection | IP 68 |
| Insulation | B Class |
| Winding Material | Copper |
| Thrust Bearing | Carbon + Stainless Steel |
| Pump Housing | Stainless Steel |
| Pump Shaft | Stainless Steel |
| Motor Housing | Stainless Steel |
| Motor Shaft | Stainless Steel |
| Motor/Pump Bushes | Gun Metal |
| Impeller | Noryl |
| Diffuser | Noryl |
| Non Return Valve (NRV) | Cast Iron |
| Suction | Cast Iron |
| Wide Voltage Design | The motor is designed to withstand wide voltage fluctuations from 160 to 240 volts and reduces motor burning in low voltage. |
| Design To Prevent Overloading | Lesser chances of motor burning as motor did not get overloaded even if the pump is operated at a head lower than recommended and saving substantial cost from maintenance and breakdown. |
| High Efficiency And Energy Saving Design | Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings. |
| Dynamically Balanced Rotating Parts | Minimum vibrations protect components from damages during the operations, consistent performance as concentricity is maintained. |
| Longer And Trouble Free Life | High grade engineering materials like Graded Cast Iron Components, Stainless Steel Shaft, Noryl Impellers, Bronze Bushes, Heavy duty Carbon + SS Thrust Plate, 99.9% pure Copper Rotor and Winding Wires for longer and trouble free life. |
| Advanced Water Cooled Motors Designs | The motor is filled with potable water, protects from overheating and facilitates smoother and trouble free operation for the years. |
| Wide Voltage Motor Designs With 100% Copper Rotor | Motors are designed with extra overload capacities, more water spaces and engineered with 100% pure Electro Grade Copper performs well in low voltage with minimum discharge drops and suitable for wide voltage applications. |
| Easy Maintainable Designs | Easy maintainable design and better interchangeability of components so that pump can be serviced even at remote locations by semi-skilled technicians. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Kirloskar 1.25 HP 18 Stage 3 Inch Water Filled 1Phase Submersible Pump with CP, 243 ft Head (KS3D-1318-CP)
Kirloskar 1.25 HP 18 Stage 3 Inch Water Filled 1Phase Submersible Pump with CP, 243 ft Head (KS3D-1318-CP) is listed under Submersible Pump in Water Pumps and Motors on ToolHaat, supplied by Kirloskar. Key specifications include power 1.25 hp, weight (approx.) 20.50 kg, flow rate 72 lpm, head 74 meter, model no. KS3D-1318-CP. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
Kirloskar 1.25 HP 18 Stage 3 Inch Water Filled 1Phase Submersible Pump with CP, 243 ft Head (KS3D-1318-CP) specifications
| Power | 1.25 hp |
|---|---|
| Weight (Approx.) | 20.50 kg |
| Flow Rate | 72 lpm |
| Head | 74 meter |
| Model No. | KS3D-1318-CP |
| Product Type | Borewell Submersible Pump |
| Power Source | Corded Electric |
| Wattage | 0.93 kW |
| Electricity Connection | Single Phase |
| Type Of Cooling | Water Filled |
| Rated Current | 9.7 Amp |
| Boring Size | 3 Inch (75 mm) |
FAQs related to Kirloskar 1.25 HP 18 Stage 3 Inch Water Filled 1Phase Submersible Pump with CP, 243 ft Head (KS3D-1318-CP)
Is a GST invoice provided for Kirloskar 1.25 HP 18 Stage 3 Inch Water Filled 1Phase Submersible Pump with CP, 243 ft Head (KS3D-1318-CP) purchases?
+
Yes, every Kirloskar 1.25 HP 18 Stage 3 Inch Water Filled 1Phase Submersible Pump with CP, 243 ft Head (KS3D-1318-CP) order generates a GST invoice automatically, suitable for input tax credit claims and standard business procurement records.
What capacity or specification of Kirloskar 1.25 HP 18 Stage 3 Inch Water Filled 1Phase Submersible Pump with CP, 243 ft Head (KS3D-1318-CP) should I choose?
+
The right Kirloskar 1.25 HP 18 Stage 3 Inch Water Filled 1Phase Submersible Pump with CP, 243 ft Head (KS3D-1318-CP) depends on your required flow rate, head (lift height), and power source — each listing specifies these details. For help matching a pump to your specific application, contact ToolHaat support or submit an RFQ with your requirements.
Are spare parts and accessories for Kirloskar 1.25 HP 18 Stage 3 Inch Water Filled 1Phase Submersible Pump with CP, 243 ft Head (KS3D-1318-CP) available separately?
+
Yes — related accessory subcategories on ToolHaat list compatible spares and fittings for Kirloskar 1.25 HP 18 Stage 3 Inch Water Filled 1Phase Submersible Pump with CP, 243 ft Head (KS3D-1318-CP), so replacement parts can be sourced without needing to buy a full new unit.
Can I get bulk pricing for Kirloskar 1.25 HP 18 Stage 3 Inch Water Filled 1Phase Submersible Pump with CP, 243 ft Head (KS3D-1318-CP) if I need multiple units?
+
Yes — Kirloskar 1.25 HP 18 Stage 3 Inch Water Filled 1Phase Submersible Pump with CP, 243 ft Head (KS3D-1318-CP) uses tiered bulk pricing on ToolHaat, with unit cost decreasing at higher order quantities. For distributor or contractor-level volumes, use the RFQ feature for a dedicated quote.
How is Kirloskar 1.25 HP 18 Stage 3 Inch Water Filled 1Phase Submersible Pump with CP, 243 ft Head (KS3D-1318-CP) packaged and delivered to avoid transit damage?
+
Kirloskar 1.25 HP 18 Stage 3 Inch Water Filled 1Phase Submersible Pump with CP, 243 ft Head (KS3D-1318-CP) is shipped in protective packaging designed for the product’s weight and components. Delivery timelines are shown at checkout based on your location — larger installations may need coordinated delivery scheduling, which our sales team can help arrange.
