Kirloskar · SKU: thwpm1023

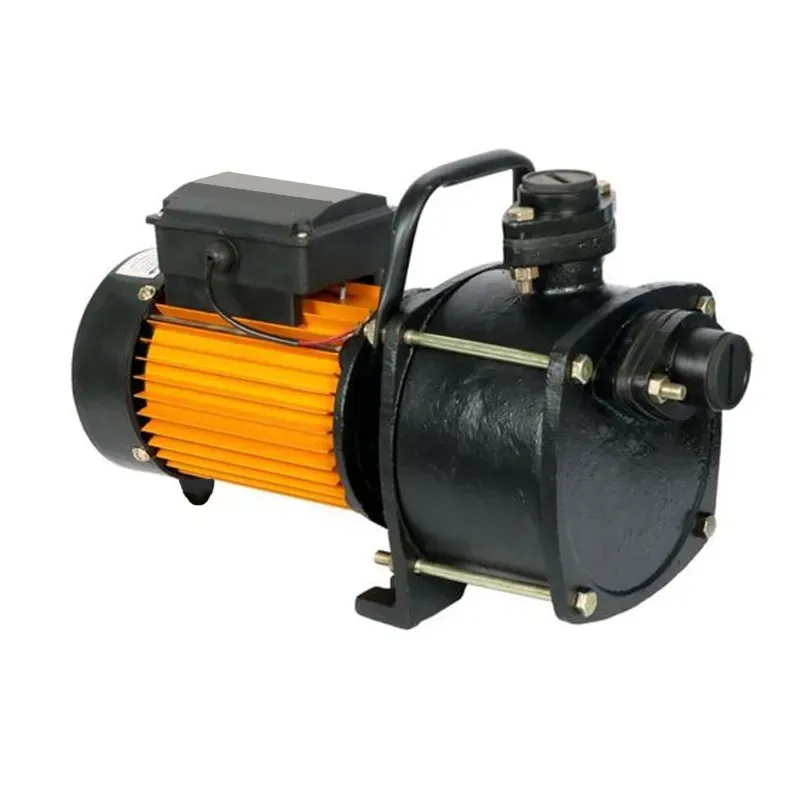

Kirloskar 1 HP Single Phase Shallow Well Water Pump, 40 m Max. Head, 25 x 25 mm (KSW-10)
In Stock
₹11,443₹16,786-32% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Kirloskar |
| Power | 1 hp |
| Weight (Approx.) | 17 kg |
| Flow Rate | 60 lpm |
| Head | 40 meter |
| Model No. | KSW-10 |
| Product Type | Shallow Well Pump |
| Motor Power | 0.75 kW |
| Full Load Current | 5.5 Amps |
| Electricity Connection | Single Phase |
| Head Range | 15-40 Meter (49 to 131 Feet) |
| Pipe Size (Suction x Delivery) | 25 x 25 mm |
| Discharge Rate | 3600-300 LPH (60-6 LPM) |
| No Of Pole | 2 |
| High Head Applications | The pump has been designed to deliver large volumes of water for high head applications, helping customers to achieve high turnaround time and productivity. |
| High Quality Aluminum Motor Body | Special grade aluminum motor body provides high resistance to corrosion, better heat dissipation and lowers its overall weight for great portability. |
| High Suction Lift | The pump has high suction lift capacity with high head, allowing pumping water at high volumes for a variety of applications. |
| Wide Voltage Design | The motor is designed to withstand wide voltage fluctuations from 182 to 240 volts and reduces motor burning in low voltage. |
| TOP - Thermal Overload Protector | The pump set features a Thermal Overload protector that protects the motor from overloading, shielding the motor and associated circuit from the effects of fault current. |
| Handle to Enhance Grip and Portability | A handle attached to the pump allows user to carry the pump anywhere, adding to its portability and convenience of use. |
| Easy Maintainable Designs | Easy maintainable design and better interchangeability of components so that pump can be serviced even at remote locations by semi-skilled technicians. |
| Shielded Ball Bearing | The pumps are fitted with shielded ball bearing so no external lubrication required through life cycle and low noise level. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Kirloskar 1 HP Single Phase Shallow Well Water Pump, 40 m Max. Head, 25 x 25 mm (KSW-10)
Kirloskar 1 HP Single Phase Shallow Well Water Pump, 40 m Max. Head, 25 x 25 mm (KSW-10) is listed under Monoblock Pump in Water Pumps and Motors on ToolHaat, supplied by Kirloskar. Key specifications include power 1 hp, weight (approx.) 17 kg, flow rate 60 lpm, head 40 meter, model no. KSW-10. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
Kirloskar 1 HP Single Phase Shallow Well Water Pump, 40 m Max. Head, 25 x 25 mm (KSW-10) specifications
| Power | 1 hp |
|---|---|
| Weight (Approx.) | 17 kg |
| Flow Rate | 60 lpm |
| Head | 40 meter |
| Model No. | KSW-10 |
| Product Type | Shallow Well Pump |
| Motor Power | 0.75 kW |
| Full Load Current | 5.5 Amps |
| Electricity Connection | Single Phase |
| Head Range | 15-40 Meter (49 to 131 Feet) |
| Pipe Size (Suction x Delivery) | 25 x 25 mm |
| Discharge Rate | 3600-300 LPH (60-6 LPM) |
FAQs related to Kirloskar 1 HP Single Phase Shallow Well Water Pump, 40 m Max. Head, 25 x 25 mm (KSW-10)
Can I get bulk pricing for Kirloskar 1 HP Single Phase Shallow Well Water Pump, 40 m Max. Head, 25 x 25 mm (KSW-10) if I need multiple units?
+
Yes — Kirloskar 1 HP Single Phase Shallow Well Water Pump, 40 m Max. Head, 25 x 25 mm (KSW-10) uses tiered bulk pricing on ToolHaat, with unit cost decreasing at higher order quantities. For distributor or contractor-level volumes, use the RFQ feature for a dedicated quote.
Are spare parts and accessories for Kirloskar 1 HP Single Phase Shallow Well Water Pump, 40 m Max. Head, 25 x 25 mm (KSW-10) available separately?
+
Yes — related accessory subcategories on ToolHaat list compatible spares and fittings for Kirloskar 1 HP Single Phase Shallow Well Water Pump, 40 m Max. Head, 25 x 25 mm (KSW-10), so replacement parts can be sourced without needing to buy a full new unit.
Can I compare multiple brands of Kirloskar 1 HP Single Phase Shallow Well Water Pump, 40 m Max. Head, 25 x 25 mm (KSW-10) before purchasing?
+
Yes — ToolHaat lists Kirloskar 1 HP Single Phase Shallow Well Water Pump, 40 m Max. Head, 25 x 25 mm (KSW-10) from multiple verified vendors at different price points and specifications, letting you compare motor power, material, and price before a bulk purchase decision.
Does Kirloskar 1 HP Single Phase Shallow Well Water Pump, 40 m Max. Head, 25 x 25 mm (KSW-10) come with a manufacturer warranty?
+
Warranty coverage for Kirloskar 1 HP Single Phase Shallow Well Water Pump, 40 m Max. Head, 25 x 25 mm (KSW-10) varies by brand and is listed on the product page. ToolHaat support can help connect you with the vendor for warranty claims or servicing after your purchase.
Does ToolHaat offer installation guidance for Kirloskar 1 HP Single Phase Shallow Well Water Pump, 40 m Max. Head, 25 x 25 mm (KSW-10)?
+
Installation requirements vary by Kirloskar 1 HP Single Phase Shallow Well Water Pump, 40 m Max. Head, 25 x 25 mm (KSW-10) model — check the product listing for included documentation. For larger installations, our sales team can help connect you with the vendor for on-site guidance where available.
