Kirloskar · SKU: thwpm960

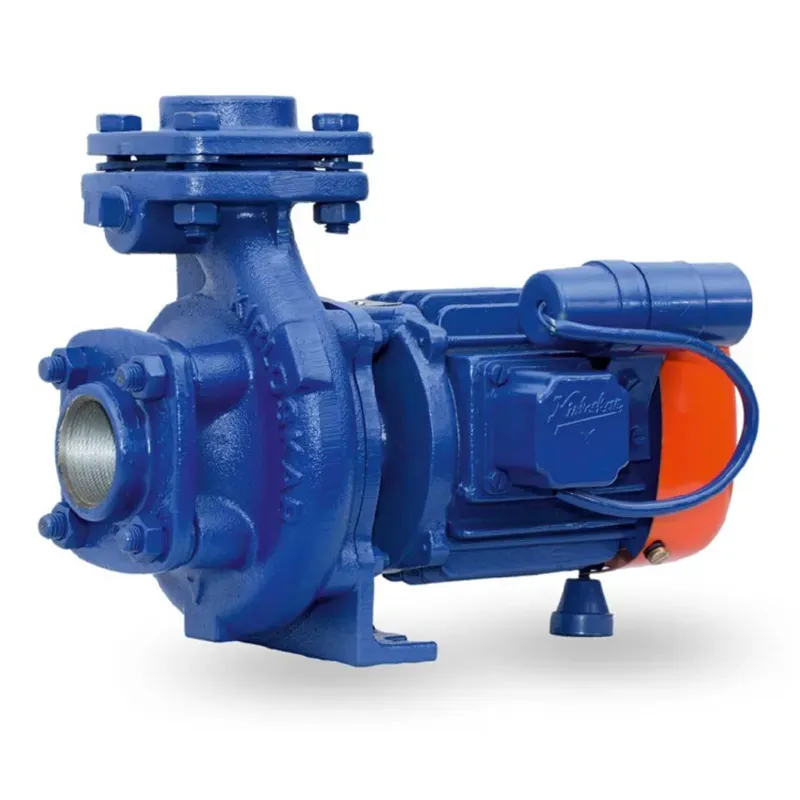

Kirloskar 1 HP Single Phase Centrifugal Monoblock Pump, 12.4 m Max. Head, 23400 LPH, 50 x 50 mm (KDS-112)
In Stock
₹13,760₹19,459-29% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Kirloskar |
| Power | 1 hp |
| Weight (Approx.) | 27 kg |
| Flow Rate | 390 lpm |
| Head | 12.4 meter |
| Model No. | KDS-112 |
| Product Type | Monoblock Pump |
| Motor Power | 0.75 kW |
| Power Supply | 210 V, 50 Hz, AC Power Supply |
| Electricity Connection | Single Phase |
| Head Range | 6 - 12.4 Meter |
| Pipe Size (Suction X Delivery) | 50 x 50 mm |
| Discharge Rate | 84 - 390 LPM (5040 - 23400 LPH) |
| Wide Voltage Design | The motor is designed to withstand wide voltage fluctuations from 350 to 440 volts and reduces motor burning in case of low voltage. |
| Replaceable Wearing Parts | All wearing parts within the pumps are easily accessible and replaceable which facilitates ease of maintenance thereby extending the life of the pump. |
| TOP - Thermal Overload Protector | The pump set features a Thermal Overload protector that protects the motor from overloading, shielding the motor and associated circuit from the effects of fault current. |
| CED – Cathodic Electro Deposition | CED is the latest coating technology for corrosion resistance with uniform coating. It provides 5 times more protection over conventional painting, resulting in longer life. All major CI parts of Kirloskar pumps coming in contact with the water are CED coated. |
| Automatic Air Release | Automatically releases air when the pump starts which ensures swifter and smoother operations, thus eliminates the necessity of operating air release cock and ensures swifter and smoother operations. |
| High Efficiency And Energy Saving Design | Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings. |
| Dynamically Balanced Rotating Parts | Minimum vibrations protect components from damages during the operations, thus ensuring consistent performance as concentricity is maintained. |
| Designed to Prevent Overloading | Lesser chances of motor burning as the motor does not get overloaded even if the pump is operated at a head lower than recommended, thus ensuring substantial cost savings due to low maintenance and breakdown. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Kirloskar 1 HP Single Phase Centrifugal Monoblock Pump, 12.4 m Max. Head, 23400 LPH, 50 x 50 mm (KDS-112)
Kirloskar 1 HP Single Phase Centrifugal Monoblock Pump, 12.4 m Max. Head, 23400 LPH, 50 x 50 mm (KDS-112) is listed under Monoblock Pump in Water Pumps and Motors on ToolHaat, supplied by Kirloskar. Key specifications include power 1 hp, weight (approx.) 27 kg, flow rate 390 lpm, head 12.4 meter, model no. KDS-112. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
Kirloskar 1 HP Single Phase Centrifugal Monoblock Pump, 12.4 m Max. Head, 23400 LPH, 50 x 50 mm (KDS-112) specifications
| Power | 1 hp |
|---|---|
| Weight (Approx.) | 27 kg |
| Flow Rate | 390 lpm |
| Head | 12.4 meter |
| Model No. | KDS-112 |
| Product Type | Monoblock Pump |
| Motor Power | 0.75 kW |
| Power Supply | 210 V, 50 Hz, AC Power Supply |
| Electricity Connection | Single Phase |
| Head Range | 6 - 12.4 Meter |
| Pipe Size (Suction X Delivery) | 50 x 50 mm |
| Discharge Rate | 84 - 390 LPM (5040 - 23400 LPH) |
FAQs related to Kirloskar 1 HP Single Phase Centrifugal Monoblock Pump, 12.4 m Max. Head, 23400 LPH, 50 x 50 mm (KDS-112)
What if Kirloskar 1 HP Single Phase Centrifugal Monoblock Pump, 12.4 m Max. Head, 23400 LPH, 50 x 50 mm (KDS-112) arrives with a manufacturing defect?
+
Contact ToolHaat support with your order ID if Kirloskar 1 HP Single Phase Centrifugal Monoblock Pump, 12.4 m Max. Head, 23400 LPH, 50 x 50 mm (KDS-112) shows a manufacturing defect on arrival. Replacement or refund is handled per our returns policy in coordination with the listing vendor.
Does ToolHaat offer installation guidance for Kirloskar 1 HP Single Phase Centrifugal Monoblock Pump, 12.4 m Max. Head, 23400 LPH, 50 x 50 mm (KDS-112)?
+
Installation requirements vary by Kirloskar 1 HP Single Phase Centrifugal Monoblock Pump, 12.4 m Max. Head, 23400 LPH, 50 x 50 mm (KDS-112) model — check the product listing for included documentation. For larger installations, our sales team can help connect you with the vendor for on-site guidance where available.
Can I compare multiple brands of Kirloskar 1 HP Single Phase Centrifugal Monoblock Pump, 12.4 m Max. Head, 23400 LPH, 50 x 50 mm (KDS-112) before purchasing?
+
Yes — ToolHaat lists Kirloskar 1 HP Single Phase Centrifugal Monoblock Pump, 12.4 m Max. Head, 23400 LPH, 50 x 50 mm (KDS-112) from multiple verified vendors at different price points and specifications, letting you compare motor power, material, and price before a bulk purchase decision.
Can contractors or dealers set up recurring bulk orders for Kirloskar 1 HP Single Phase Centrifugal Monoblock Pump, 12.4 m Max. Head, 23400 LPH, 50 x 50 mm (KDS-112)?
+
Yes — contractors and dealers regularly use ToolHaat for recurring Kirloskar 1 HP Single Phase Centrifugal Monoblock Pump, 12.4 m Max. Head, 23400 LPH, 50 x 50 mm (KDS-112) procurement. Contact our sales team to set up a standing order arrangement with consistent bulk pricing.
Is a GST invoice provided for Kirloskar 1 HP Single Phase Centrifugal Monoblock Pump, 12.4 m Max. Head, 23400 LPH, 50 x 50 mm (KDS-112) purchases?
+
Yes, every Kirloskar 1 HP Single Phase Centrifugal Monoblock Pump, 12.4 m Max. Head, 23400 LPH, 50 x 50 mm (KDS-112) order generates a GST invoice automatically, suitable for input tax credit claims and standard business procurement records.
