Kirloskar · SKU: thwpm972

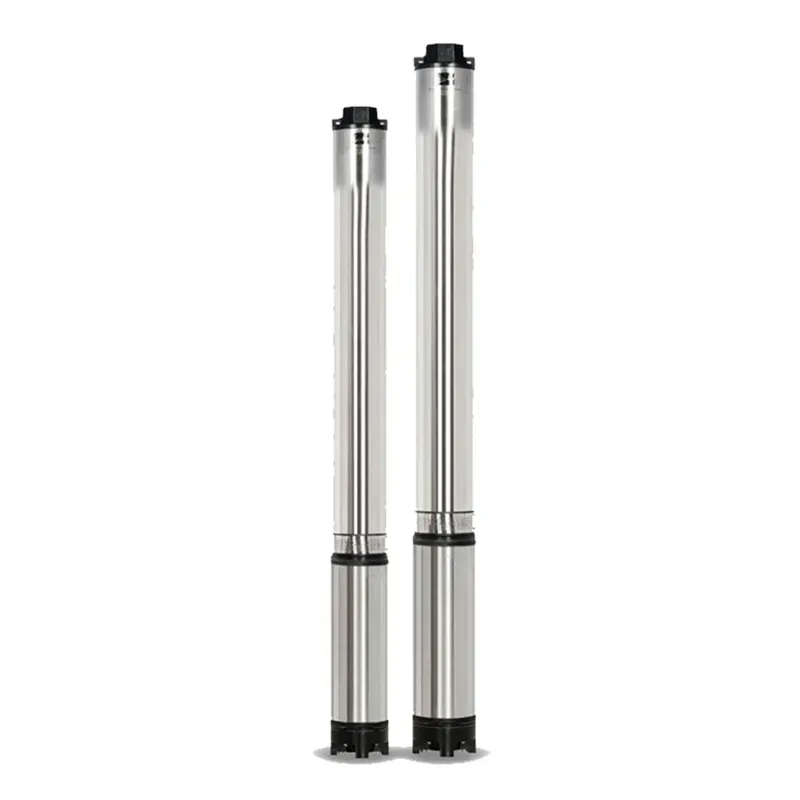

Kirloskar 1 HP 8 Stages 4 Inch 1Phase Water Filled Borewell Submersible Pump, 210 ft Head (BIGFLOW-1008)
In Stock
₹16,334₹23,940-32% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Kirloskar |
| Power | 1 hp |
| Weight (Approx.) | 23 kg |
| Flow Rate | 105 lpm |
| Head | 64 meter |
| Model No. | BIGFLOW-1008 |
| Product Type | Borewell Submersible Pump |
| Power Source | Corded Electric |
| Wattage | 0.75 kW |
| Power Supply | 220 V, 50 Hz, AC Supply |
| Electricity Connection | Single Phase |
| Boring Size | 4 Inch (100 mm) |
| Cooling Type | Water Filled |
| Rated Current | 8 Amps |
| Max. Head Range | 210 Feet (64 Meters) |
| Delivery Pipe Size | 38 mm |
| No. of Stages | 8 |
| Max. Discharge Rate | 105 LPM |
| Winding Material | Copper |
| Pump Housing | Stainless Steel |
| Pump Shaft | Stainless Steel |
| Motor Housing | Stainless Steel |
| Motor Shaft | Stainless Steel |
| Thrust Bearing | Carbon + Stainless Steel |
| Motor/Pump Bushes | Gun Metal |
| Impeller | Noryl |
| Diffuser | Noryl |
| NRV | Cast Iron |
| Suction | Cast Iron |
| High Efficiency & Energy Saving Design | Higher output at lesser operating cost and longer life. |
| Design to Prevent Overloading | Protects from overloading & trouble free operations for the years. |
| Wide Voltage Design | Best for low voltage applications with capacity to operate from 160 to 240 volts in 1 Phase. |
| Advance Water Cooled Motor Designs | Protects from overloading & trouble free operations for the years. |
| Motors with "B" Class Insulation | Made for continuous run and lesser chances of motor burning. |
| CED Coating | Provides 5 times more protection from corrosion over conventional painting. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Kirloskar 1 HP 8 Stages 4 Inch 1Phase Water Filled Borewell Submersible Pump, 210 ft Head (BIGFLOW-1008)
Kirloskar 1 HP 8 Stages 4 Inch 1Phase Water Filled Borewell Submersible Pump, 210 ft Head (BIGFLOW-1008) is listed under Submersible Pump in Water Pumps and Motors on ToolHaat, supplied by Kirloskar. Key specifications include power 1 hp, weight (approx.) 23 kg, flow rate 105 lpm, head 64 meter, model no. BIGFLOW-1008. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
Kirloskar 1 HP 8 Stages 4 Inch 1Phase Water Filled Borewell Submersible Pump, 210 ft Head (BIGFLOW-1008) specifications
| Power | 1 hp |
|---|---|
| Weight (Approx.) | 23 kg |
| Flow Rate | 105 lpm |
| Head | 64 meter |
| Model No. | BIGFLOW-1008 |
| Product Type | Borewell Submersible Pump |
| Power Source | Corded Electric |
| Wattage | 0.75 kW |
| Power Supply | 220 V, 50 Hz, AC Supply |
| Electricity Connection | Single Phase |
| Boring Size | 4 Inch (100 mm) |
| Cooling Type | Water Filled |
FAQs related to Kirloskar 1 HP 8 Stages 4 Inch 1Phase Water Filled Borewell Submersible Pump, 210 ft Head (BIGFLOW-1008)
Are spare parts and accessories for Kirloskar 1 HP 8 Stages 4 Inch 1Phase Water Filled Borewell Submersible Pump, 210 ft Head (BIGFLOW-1008) available separately?
+
Yes — related accessory subcategories on ToolHaat list compatible spares and fittings for Kirloskar 1 HP 8 Stages 4 Inch 1Phase Water Filled Borewell Submersible Pump, 210 ft Head (BIGFLOW-1008), so replacement parts can be sourced without needing to buy a full new unit.
What capacity or specification of Kirloskar 1 HP 8 Stages 4 Inch 1Phase Water Filled Borewell Submersible Pump, 210 ft Head (BIGFLOW-1008) should I choose?
+
The right Kirloskar 1 HP 8 Stages 4 Inch 1Phase Water Filled Borewell Submersible Pump, 210 ft Head (BIGFLOW-1008) depends on your required flow rate, head (lift height), and power source — each listing specifies these details. For help matching a pump to your specific application, contact ToolHaat support or submit an RFQ with your requirements.
Does ToolHaat offer installation guidance for Kirloskar 1 HP 8 Stages 4 Inch 1Phase Water Filled Borewell Submersible Pump, 210 ft Head (BIGFLOW-1008)?
+
Installation requirements vary by Kirloskar 1 HP 8 Stages 4 Inch 1Phase Water Filled Borewell Submersible Pump, 210 ft Head (BIGFLOW-1008) model — check the product listing for included documentation. For larger installations, our sales team can help connect you with the vendor for on-site guidance where available.
How is Kirloskar 1 HP 8 Stages 4 Inch 1Phase Water Filled Borewell Submersible Pump, 210 ft Head (BIGFLOW-1008) packaged and delivered to avoid transit damage?
+
Kirloskar 1 HP 8 Stages 4 Inch 1Phase Water Filled Borewell Submersible Pump, 210 ft Head (BIGFLOW-1008) is shipped in protective packaging designed for the product’s weight and components. Delivery timelines are shown at checkout based on your location — larger installations may need coordinated delivery scheduling, which our sales team can help arrange.
What if Kirloskar 1 HP 8 Stages 4 Inch 1Phase Water Filled Borewell Submersible Pump, 210 ft Head (BIGFLOW-1008) arrives with a manufacturing defect?
+
Contact ToolHaat support with your order ID if Kirloskar 1 HP 8 Stages 4 Inch 1Phase Water Filled Borewell Submersible Pump, 210 ft Head (BIGFLOW-1008) shows a manufacturing defect on arrival. Replacement or refund is handled per our returns policy in coordination with the listing vendor.
