Kirloskar · SKU: thwpm927

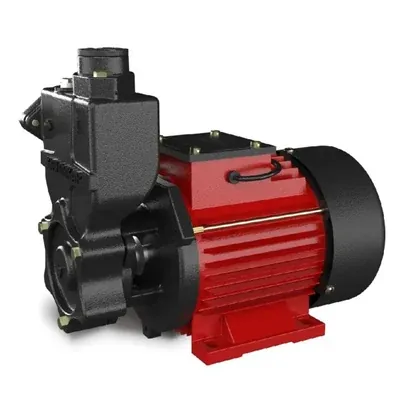

Kirloskar 1 HP 3Phase Self Priming Monoblock Pump, 48 m Max. Head, 25 x 25 mm (MINI JALNAYAK-I (GOLD))
In Stock
₹12,275₹17,000-28% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Kirloskar |
| Power | 1 hp |
| Weight (Approx.) | 14 kg |
| Flow Rate | 68 lpm |
| Head | 48 meter |
| Model No | MINI JALNAYAK-I (GOLD) |
| Product Type | Self Priming Monoblock Pump |
| Rated Voltage | 415 Volt, 50 Hz, AC Power Supply |
| Electricity Connection | Three Phase |
| Pipe Size (Suction x Delivery) | 25 x 25 mm |
| Head Range | 6-48 Meter ( 20-157 Foot) |
| Discharge Range | 4050 - 1040 LPH (68-17 LPM) |
| Insulation Type | F Class |
| Impeller | Brass |
| Delivery Casing | Cast Iron |
| Motor Body | Aluminum Die Cast |
| Shaft | Carbon Steel |
| Mechanical Seal | Carbon Vs. Ceramic |
| High Efficiency and Energy Saving Design | Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings. |
| High Grade F - Class Insulation | Robust design to withstand higher temperatures reducing the chances of motor burning and ensures the reliability, safety and enhanced life. |
| Thermal Overload Protector (TOP) | The pump set features a Thermal Overload protector that protects the motor from overloading, shielding the motor and associated circuit from the effects of fault current. |
| Cathodic Electro Deposition (CED) Coating | CED is the latest coating technology for corrosion resistance with uniform coating, provides 5 times more protection over conventional painting, resulting in longer life. Hydraulic parts of Kirloskar pumps are CED coated. |
| Wide Voltage Range | The motor is designed to withstand wide voltage fluctuations from 300 to 440 volts (Three Phase) and reduces chances of motor burning due to low/high voltage. |
| Shielded Ball Bearing | The pumps are fitted with shielded ball bearings, which results in low noise level and so no external lubrication is required throughout the life cycle. |
| Dynamically Balanced Rotating Parts | Minimum vibrations protect components from damages during the operations, consistent performance as concentricity is maintained. |
| Easy Maintainable Designs | Easy maintainable design and better interchangeability of components so that pump can be serviced even at remote locations by semi-skilled technicians. |
| High Suction Lift | The pump has suction lift capacity up to 7.5 meters with high head, allowing to pump water at high volumes for a variety of applications. |
| Enhanced Safety Features | All electrical parts of the pump are covered, which makes it safer to use. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Kirloskar 1 HP 3Phase Self Priming Monoblock Pump, 48 m Max. Head, 25 x 25 mm (MINI JALNAYAK-I (GOLD))
Kirloskar 1 HP 3Phase Self Priming Monoblock Pump, 48 m Max. Head, 25 x 25 mm (MINI JALNAYAK-I (GOLD)) is listed under Monoblock Pump in Water Pumps and Motors on ToolHaat, supplied by Kirloskar. Key specifications include power 1 hp, weight (approx.) 14 kg, flow rate 68 lpm, head 48 meter, model no MINI JALNAYAK-I (GOLD). ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
Kirloskar 1 HP 3Phase Self Priming Monoblock Pump, 48 m Max. Head, 25 x 25 mm (MINI JALNAYAK-I (GOLD)) specifications
| Power | 1 hp |
|---|---|
| Weight (Approx.) | 14 kg |
| Flow Rate | 68 lpm |
| Head | 48 meter |
| Model No | MINI JALNAYAK-I (GOLD) |
| Product Type | Self Priming Monoblock Pump |
| Rated Voltage | 415 Volt, 50 Hz, AC Power Supply |
| Electricity Connection | Three Phase |
| Pipe Size (Suction x Delivery) | 25 x 25 mm |
| Head Range | 6-48 Meter ( 20-157 Foot) |
| Discharge Range | 4050 - 1040 LPH (68-17 LPM) |
| Insulation Type | F Class |
FAQs related to Kirloskar 1 HP 3Phase Self Priming Monoblock Pump, 48 m Max. Head, 25 x 25 mm (MINI JALNAYAK-I (GOLD))
What if Kirloskar 1 HP 3Phase Self Priming Monoblock Pump, 48 m Max. Head, 25 x 25 mm (MINI JALNAYAK-I (GOLD)) arrives with a manufacturing defect?
+
Contact ToolHaat support with your order ID if Kirloskar 1 HP 3Phase Self Priming Monoblock Pump, 48 m Max. Head, 25 x 25 mm (MINI JALNAYAK-I (GOLD)) shows a manufacturing defect on arrival. Replacement or refund is handled per our returns policy in coordination with the listing vendor.
Can I get bulk pricing for Kirloskar 1 HP 3Phase Self Priming Monoblock Pump, 48 m Max. Head, 25 x 25 mm (MINI JALNAYAK-I (GOLD)) if I need multiple units?
+
Yes — Kirloskar 1 HP 3Phase Self Priming Monoblock Pump, 48 m Max. Head, 25 x 25 mm (MINI JALNAYAK-I (GOLD)) uses tiered bulk pricing on ToolHaat, with unit cost decreasing at higher order quantities. For distributor or contractor-level volumes, use the RFQ feature for a dedicated quote.
What capacity or specification of Kirloskar 1 HP 3Phase Self Priming Monoblock Pump, 48 m Max. Head, 25 x 25 mm (MINI JALNAYAK-I (GOLD)) should I choose?
+
The right Kirloskar 1 HP 3Phase Self Priming Monoblock Pump, 48 m Max. Head, 25 x 25 mm (MINI JALNAYAK-I (GOLD)) depends on your required flow rate, head (lift height), and power source — each listing specifies these details. For help matching a pump to your specific application, contact ToolHaat support or submit an RFQ with your requirements.
Does ToolHaat offer installation guidance for Kirloskar 1 HP 3Phase Self Priming Monoblock Pump, 48 m Max. Head, 25 x 25 mm (MINI JALNAYAK-I (GOLD))?
+
Installation requirements vary by Kirloskar 1 HP 3Phase Self Priming Monoblock Pump, 48 m Max. Head, 25 x 25 mm (MINI JALNAYAK-I (GOLD)) model — check the product listing for included documentation. For larger installations, our sales team can help connect you with the vendor for on-site guidance where available.
Are spare parts and accessories for Kirloskar 1 HP 3Phase Self Priming Monoblock Pump, 48 m Max. Head, 25 x 25 mm (MINI JALNAYAK-I (GOLD)) available separately?
+
Yes — related accessory subcategories on ToolHaat list compatible spares and fittings for Kirloskar 1 HP 3Phase Self Priming Monoblock Pump, 48 m Max. Head, 25 x 25 mm (MINI JALNAYAK-I (GOLD)), so replacement parts can be sourced without needing to buy a full new unit.
