Kirloskar · SKU: thwpm679

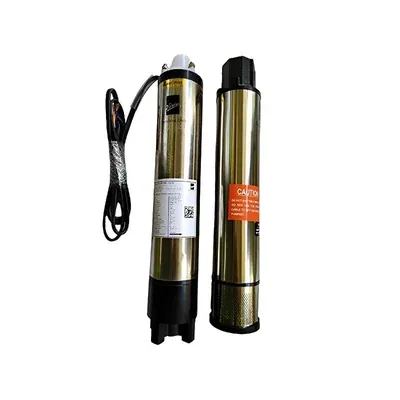

Kirloskar 1 HP 10 Stages 4 Inch 1Phase Water Filled Submersible Pump, 262 ft Head (BIGFLOW-1010A)
In Stock
₹22,274₹28,943-23% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Kirloskar |
| Power | 1 hp |
| Weight (Approx.) | 23 kg |
| Flow Rate | 105 lpm |
| Head | 80 meter |
| Model No. | BIGFLOW-1010A |
| Product Type | Borewell Submersible Pump |
| Power Source | Corded Electric |
| Wattage | 0.75 kW |
| Electricity Connection | Single Phase |
| Motor Type | Water Filled |
| Current Rating | 8 Amp |
| Borewell Size | 4 Inch (100 mm) |
| Max. Head Range | 262 Feet (80 meters) |
| Delivery Size | 38 mm |
| No. of Stages | 10 |
| Max. Discharge Rate | 105 LPM (6300 LPH) |
| Winding Material | Copper |
| Pump Housing | Stainless Steel |
| Pump Shaft | Stainless Steel |
| Motor Housing | Stainless Steel |
| Motor Shaft | Stainless Steel |
| Impellers | Noryl |
| Diffuser | Noryl |
| Winding | Copper |
| High Efficiency & Energy Saving Design | Higher output at lesser operating cost and longer life . |
| Design to Prevent Overloading | Protects from overloading & trouble free operations for the years. |
| Wide Voltage Design | Best for low voltage applications with capacity to operate from 160 to 240 volts in 1 Phase. |
| Advance Water Cooled Motor Designs | Protects from overloading & trouble free operations for the years. |
| Motors with "B" Class Insulation | Made for continuous run and lesser chances of motor burning. |
| CED Coating | Provides 5 times more protection from corrosion over conventional painting. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Kirloskar 1 HP 10 Stages 4 Inch 1Phase Water Filled Submersible Pump, 262 ft Head (BIGFLOW-1010A)
Kirloskar 1 HP 10 Stages 4 Inch 1Phase Water Filled Submersible Pump, 262 ft Head (BIGFLOW-1010A) is listed under Submersible Pump in Water Pumps and Motors on ToolHaat, supplied by Kirloskar. Key specifications include power 1 hp, weight (approx.) 23 kg, flow rate 105 lpm, head 80 meter, model no. BIGFLOW-1010A. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
Kirloskar 1 HP 10 Stages 4 Inch 1Phase Water Filled Submersible Pump, 262 ft Head (BIGFLOW-1010A) specifications
| Power | 1 hp |
|---|---|
| Weight (Approx.) | 23 kg |
| Flow Rate | 105 lpm |
| Head | 80 meter |
| Model No. | BIGFLOW-1010A |
| Product Type | Borewell Submersible Pump |
| Power Source | Corded Electric |
| Wattage | 0.75 kW |
| Electricity Connection | Single Phase |
| Motor Type | Water Filled |
| Current Rating | 8 Amp |
| Borewell Size | 4 Inch (100 mm) |
FAQs related to Kirloskar 1 HP 10 Stages 4 Inch 1Phase Water Filled Submersible Pump, 262 ft Head (BIGFLOW-1010A)
Can I compare multiple brands of Kirloskar 1 HP 10 Stages 4 Inch 1Phase Water Filled Submersible Pump, 262 ft Head (BIGFLOW-1010A) before purchasing?
+
Yes — ToolHaat lists Kirloskar 1 HP 10 Stages 4 Inch 1Phase Water Filled Submersible Pump, 262 ft Head (BIGFLOW-1010A) from multiple verified vendors at different price points and specifications, letting you compare motor power, material, and price before a bulk purchase decision.
Can I get bulk pricing for Kirloskar 1 HP 10 Stages 4 Inch 1Phase Water Filled Submersible Pump, 262 ft Head (BIGFLOW-1010A) if I need multiple units?
+
Yes — Kirloskar 1 HP 10 Stages 4 Inch 1Phase Water Filled Submersible Pump, 262 ft Head (BIGFLOW-1010A) uses tiered bulk pricing on ToolHaat, with unit cost decreasing at higher order quantities. For distributor or contractor-level volumes, use the RFQ feature for a dedicated quote.
What capacity or specification of Kirloskar 1 HP 10 Stages 4 Inch 1Phase Water Filled Submersible Pump, 262 ft Head (BIGFLOW-1010A) should I choose?
+
The right Kirloskar 1 HP 10 Stages 4 Inch 1Phase Water Filled Submersible Pump, 262 ft Head (BIGFLOW-1010A) depends on your required flow rate, head (lift height), and power source — each listing specifies these details. For help matching a pump to your specific application, contact ToolHaat support or submit an RFQ with your requirements.
Is a GST invoice provided for Kirloskar 1 HP 10 Stages 4 Inch 1Phase Water Filled Submersible Pump, 262 ft Head (BIGFLOW-1010A) purchases?
+
Yes, every Kirloskar 1 HP 10 Stages 4 Inch 1Phase Water Filled Submersible Pump, 262 ft Head (BIGFLOW-1010A) order generates a GST invoice automatically, suitable for input tax credit claims and standard business procurement records.
Does Kirloskar 1 HP 10 Stages 4 Inch 1Phase Water Filled Submersible Pump, 262 ft Head (BIGFLOW-1010A) come with a manufacturer warranty?
+
Warranty coverage for Kirloskar 1 HP 10 Stages 4 Inch 1Phase Water Filled Submersible Pump, 262 ft Head (BIGFLOW-1010A) varies by brand and is listed on the product page. ToolHaat support can help connect you with the vendor for warranty claims or servicing after your purchase.
