Kirloskar · SKU: thwpm1034

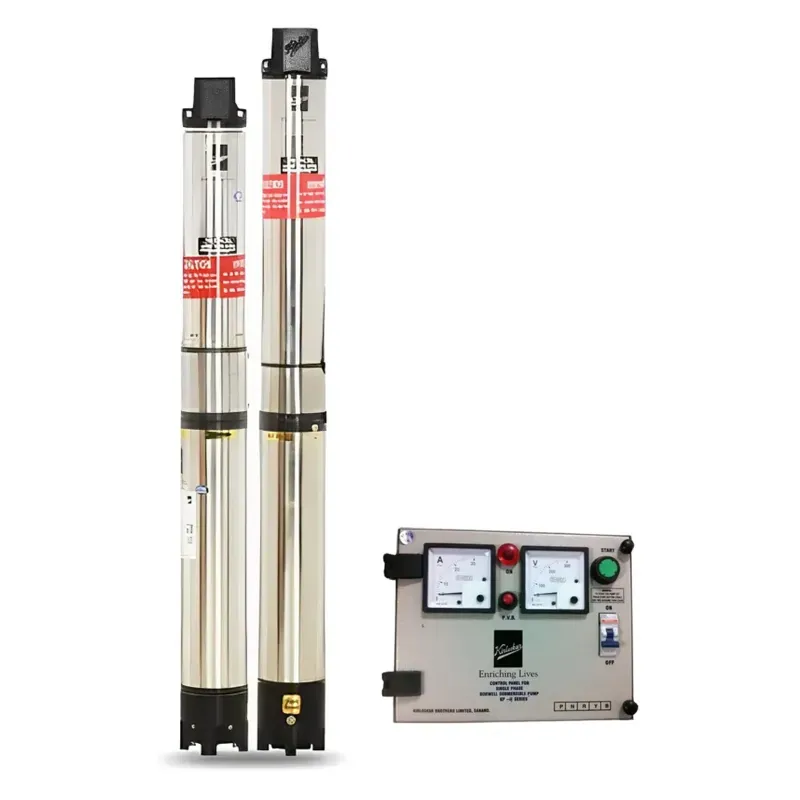

Kirloskar 1 HP 10 Stage(4 Inch) 1Ph Water Cooled Submersible Pump With CP, 256 ft Head (NEO 60-1010 CP)
In Stock
₹22,769₹29,586-23% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Kirloskar |
| Power | 1 hp |
| Weight (Approx.) | 23 kg |
| Flow Rate | 105 lpm |
| Head | 78 meter |
| Model No. | NEO 60-1010 CP |
| Product Type | Borewell Submersible Pump |
| Wattage | 0.75 kW |
| No Of Stages | 10 |
| Outlet Size | 32 mm |
| Rated Voltage | 220 Volt, 50 Hz, AC Power Supply |
| Electricity Connection | Single Phase |
| Rated Current | 8.2 Amp. |
| Max. Head Range | 78 Meter (256 Feet) |
| Max. Discharge Rate | 105 LPM (6300 LPH) |
| Borewell Size | 100 mm (4 inch) |
| Cooling Type | Water Cooled |
| Insulation | B Class |
| Protection | IP 68 |
| Winding Material | Copper |
| Pump Housing | Stainless Steel |
| Pump Shaft | Stainless Steel |
| Motor Housing | Stainless Steel |
| Motor Shaft | Stainless Steel |
| Thrust Bearing | Carbon + Stainless Steel |
| Motor/Pump Bushes | Gun Metal |
| Impeller | Noryl |
| Diffuser | Noryl |
| NRV | Cast Iron |
| Suction | Cast Iron |
| Wide Voltage Range Operability | Voltage range is 180 - 240 Volts. Protects motor from burning due to lower/higher voltage |
| High Efficiency and Energy-saving Design | Higher output, lesser power consumption |
| Dynamically Balanced Rotating Parts | Resulting in lesser vibrations and longer trouble-free operation |
| Longer and Trouble Free Life | High grade engineering materials like Graded Cast Iron Components, Stainless Steel Shaft, Noryl Impellers, Bronze Bushes, Heavy duty Carbon + SS Thrust Plate, 99.9 % pure Copper Winding Wires for longer and trouble free life. |
| Advanced Water Cooled Motors Designs | The motor is filled with potable water, protects from overheating and facilitates smoother and trouble free operation for the years. |
| Sand Fighter Designs | Innovative Sand Fighter Designs restricts the entry of sand in motors, protects the pump and motor bushes to perform well in sandy borewells and increase the pump set life. |
| CED - Cathodic Electro Deposition Coating | Better resistance against corrosion. |
| Nationwide Service Network | Easy availability of spares and prompt after sales services through nationwide company authorised service centers. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Kirloskar 1 HP 10 Stage(4 Inch) 1Ph Water Cooled Submersible Pump With CP, 256 ft Head (NEO 60-1010 CP)
Kirloskar 1 HP 10 Stage(4 Inch) 1Ph Water Cooled Submersible Pump With CP, 256 ft Head (NEO 60-1010 CP) is listed under Submersible Pump in Water Pumps and Motors on ToolHaat, supplied by Kirloskar. Key specifications include power 1 hp, weight (approx.) 23 kg, flow rate 105 lpm, head 78 meter, model no. NEO 60-1010 CP. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
Kirloskar 1 HP 10 Stage(4 Inch) 1Ph Water Cooled Submersible Pump With CP, 256 ft Head (NEO 60-1010 CP) specifications
| Power | 1 hp |
|---|---|
| Weight (Approx.) | 23 kg |
| Flow Rate | 105 lpm |
| Head | 78 meter |
| Model No. | NEO 60-1010 CP |
| Product Type | Borewell Submersible Pump |
| Wattage | 0.75 kW |
| No Of Stages | 10 |
| Outlet Size | 32 mm |
| Rated Voltage | 220 Volt, 50 Hz, AC Power Supply |
| Electricity Connection | Single Phase |
| Rated Current | 8.2 Amp. |
FAQs related to Kirloskar 1 HP 10 Stage(4 Inch) 1Ph Water Cooled Submersible Pump With CP, 256 ft Head (NEO 60-1010 CP)
Can contractors or dealers set up recurring bulk orders for Kirloskar 1 HP 10 Stage(4 Inch) 1Ph Water Cooled Submersible Pump With CP, 256 ft Head (NEO 60-1010 CP)?
+
Yes — contractors and dealers regularly use ToolHaat for recurring Kirloskar 1 HP 10 Stage(4 Inch) 1Ph Water Cooled Submersible Pump With CP, 256 ft Head (NEO 60-1010 CP) procurement. Contact our sales team to set up a standing order arrangement with consistent bulk pricing.
Can I compare multiple brands of Kirloskar 1 HP 10 Stage(4 Inch) 1Ph Water Cooled Submersible Pump With CP, 256 ft Head (NEO 60-1010 CP) before purchasing?
+
Yes — ToolHaat lists Kirloskar 1 HP 10 Stage(4 Inch) 1Ph Water Cooled Submersible Pump With CP, 256 ft Head (NEO 60-1010 CP) from multiple verified vendors at different price points and specifications, letting you compare motor power, material, and price before a bulk purchase decision.
Are spare parts and accessories for Kirloskar 1 HP 10 Stage(4 Inch) 1Ph Water Cooled Submersible Pump With CP, 256 ft Head (NEO 60-1010 CP) available separately?
+
Yes — related accessory subcategories on ToolHaat list compatible spares and fittings for Kirloskar 1 HP 10 Stage(4 Inch) 1Ph Water Cooled Submersible Pump With CP, 256 ft Head (NEO 60-1010 CP), so replacement parts can be sourced without needing to buy a full new unit.
Does ToolHaat offer installation guidance for Kirloskar 1 HP 10 Stage(4 Inch) 1Ph Water Cooled Submersible Pump With CP, 256 ft Head (NEO 60-1010 CP)?
+
Installation requirements vary by Kirloskar 1 HP 10 Stage(4 Inch) 1Ph Water Cooled Submersible Pump With CP, 256 ft Head (NEO 60-1010 CP) model — check the product listing for included documentation. For larger installations, our sales team can help connect you with the vendor for on-site guidance where available.
What if Kirloskar 1 HP 10 Stage(4 Inch) 1Ph Water Cooled Submersible Pump With CP, 256 ft Head (NEO 60-1010 CP) arrives with a manufacturing defect?
+
Contact ToolHaat support with your order ID if Kirloskar 1 HP 10 Stage(4 Inch) 1Ph Water Cooled Submersible Pump With CP, 256 ft Head (NEO 60-1010 CP) shows a manufacturing defect on arrival. Replacement or refund is handled per our returns policy in coordination with the listing vendor.
