Kirloskar · SKU: thwpm1026

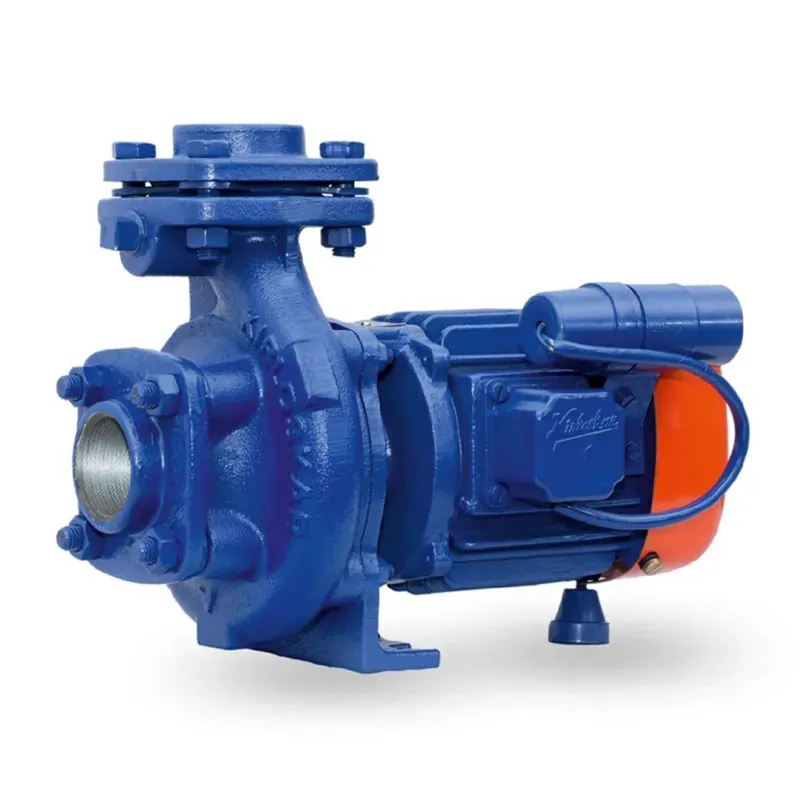

Kirloskar 0.5 HP Single Phase Centrifugal Monoblock Pump, 10 m Max. Head, 12240 LPH, 50 x 40 mm (KDS-0510)
In Stock
₹11,434₹14,724-22% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Kirloskar |
| Power | 0.5 hp |
| Weight (Approx.) | 23 kg |
| Flow Rate | 204 lpm |
| Head | 10 meter |
| Model No. | KDS-0510 |
| Product Type | Monoblock Pump |
| Power Source | Corded Electric |
| Motor Power | 0.37 kW |
| Power Supply | 210V, 50 Hz, AC Supply |
| Electricity Connection | Single Phase |
| Head Range | 20 to 33 Feet (6 to 10 meters) |
| Pipe Size (Suction x Delivery) | 50 x 40 mm |
| Discharge Rate | 204-60 LPM (12240 to 3600 LPH) |
| Impeller | Cast Iron/Noryl |
| Delivery Casing | Cast Iron |
| Motor Body | Cast Iron |
| Pump Shaft | Carbon Steel |
| Sealing | Mechanical Seal |
| Wide Voltage Design | The motor is designed to withstand wide voltage fluctuations from 350 to 440 volts and reduces motor burning in case of low voltage. |
| Replaceable Wearing Parts | All wearing parts within the pumps are easily accessible and replaceable which facilitates ease of maintenance thereby extending the life of the pump. |
| TOP - Thermal Overload Protector | The pump set features a Thermal Overload protector that protects the motor from overloading, shielding the motor and associated circuit from the effects of fault current. |
| CED – Cathodic Electro Deposition | CED is the latest coating technology for corrosion resistance with uniform coating. It provides 5 times more protection over conventional painting, resulting in longer life. All major CI parts of Kirloskar pumps coming in contact with the water are CED coated. |
| Automatic Air Release | Automatically releases air when the pump starts which ensures swifter and smoother operations, thus eliminates the necessity of operating air release cock and ensures swifter and smoother operations. |
| High Efficiency And Energy Saving Design | Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings. |
| Dynamically Balanced Rotating Parts | Minimum vibrations protect components from damages during the operations, thus ensuring consistent performance as concentricity is maintained. |
| Designed to Prevent Overloading | Lesser chances of motor burning as the motor does not get overloaded even if the pump is operated at a head lower than recommended, thus ensuring substantial cost savings due to low maintenance and breakdown. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Kirloskar 0.5 HP Single Phase Centrifugal Monoblock Pump, 10 m Max. Head, 12240 LPH, 50 x 40 mm (KDS-0510)
Kirloskar 0.5 HP Single Phase Centrifugal Monoblock Pump, 10 m Max. Head, 12240 LPH, 50 x 40 mm (KDS-0510) is listed under Monoblock Pump in Water Pumps and Motors on ToolHaat, supplied by Kirloskar. Key specifications include power 0.5 hp, weight (approx.) 23 kg, flow rate 204 lpm, head 10 meter, model no. KDS-0510. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
Kirloskar 0.5 HP Single Phase Centrifugal Monoblock Pump, 10 m Max. Head, 12240 LPH, 50 x 40 mm (KDS-0510) specifications
| Power | 0.5 hp |
|---|---|
| Weight (Approx.) | 23 kg |
| Flow Rate | 204 lpm |
| Head | 10 meter |
| Model No. | KDS-0510 |
| Product Type | Monoblock Pump |
| Power Source | Corded Electric |
| Motor Power | 0.37 kW |
| Power Supply | 210V, 50 Hz, AC Supply |
| Electricity Connection | Single Phase |
| Head Range | 20 to 33 Feet (6 to 10 meters) |
| Pipe Size (Suction x Delivery) | 50 x 40 mm |
FAQs related to Kirloskar 0.5 HP Single Phase Centrifugal Monoblock Pump, 10 m Max. Head, 12240 LPH, 50 x 40 mm (KDS-0510)
Can I compare multiple brands of Kirloskar 0.5 HP Single Phase Centrifugal Monoblock Pump, 10 m Max. Head, 12240 LPH, 50 x 40 mm (KDS-0510) before purchasing?
+
Yes — ToolHaat lists Kirloskar 0.5 HP Single Phase Centrifugal Monoblock Pump, 10 m Max. Head, 12240 LPH, 50 x 40 mm (KDS-0510) from multiple verified vendors at different price points and specifications, letting you compare motor power, material, and price before a bulk purchase decision.
Are spare parts and accessories for Kirloskar 0.5 HP Single Phase Centrifugal Monoblock Pump, 10 m Max. Head, 12240 LPH, 50 x 40 mm (KDS-0510) available separately?
+
Yes — related accessory subcategories on ToolHaat list compatible spares and fittings for Kirloskar 0.5 HP Single Phase Centrifugal Monoblock Pump, 10 m Max. Head, 12240 LPH, 50 x 40 mm (KDS-0510), so replacement parts can be sourced without needing to buy a full new unit.
Is a GST invoice provided for Kirloskar 0.5 HP Single Phase Centrifugal Monoblock Pump, 10 m Max. Head, 12240 LPH, 50 x 40 mm (KDS-0510) purchases?
+
Yes, every Kirloskar 0.5 HP Single Phase Centrifugal Monoblock Pump, 10 m Max. Head, 12240 LPH, 50 x 40 mm (KDS-0510) order generates a GST invoice automatically, suitable for input tax credit claims and standard business procurement records.
What capacity or specification of Kirloskar 0.5 HP Single Phase Centrifugal Monoblock Pump, 10 m Max. Head, 12240 LPH, 50 x 40 mm (KDS-0510) should I choose?
+
The right Kirloskar 0.5 HP Single Phase Centrifugal Monoblock Pump, 10 m Max. Head, 12240 LPH, 50 x 40 mm (KDS-0510) depends on your required flow rate, head (lift height), and power source — each listing specifies these details. For help matching a pump to your specific application, contact ToolHaat support or submit an RFQ with your requirements.
Does Kirloskar 0.5 HP Single Phase Centrifugal Monoblock Pump, 10 m Max. Head, 12240 LPH, 50 x 40 mm (KDS-0510) come with a manufacturer warranty?
+
Warranty coverage for Kirloskar 0.5 HP Single Phase Centrifugal Monoblock Pump, 10 m Max. Head, 12240 LPH, 50 x 40 mm (KDS-0510) varies by brand and is listed on the product page. ToolHaat support can help connect you with the vendor for warranty claims or servicing after your purchase.
