KBS · SKU: thwpm628

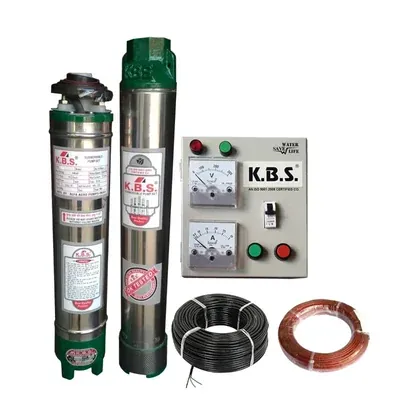

KBS 1.5 HP 18 Stage(3 Inch) V3 Single Phase Water Cooled Submersible Pump With Control Panel, 30 m Submersible Cable, Safety Wire
In Stock
₹9,899₹13,999-29% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | KBS |
| Power | 1.1 kw |
| Weight (Approx.) | 18 kg |
| Flow Rate | 70 lpm |
| Head | 54 meter |
| Product Type | Submersible Pump |
| Wattage | 1.1 kW |
| Supply Voltage | 150-240 Volt, 50 Hz, AC Power Supply |
| Electricity Connection | Single Phase |
| No Of Stages | 18 Stage |
| Pump Type | V3 Type |
| Suitable Bore Size | 3 inch (76 mm) |
| Cora | 3 |
| Max. Head Range | 180ft. (54 Meter) |
| Max. Flow/Discharge Rate | 70 LPM (4200 LPH) |
| Pipe Size (Suction x Delivery) | 25 x 25 mm (1 x 1 inch) |
| Stamping | 200 mm |
| Motor Body | Stainless Steel |
| Pump Bowl | PVC |
| Motor Shaft | Steel |
| Thrust Bearing | Carbon Vs Stainless Steel |
| Rotor | Die Cast |
| Submersible Pump Warranty | 1 Year Warranty on Manufacturing Defects. |
| Accessories Warranty | NO Warranty on the accessories. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About KBS 1.5 HP 18 Stage(3 Inch) V3 Single Phase Water Cooled Submersible Pump With Control Panel, 30 m Submersible Cable, Safety Wire
KBS 1.5 HP 18 Stage(3 Inch) V3 Single Phase Water Cooled Submersible Pump With Control Panel, 30 m Submersible Cable, Safety Wire is listed under Submersible Pump in Water Pumps and Motors on ToolHaat, supplied by KBS. Key specifications include power 1.1 kw, weight (approx.) 18 kg, flow rate 70 lpm, head 54 meter, product type Submersible Pump. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
KBS 1.5 HP 18 Stage(3 Inch) V3 Single Phase Water Cooled Submersible Pump With Control Panel, 30 m Submersible Cable, Safety Wire specifications
| Power | 1.1 kw |
|---|---|
| Weight (Approx.) | 18 kg |
| Flow Rate | 70 lpm |
| Head | 54 meter |
| Product Type | Submersible Pump |
| Wattage | 1.1 kW |
| Supply Voltage | 150-240 Volt, 50 Hz, AC Power Supply |
| Electricity Connection | Single Phase |
| No Of Stages | 18 Stage |
| Pump Type | V3 Type |
| Suitable Bore Size | 3 inch (76 mm) |
| Cora | 3 |
FAQs related to KBS 1.5 HP 18 Stage(3 Inch) V3 Single Phase Water Cooled Submersible Pump With Control Panel, 30 m Submersible Cable, Safety Wire
Is a GST invoice provided for KBS 1.5 HP 18 Stage(3 Inch) V3 Single Phase Water Cooled Submersible Pump With Control Panel, 30 m Submersible Cable, Safety Wire purchases?
+
Yes, every KBS 1.5 HP 18 Stage(3 Inch) V3 Single Phase Water Cooled Submersible Pump With Control Panel, 30 m Submersible Cable, Safety Wire order generates a GST invoice automatically, suitable for input tax credit claims and standard business procurement records.
Can I get bulk pricing for KBS 1.5 HP 18 Stage(3 Inch) V3 Single Phase Water Cooled Submersible Pump With Control Panel, 30 m Submersible Cable, Safety Wire if I need multiple units?
+
Yes — KBS 1.5 HP 18 Stage(3 Inch) V3 Single Phase Water Cooled Submersible Pump With Control Panel, 30 m Submersible Cable, Safety Wire uses tiered bulk pricing on ToolHaat, with unit cost decreasing at higher order quantities. For distributor or contractor-level volumes, use the RFQ feature for a dedicated quote.
What capacity or specification of KBS 1.5 HP 18 Stage(3 Inch) V3 Single Phase Water Cooled Submersible Pump With Control Panel, 30 m Submersible Cable, Safety Wire should I choose?
+
The right KBS 1.5 HP 18 Stage(3 Inch) V3 Single Phase Water Cooled Submersible Pump With Control Panel, 30 m Submersible Cable, Safety Wire depends on your required flow rate, head (lift height), and power source — each listing specifies these details. For help matching a pump to your specific application, contact ToolHaat support or submit an RFQ with your requirements.
Does KBS 1.5 HP 18 Stage(3 Inch) V3 Single Phase Water Cooled Submersible Pump With Control Panel, 30 m Submersible Cable, Safety Wire come with a manufacturer warranty?
+
Warranty coverage for KBS 1.5 HP 18 Stage(3 Inch) V3 Single Phase Water Cooled Submersible Pump With Control Panel, 30 m Submersible Cable, Safety Wire varies by brand and is listed on the product page. ToolHaat support can help connect you with the vendor for warranty claims or servicing after your purchase.
Are spare parts and accessories for KBS 1.5 HP 18 Stage(3 Inch) V3 Single Phase Water Cooled Submersible Pump With Control Panel, 30 m Submersible Cable, Safety Wire available separately?
+
Yes — related accessory subcategories on ToolHaat list compatible spares and fittings for KBS 1.5 HP 18 Stage(3 Inch) V3 Single Phase Water Cooled Submersible Pump With Control Panel, 30 m Submersible Cable, Safety Wire, so replacement parts can be sourced without needing to buy a full new unit.
