KBS · SKU: thwpm632

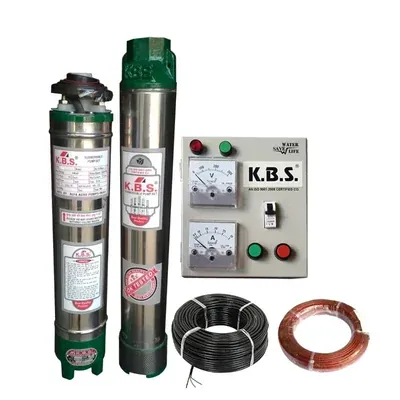

KBS 1.0 HP 15 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump With Control Panel, 30 m Submersible Cable, Safety Wire
In Stock
₹8,315₹11,759-29% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | KBS |
| Power | 1 hp |
| Weight (Approx.) | 14.4 kg |
| Flow Rate | 80 lpm |
| Head | 91 meter |
| Product Type | Submersible Pump |
| Wattage | 0.75 kW |
| Supply Voltage | 150-220 Volt, 50 Hz, AC Power Supply |
| Electricity Connection | Single Phase |
| No Of Stages | 15 Stage |
| Pump Type | V4 Type |
| Suitable Bore Size | 4 inch (100 mm) |
| Cora | 2 |
| Max. Head Range | 300 Ft. (91 Meter) |
| Max. Flow/Discharge Rate | 80 LPM (4800 LPH) |
| Pipe Size (Suction x Delivery) | 25x25 mm (1 x 1 inch) |
| Motor Body | Stainless Steel |
| Motor Rotor | Copper |
| Pump Bowl | Noryl (lvory) |
| Impeller | Noryl (lvory) |
| Motor Pipe | Stainless Steel |
| Bearing Bush | Leaded Bronze |
| Motor Shaft | SS-410 |
| Thrust Bearing | Carbon Vs Stainless Steel |
| Stamping | CRNGO |
| Rotor | EC Grade Copper Conductor |
| Housing/Base/Connection Piece | CI (Grade FG-200/FG-220) |
| Suction/Outlet | CI (Grade FG-200/FG-220) |
| Diffuser | Noryl (Engineering Glass Filled) |
| Pump Shaft | SS-410 |
| Pump Pipe | Stainless Steel |
| Submersible Pump Warranty | 1 Year Warranty on Manufacturing Defects. |
| Accessories Warranty | NO Warranty on the accessories. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About KBS 1.0 HP 15 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump With Control Panel, 30 m Submersible Cable, Safety Wire
KBS 1.0 HP 15 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump With Control Panel, 30 m Submersible Cable, Safety Wire is listed under Submersible Pump in Water Pumps and Motors on ToolHaat, supplied by KBS. Key specifications include power 1 hp, weight (approx.) 14.4 kg, flow rate 80 lpm, head 91 meter, product type Submersible Pump. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
KBS 1.0 HP 15 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump With Control Panel, 30 m Submersible Cable, Safety Wire specifications
| Power | 1 hp |
|---|---|
| Weight (Approx.) | 14.4 kg |
| Flow Rate | 80 lpm |
| Head | 91 meter |
| Product Type | Submersible Pump |
| Wattage | 0.75 kW |
| Supply Voltage | 150-220 Volt, 50 Hz, AC Power Supply |
| Electricity Connection | Single Phase |
| No Of Stages | 15 Stage |
| Pump Type | V4 Type |
| Suitable Bore Size | 4 inch (100 mm) |
| Cora | 2 |
