KBS · SKU: thwpm851

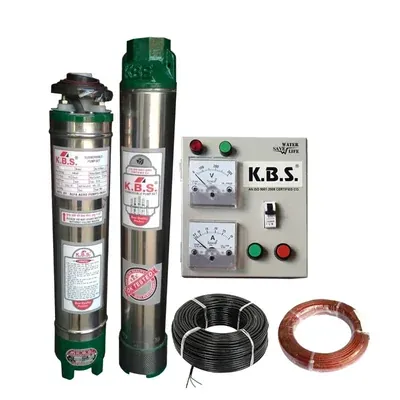

KBS 0.5 HP 10 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump With Control Panel, 30 m Submersible Cable, Safety Wire
In Stock
₹7,523₹10,639-29% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | KBS |
| Power | 0.5 hp |
| Weight (Approx.) | 16.5 kg |
| Flow Rate | 60 lpm |
| Head | 61 meter |
| Product Type | Submersible Pump |
| Wattage | 0.37 kW |
| Supply Voltage | 150-220 Volt, 50 Hz, AC Power Supply |
| Electricity Connection | Single Phase |
| No Of Stages | 10 Stage |
| Pump Type | V4 Type |
| Suitable Bore Size | 4 inch (100 mm) |
| Cora | 2 |
| Max. Head Range | 200 Ft. (61 Meter) |
| Max. Flow/Discharge Rate | 60 LPM (3600 LPH) |
| Pipe Size (Suction x Delivery) | 25 x 25 mm (1 x 1 inch) |
| Motor Body | Stainless Steel |
| Motor Rotor | Copper |
| Pump Bowl | Noryl (lvory) |
| Impeller | Noryl (lvory) |
| Motor Pipe | Stainless Steel |
| Bearing Bush | Leaded Bronze |
| Motor Shaft | SS-410 |
| Thrust Bearing | Carbon Vs Stainless Steel |
| Stamping | CRNGO |
| Rotor | EC Grade Copper Conductor |
| Housing/Base/Connection Piece | CI (Grade FG-200/FG-220) |
| Suction/Outlet | CI (Grade FG-200/FG-220) |
| Diffuser | Noryl (Engineering Glass Filled) |
| Pump Shaft | SS-410 |
| Pump Pipe | Stainless Steel |
| Submersible Pump Warranty | 1 Year Warranty on Manufacturing Defects. |
| Accessories Warranty | NO Warranty on the accessories. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About KBS 0.5 HP 10 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump With Control Panel, 30 m Submersible Cable, Safety Wire
KBS 0.5 HP 10 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump With Control Panel, 30 m Submersible Cable, Safety Wire is listed under Submersible Pump in Water Pumps and Motors on ToolHaat, supplied by KBS. Key specifications include power 0.5 hp, weight (approx.) 16.5 kg, flow rate 60 lpm, head 61 meter, product type Submersible Pump. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
KBS 0.5 HP 10 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump With Control Panel, 30 m Submersible Cable, Safety Wire specifications
| Power | 0.5 hp |
|---|---|
| Weight (Approx.) | 16.5 kg |
| Flow Rate | 60 lpm |
| Head | 61 meter |
| Product Type | Submersible Pump |
| Wattage | 0.37 kW |
| Supply Voltage | 150-220 Volt, 50 Hz, AC Power Supply |
| Electricity Connection | Single Phase |
| No Of Stages | 10 Stage |
| Pump Type | V4 Type |
| Suitable Bore Size | 4 inch (100 mm) |
| Cora | 2 |
FAQs related to KBS 0.5 HP 10 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump With Control Panel, 30 m Submersible Cable, Safety Wire
Can I compare multiple brands of KBS 0.5 HP 10 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump With Control Panel, 30 m Submersible Cable, Safety Wire before purchasing?
+
Yes — ToolHaat lists KBS 0.5 HP 10 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump With Control Panel, 30 m Submersible Cable, Safety Wire from multiple verified vendors at different price points and specifications, letting you compare motor power, material, and price before a bulk purchase decision.
What capacity or specification of KBS 0.5 HP 10 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump With Control Panel, 30 m Submersible Cable, Safety Wire should I choose?
+
The right KBS 0.5 HP 10 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump With Control Panel, 30 m Submersible Cable, Safety Wire depends on your required flow rate, head (lift height), and power source — each listing specifies these details. For help matching a pump to your specific application, contact ToolHaat support or submit an RFQ with your requirements.
Is a GST invoice provided for KBS 0.5 HP 10 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump With Control Panel, 30 m Submersible Cable, Safety Wire purchases?
+
Yes, every KBS 0.5 HP 10 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump With Control Panel, 30 m Submersible Cable, Safety Wire order generates a GST invoice automatically, suitable for input tax credit claims and standard business procurement records.
Can contractors or dealers set up recurring bulk orders for KBS 0.5 HP 10 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump With Control Panel, 30 m Submersible Cable, Safety Wire?
+
Yes — contractors and dealers regularly use ToolHaat for recurring KBS 0.5 HP 10 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump With Control Panel, 30 m Submersible Cable, Safety Wire procurement. Contact our sales team to set up a standing order arrangement with consistent bulk pricing.
Are spare parts and accessories for KBS 0.5 HP 10 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump With Control Panel, 30 m Submersible Cable, Safety Wire available separately?
+
Yes — related accessory subcategories on ToolHaat list compatible spares and fittings for KBS 0.5 HP 10 Stage(4 Inch) V4 Single Phase Water Cooled Submersible Pump With Control Panel, 30 m Submersible Cable, Safety Wire, so replacement parts can be sourced without needing to buy a full new unit.
