HONDA · SKU: thwpm903

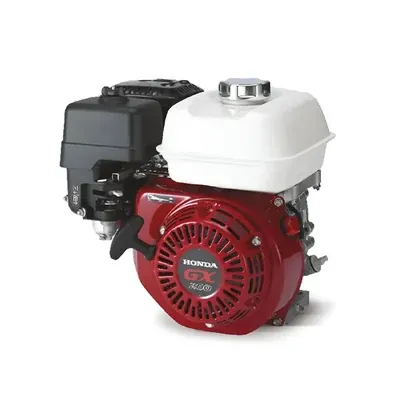

HONDA 196 CC, 5 HP 4 Stroke Single Cylinder Recoil Start Petrol Engine, 3.1 L Fuel Tank (GX200 QTB), 2 Years Warranty
In Stock
₹27,848₹29,999-7% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | HONDA |
| Weight (Approx.) | 19 kg |
| Fuel Used | Petrol |
| Model | GX200 QTB |
| Product Type | Engine |
| Description Code | 4-Stroke Single Cylinder, OHV Petrol Engine, 25° Inclined Cylinder, Horizontal Shaft |
| Cylinder Sleeve Type | Cast Iron Sleeve |
| Bore x Stroke | 68 x 54 mm |
| Displacement | 196 cc |
| Compression ratio | 8.5 : 1 |
| Power | 5 HP (3.7 kW) |
| Speed | 3600 RPM |
| Ignition System | Transistorized |
| Starter | Recoil (el. start optional) |
| Fuel tank capacity | 3.1 Liter |
| Fuel Consumption at Cont. Rated Power | 1.7 L/hr. - 3600 rpm |
| Engine oil capacity | 0.6 Liter |
| Dimensions (L x W x H) | 321 x 376 x 346 mm |
| Max. Net Torque | 12.4 Nm / 1.26 kgfm / 2500 rpm |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About HONDA 196 CC, 5 HP 4 Stroke Single Cylinder Recoil Start Petrol Engine, 3.1 L Fuel Tank (GX200 QTB), 2 Years Warranty
HONDA 196 CC, 5 HP 4 Stroke Single Cylinder Recoil Start Petrol Engine, 3.1 L Fuel Tank (GX200 QTB), 2 Years Warranty is listed under Motor Engine in Water Pumps and Motors on ToolHaat, supplied by HONDA. Key specifications include weight (approx.) 19 kg, fuel used Petrol, product type Engine, description code 4-Stroke Single Cylinder, OHV Petrol Engine, 25° Inclined Cylinder, Horizontal Shaft, cylinder sleeve type Cast Iron Sleeve. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
HONDA 196 CC, 5 HP 4 Stroke Single Cylinder Recoil Start Petrol Engine, 3.1 L Fuel Tank (GX200 QTB), 2 Years Warranty specifications
| Weight (Approx.) | 19 kg |
|---|---|
| Fuel Used | Petrol |
| Product Type | Engine |
| Description Code | 4-Stroke Single Cylinder, OHV Petrol Engine, 25° Inclined Cylinder, Horizontal Shaft |
| Cylinder Sleeve Type | Cast Iron Sleeve |
| Bore x Stroke | 68 x 54 mm |
| Displacement | 196 cc |
| Compression ratio | 8.5 : 1 |
| Power | 5 HP (3.7 kW) |
| Speed | 3600 RPM |
| Ignition System | Transistorized |
| Starter | Recoil (el. start optional) |
FAQs related to HONDA 196 CC, 5 HP 4 Stroke Single Cylinder Recoil Start Petrol Engine, 3.1 L Fuel Tank (GX200 QTB), 2 Years Warranty
Does ToolHaat offer installation guidance for HONDA 196 CC, 5 HP 4 Stroke Single Cylinder Recoil Start Petrol Engine, 3.1 L Fuel Tank (GX200 QTB), 2 Years Warranty?
+
Installation requirements vary by HONDA 196 CC, 5 HP 4 Stroke Single Cylinder Recoil Start Petrol Engine, 3.1 L Fuel Tank (GX200 QTB), 2 Years Warranty model — check the product listing for included documentation. For larger installations, our sales team can help connect you with the vendor for on-site guidance where available.
Can I get bulk pricing for HONDA 196 CC, 5 HP 4 Stroke Single Cylinder Recoil Start Petrol Engine, 3.1 L Fuel Tank (GX200 QTB), 2 Years Warranty if I need multiple units?
+
Yes — HONDA 196 CC, 5 HP 4 Stroke Single Cylinder Recoil Start Petrol Engine, 3.1 L Fuel Tank (GX200 QTB), 2 Years Warranty uses tiered bulk pricing on ToolHaat, with unit cost decreasing at higher order quantities. For distributor or contractor-level volumes, use the RFQ feature for a dedicated quote.
Does HONDA 196 CC, 5 HP 4 Stroke Single Cylinder Recoil Start Petrol Engine, 3.1 L Fuel Tank (GX200 QTB), 2 Years Warranty come with a manufacturer warranty?
+
Warranty coverage for HONDA 196 CC, 5 HP 4 Stroke Single Cylinder Recoil Start Petrol Engine, 3.1 L Fuel Tank (GX200 QTB), 2 Years Warranty varies by brand and is listed on the product page. ToolHaat support can help connect you with the vendor for warranty claims or servicing after your purchase.
What capacity or specification of HONDA 196 CC, 5 HP 4 Stroke Single Cylinder Recoil Start Petrol Engine, 3.1 L Fuel Tank (GX200 QTB), 2 Years Warranty should I choose?
+
The right HONDA 196 CC, 5 HP 4 Stroke Single Cylinder Recoil Start Petrol Engine, 3.1 L Fuel Tank (GX200 QTB), 2 Years Warranty depends on your required flow rate, head (lift height), and power source — each listing specifies these details. For help matching a pump to your specific application, contact ToolHaat support or submit an RFQ with your requirements.
Are spare parts and accessories for HONDA 196 CC, 5 HP 4 Stroke Single Cylinder Recoil Start Petrol Engine, 3.1 L Fuel Tank (GX200 QTB), 2 Years Warranty available separately?
+
Yes — related accessory subcategories on ToolHaat list compatible spares and fittings for HONDA 196 CC, 5 HP 4 Stroke Single Cylinder Recoil Start Petrol Engine, 3.1 L Fuel Tank (GX200 QTB), 2 Years Warranty, so replacement parts can be sourced without needing to buy a full new unit.
