Havells · SKU: thwpm858

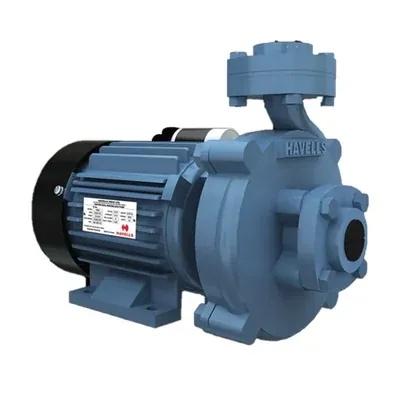

Havells 0.5 HP CM05 Single Phase Centrifugal Monoblock Pump 25 ft Suction Power
In Stock
₹7,315₹7,389-1% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Havells |
| Power | 0.5 hp |
| Weight (Approx.) | 13.5 kg |
| Flow Rate | 116 lpm |
| Head | 22 meter |
| Model No. | CM05 |
| Product Type | Centrifugal Monoblock Pump |
| Wattage | 0.37 kW |
| Electricity Connection | Single Phase |
| Motor Winding | Copper |
| Voltage Operating Range | 180 to 240 V |
| Head Range | 14 to 22 Meter (45 to 72 Feet) |
| Discharge Range | 7000 to 1830 LPH |
| Max. Working Pressure | 2.2 kg/cm² |
| Operating Water Temperature | Up to 65°C |
| High Suction with self priming | Up to 7.5 meters (25 feet) |
| No Load Speed | 2900 RPM |
| Pipe Size (Suction x Delivery) | 25 x 25 mm |
| Motor Body | High Pressure die-cast CI |
| Motor Stator | Low Watt loss silicon steel lamination |
| Pump Casing | Graded Cast Iron |
| Impeller | Cast Iron |
| Shaft | EN-8 |
| Energy Efficient Motor | Motors are with B Class Insulation, which ensures that motor does't get burned and works smoothly even at high temperatures. |
| Pump Performance | Higher performance of the pumps. Pumps have higher suction power and give high discharge in its operating range. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Havells 0.5 HP CM05 Single Phase Centrifugal Monoblock Pump 25 ft Suction Power
Havells 0.5 HP CM05 Single Phase Centrifugal Monoblock Pump 25 ft Suction Power is listed under Monoblock Pump in Water Pumps and Motors on ToolHaat, supplied by Havells. Key specifications include power 0.5 hp, weight (approx.) 13.5 kg, flow rate 116 lpm, head 22 meter, model no. CM05. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
Havells 0.5 HP CM05 Single Phase Centrifugal Monoblock Pump 25 ft Suction Power specifications
| Power | 0.5 hp |
|---|---|
| Weight (Approx.) | 13.5 kg |
| Flow Rate | 116 lpm |
| Head | 22 meter |
| Model No. | CM05 |
| Product Type | Centrifugal Monoblock Pump |
| Wattage | 0.37 kW |
| Electricity Connection | Single Phase |
| Motor Winding | Copper |
| Voltage Operating Range | 180 to 240 V |
| Head Range | 14 to 22 Meter (45 to 72 Feet) |
| Discharge Range | 7000 to 1830 LPH |
FAQs related to Havells 0.5 HP CM05 Single Phase Centrifugal Monoblock Pump 25 ft Suction Power
Are spare parts and accessories for Havells 0.5 HP CM05 Single Phase Centrifugal Monoblock Pump 25 ft Suction Power available separately?
+
Yes — related accessory subcategories on ToolHaat list compatible spares and fittings for Havells 0.5 HP CM05 Single Phase Centrifugal Monoblock Pump 25 ft Suction Power, so replacement parts can be sourced without needing to buy a full new unit.
Does Havells 0.5 HP CM05 Single Phase Centrifugal Monoblock Pump 25 ft Suction Power come with a manufacturer warranty?
+
Warranty coverage for Havells 0.5 HP CM05 Single Phase Centrifugal Monoblock Pump 25 ft Suction Power varies by brand and is listed on the product page. ToolHaat support can help connect you with the vendor for warranty claims or servicing after your purchase.
How is Havells 0.5 HP CM05 Single Phase Centrifugal Monoblock Pump 25 ft Suction Power packaged and delivered to avoid transit damage?
+
Havells 0.5 HP CM05 Single Phase Centrifugal Monoblock Pump 25 ft Suction Power is shipped in protective packaging designed for the product’s weight and components. Delivery timelines are shown at checkout based on your location — larger installations may need coordinated delivery scheduling, which our sales team can help arrange.
Does ToolHaat offer installation guidance for Havells 0.5 HP CM05 Single Phase Centrifugal Monoblock Pump 25 ft Suction Power?
+
Installation requirements vary by Havells 0.5 HP CM05 Single Phase Centrifugal Monoblock Pump 25 ft Suction Power model — check the product listing for included documentation. For larger installations, our sales team can help connect you with the vendor for on-site guidance where available.
Is a GST invoice provided for Havells 0.5 HP CM05 Single Phase Centrifugal Monoblock Pump 25 ft Suction Power purchases?
+
Yes, every Havells 0.5 HP CM05 Single Phase Centrifugal Monoblock Pump 25 ft Suction Power order generates a GST invoice automatically, suitable for input tax credit claims and standard business procurement records.
