Havells · SKU: thwpm864

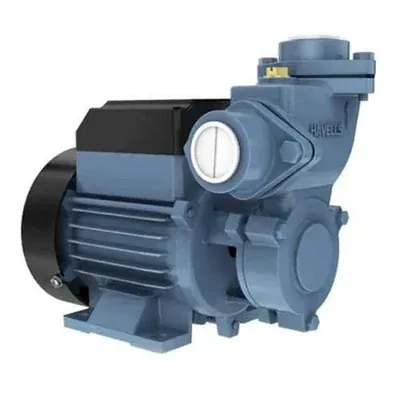

Havells 1 HP Single Phase Self Priming Monoblock Pump, 124 ft Max. Head, 3200 LPH (MX-1)
In Stock
₹7,721₹10,250-25% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Havells |
| Power | 1 hp |
| Weight (Approx.) | 10.62 kg |
| Flow Rate | 53 lpm |
| Head | 38 meter |
| Model No. | MX-1 |
| Product Type | Self Priming Monoblock Pump |
| Wattage | 0.75 kW |
| Electricity Connection | Single Phase |
| Operating Voltage Range | 180 to 240 V |
| Max. Working Pressure | 3.8 kg/cm² |
| Operating Water Temperature | Up to 65°C |
| Motor Winding | Copper |
| In built Thermal Overload Protector | Yes |
| Dynamically Balanced Rotor | Yes |
| Direction of Rotating | Clockwise when viewed from fan cover side |
| High Suction with Self Priming | Up to 7.5 meters (25 feet) |
| Max. Head Range | 6 to 38 meters (20 to 124 feet) |
| No Load Speed | 2900 RPM |
| Pipe Size (Suction x Delivery) | 25 x 25 mm |
| Max. Flow Rate | 53 to 7 LPM (3200 to 420 LPH) |
| Motor Body | High-Quality Die Casted Aluminium |
| Pump Casing | Graded Cast Iron |
| Impeller | Forged Brass |
| Motor Stator | Low Watt loss silicon steel lamination |
| Shaft | EN-8 |
| Energy Efficient Motor | Motors are with F Class Insulation, which ensures that motor does not get burned and works smoothly even at high temperatures. |
| Pump Performance | Pumps have higher suction power and give high discharge in its operating range. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Havells 1 HP Single Phase Self Priming Monoblock Pump, 124 ft Max. Head, 3200 LPH (MX-1)
Havells 1 HP Single Phase Self Priming Monoblock Pump, 124 ft Max. Head, 3200 LPH (MX-1) is listed under Monoblock Pump in Water Pumps and Motors on ToolHaat, supplied by Havells. Key specifications include power 1 hp, weight (approx.) 10.62 kg, flow rate 53 lpm, head 38 meter, model no. MX-1. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
Havells 1 HP Single Phase Self Priming Monoblock Pump, 124 ft Max. Head, 3200 LPH (MX-1) specifications
| Power | 1 hp |
|---|---|
| Weight (Approx.) | 10.62 kg |
| Flow Rate | 53 lpm |
| Head | 38 meter |
| Model No. | MX-1 |
| Product Type | Self Priming Monoblock Pump |
| Wattage | 0.75 kW |
| Electricity Connection | Single Phase |
| Operating Voltage Range | 180 to 240 V |
| Max. Working Pressure | 3.8 kg/cm² |
| Operating Water Temperature | Up to 65°C |
| Motor Winding | Copper |
FAQs related to Havells 1 HP Single Phase Self Priming Monoblock Pump, 124 ft Max. Head, 3200 LPH (MX-1)
Is a GST invoice provided for Havells 1 HP Single Phase Self Priming Monoblock Pump, 124 ft Max. Head, 3200 LPH (MX-1) purchases?
+
Yes, every Havells 1 HP Single Phase Self Priming Monoblock Pump, 124 ft Max. Head, 3200 LPH (MX-1) order generates a GST invoice automatically, suitable for input tax credit claims and standard business procurement records.
Can I compare multiple brands of Havells 1 HP Single Phase Self Priming Monoblock Pump, 124 ft Max. Head, 3200 LPH (MX-1) before purchasing?
+
Yes — ToolHaat lists Havells 1 HP Single Phase Self Priming Monoblock Pump, 124 ft Max. Head, 3200 LPH (MX-1) from multiple verified vendors at different price points and specifications, letting you compare motor power, material, and price before a bulk purchase decision.
What if Havells 1 HP Single Phase Self Priming Monoblock Pump, 124 ft Max. Head, 3200 LPH (MX-1) arrives with a manufacturing defect?
+
Contact ToolHaat support with your order ID if Havells 1 HP Single Phase Self Priming Monoblock Pump, 124 ft Max. Head, 3200 LPH (MX-1) shows a manufacturing defect on arrival. Replacement or refund is handled per our returns policy in coordination with the listing vendor.
Does Havells 1 HP Single Phase Self Priming Monoblock Pump, 124 ft Max. Head, 3200 LPH (MX-1) come with a manufacturer warranty?
+
Warranty coverage for Havells 1 HP Single Phase Self Priming Monoblock Pump, 124 ft Max. Head, 3200 LPH (MX-1) varies by brand and is listed on the product page. ToolHaat support can help connect you with the vendor for warranty claims or servicing after your purchase.
How is Havells 1 HP Single Phase Self Priming Monoblock Pump, 124 ft Max. Head, 3200 LPH (MX-1) packaged and delivered to avoid transit damage?
+
Havells 1 HP Single Phase Self Priming Monoblock Pump, 124 ft Max. Head, 3200 LPH (MX-1) is shipped in protective packaging designed for the product’s weight and components. Delivery timelines are shown at checkout based on your location — larger installations may need coordinated delivery scheduling, which our sales team can help arrange.
