Havells · SKU: thwpm854

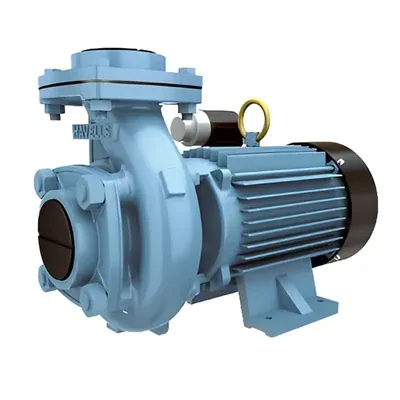

Havells 0.5 HP Single Phase Centrifugal Monoblock Pump, 49 ft Head, 100 LPM, 24 ft Suction Capacity (CMM05)
In Stock
₹6,434₹6,960-8% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Havells |
| Power | 0.5 hp |
| Weight (Approx.) | 11.00 kg |
| Flow Rate | 100 lpm |
| Head | 15 meter |
| Model No. | CMM05 |
| Product Type | Centrifugal Monoblock Pump |
| Wattage | 0.37 kW |
| Electricity Connection | Single Phase |
| Motor Winding | Copper |
| Operating Voltage Range | 180 to 220 Volt |
| Max. Working Pressure | 1.5 kg/cm² (21.335 PSI) |
| High Suction With Self Priming | Up to 7.5 meters (24 feet) |
| Pipe Size (Suction x Delivery) | 25 x 25 mm |
| No Load Speed | 2850 RPM |
| Head Range | 10 to 15 Meter (32 to 49 Feet) |
| Discharge Range | 6000 to 2100 LPH (100 to 35 LPM) |
| Cable Length and Size | 0.21 m & 0.75 sq.mm |
| Insulation | F Class |
| Capacitor | 10 µF |
| Motor Body | FG200 for longer life |
| Motor Stator | Low watt loss stamping |
| Motor Direction of rotating | Anti-clockwise when viewed from drive end |
| Dynamically balanced rotor | Yes |
| Pump Casing | Cast Iron |
| Impeller | Cast Iron |
| Shaft | Stainless Steel (SS-410) |
| Energy Efficient Motor | Motors are with F Class Insulation, which ensures that motor doesn't get burned and works smoothly even at high temperatures. |
| Pump Performance | Higher performance of the pumps. Pumps have higher suction power and give high discharge in its operating range. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Havells 0.5 HP Single Phase Centrifugal Monoblock Pump, 49 ft Head, 100 LPM, 24 ft Suction Capacity (CMM05)
Havells 0.5 HP Single Phase Centrifugal Monoblock Pump, 49 ft Head, 100 LPM, 24 ft Suction Capacity (CMM05) is listed under Monoblock Pump in Water Pumps and Motors on ToolHaat, supplied by Havells. Key specifications include power 0.5 hp, weight (approx.) 11.00 kg, flow rate 100 lpm, head 15 meter, model no. CMM05. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
Havells 0.5 HP Single Phase Centrifugal Monoblock Pump, 49 ft Head, 100 LPM, 24 ft Suction Capacity (CMM05) specifications
| Power | 0.5 hp |
|---|---|
| Weight (Approx.) | 11.00 kg |
| Flow Rate | 100 lpm |
| Head | 15 meter |
| Model No. | CMM05 |
| Product Type | Centrifugal Monoblock Pump |
| Wattage | 0.37 kW |
| Electricity Connection | Single Phase |
| Motor Winding | Copper |
| Operating Voltage Range | 180 to 220 Volt |
| Max. Working Pressure | 1.5 kg/cm² (21.335 PSI) |
| High Suction With Self Priming | Up to 7.5 meters (24 feet) |
