GRITSON · SKU: thwpm515

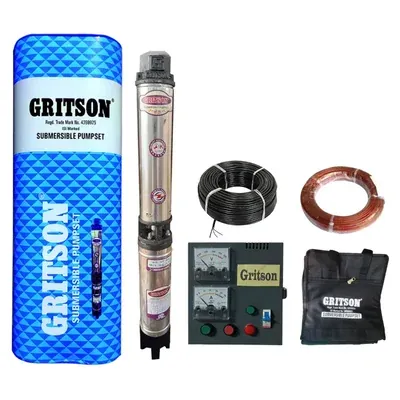

GRITSON 3 HP 15 Stage(4 Inch)V-4 1Phase Water Cooled Submersible Pump With CP & Accessories
In Stock
₹19,948₹27,000-26% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | GRITSON |
| Power | 3 hp |
| Weight (Approx.) | 24 kg |
| Flow Rate | 117 lpm |
| Head | 60 meter |
| Product Type | Submersible Pump |
| Electricity Connection | Single Phase |
| Rated Voltage Range | 160-220 Volt, 50 Hz, AC Power Supply |
| Current Rating | 10 Amp |
| No Of Stages | 15 |
| Cora | 7 |
| Type | V-4 |
| Delivery | 1.5 Inch |
| Max. Head | 60 Meter (180 Feet) |
| Max. Discharge Rate | 7000 LPH (117 LPM) |
| Borewell Size | 100 mm (4 Inch) |
| Outlet Pipe Size | 2 Inch (50.8 mm) |
| Cooling Type | Water Filled |
| Thrust Bearing | Carbon |
| Pump Housing | Stainless Steel |
| Pump Shaft | Stainless Steel |
| Motor Housing | Stainless Steel |
| Motor Shaft | Stainless Steel |
| Motor/Pump Bushes | Gun Metal |
| Impeller | Noryl |
| Diffuser | Noryl |
| Non Return Valve (NRV) | Cast Iron |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About GRITSON 3 HP 15 Stage(4 Inch)V-4 1Phase Water Cooled Submersible Pump With CP & Accessories
GRITSON 3 HP 15 Stage(4 Inch)V-4 1Phase Water Cooled Submersible Pump With CP & Accessories is listed under Submersible Pump in Water Pumps and Motors on ToolHaat, supplied by GRITSON. Key specifications include power 3 hp, weight (approx.) 24 kg, flow rate 117 lpm, head 60 meter, product type Submersible Pump. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
GRITSON 3 HP 15 Stage(4 Inch)V-4 1Phase Water Cooled Submersible Pump With CP & Accessories specifications
| Power | 3 hp |
|---|---|
| Weight (Approx.) | 24 kg |
| Flow Rate | 117 lpm |
| Head | 60 meter |
| Product Type | Submersible Pump |
| Electricity Connection | Single Phase |
| Rated Voltage Range | 160-220 Volt, 50 Hz, AC Power Supply |
| Current Rating | 10 Amp |
| No Of Stages | 15 |
| Cora | 7 |
| Type | V-4 |
| Delivery | 1.5 Inch |
FAQs related to GRITSON 3 HP 15 Stage(4 Inch)V-4 1Phase Water Cooled Submersible Pump With CP & Accessories
Does ToolHaat offer installation guidance for GRITSON 3 HP 15 Stage(4 Inch)V-4 1Phase Water Cooled Submersible Pump With CP & Accessories?
+
Installation requirements vary by GRITSON 3 HP 15 Stage(4 Inch)V-4 1Phase Water Cooled Submersible Pump With CP & Accessories model — check the product listing for included documentation. For larger installations, our sales team can help connect you with the vendor for on-site guidance where available.
Does GRITSON 3 HP 15 Stage(4 Inch)V-4 1Phase Water Cooled Submersible Pump With CP & Accessories come with a manufacturer warranty?
+
Warranty coverage for GRITSON 3 HP 15 Stage(4 Inch)V-4 1Phase Water Cooled Submersible Pump With CP & Accessories varies by brand and is listed on the product page. ToolHaat support can help connect you with the vendor for warranty claims or servicing after your purchase.
Is a GST invoice provided for GRITSON 3 HP 15 Stage(4 Inch)V-4 1Phase Water Cooled Submersible Pump With CP & Accessories purchases?
+
Yes, every GRITSON 3 HP 15 Stage(4 Inch)V-4 1Phase Water Cooled Submersible Pump With CP & Accessories order generates a GST invoice automatically, suitable for input tax credit claims and standard business procurement records.
Are spare parts and accessories for GRITSON 3 HP 15 Stage(4 Inch)V-4 1Phase Water Cooled Submersible Pump With CP & Accessories available separately?
+
Yes — related accessory subcategories on ToolHaat list compatible spares and fittings for GRITSON 3 HP 15 Stage(4 Inch)V-4 1Phase Water Cooled Submersible Pump With CP & Accessories, so replacement parts can be sourced without needing to buy a full new unit.
Can contractors or dealers set up recurring bulk orders for GRITSON 3 HP 15 Stage(4 Inch)V-4 1Phase Water Cooled Submersible Pump With CP & Accessories?
+
Yes — contractors and dealers regularly use ToolHaat for recurring GRITSON 3 HP 15 Stage(4 Inch)V-4 1Phase Water Cooled Submersible Pump With CP & Accessories procurement. Contact our sales team to set up a standing order arrangement with consistent bulk pricing.
